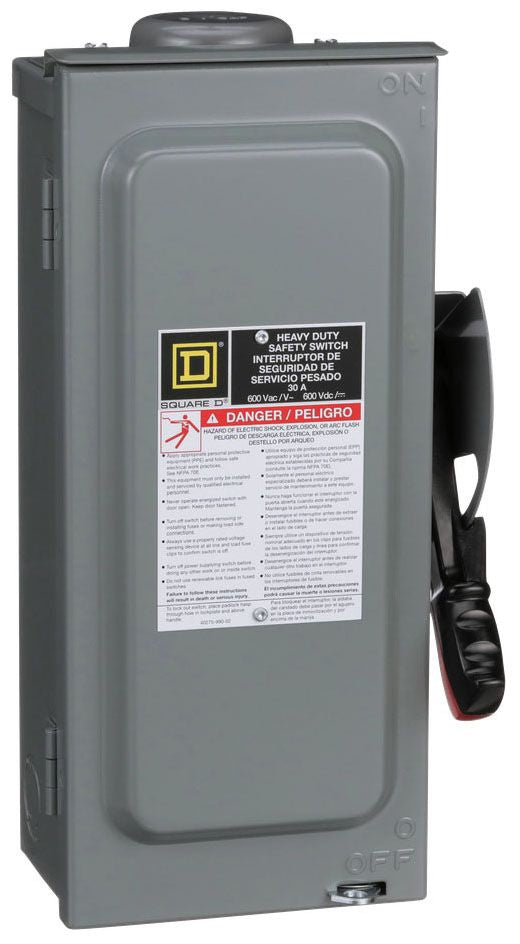

Square D HU361NRB Switch Not Fusible Heavy Duty 30A 3P Nema3R/Neutral

Product Description

Square D HU361NRB is a switch designed for heavy-duty applications. It has a non-fusible feature and is rated at thirty amperes with three poles. The NEMA three R enclosure protects the switch in outdoor conditions. This switch's dimensions measure seven point five five inches in width, four point eight six inches in depth, and fourteen point eight eight inches in height. The unit is made of galvanized steel, ensuring durability and reliability.

• UL approval for safety standards.
• Supports wire sizes from fourteen to six AWG for copper and twelve to six AWG for aluminum.
• Suitable for applications requiring a maximum of thirty horsepower at six hundred volts.

Product Highlights

This heavy-duty switch serves as a practical solution for controlling electrical circuits in various environments. It is designed to withstand harsh conditions while maintaining safety and functionality.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Brand: Square D Co.

Technical Specifications

• Current Rating: 30 Ampere
• Voltage Rating: 600 V AC, 250/600 V DC
• Number of Poles: 3
• Number of Wires: 4
• Enclosure Type: NEMA 3R
• Enclosure Material: Steel
• Finish: Galvannealed
• Fuse Provision: Non-Fusible
• Power Rating: 5 HP at 240 V AC 1-Phase, up to 30 HP at 600 V AC 3-Phase
