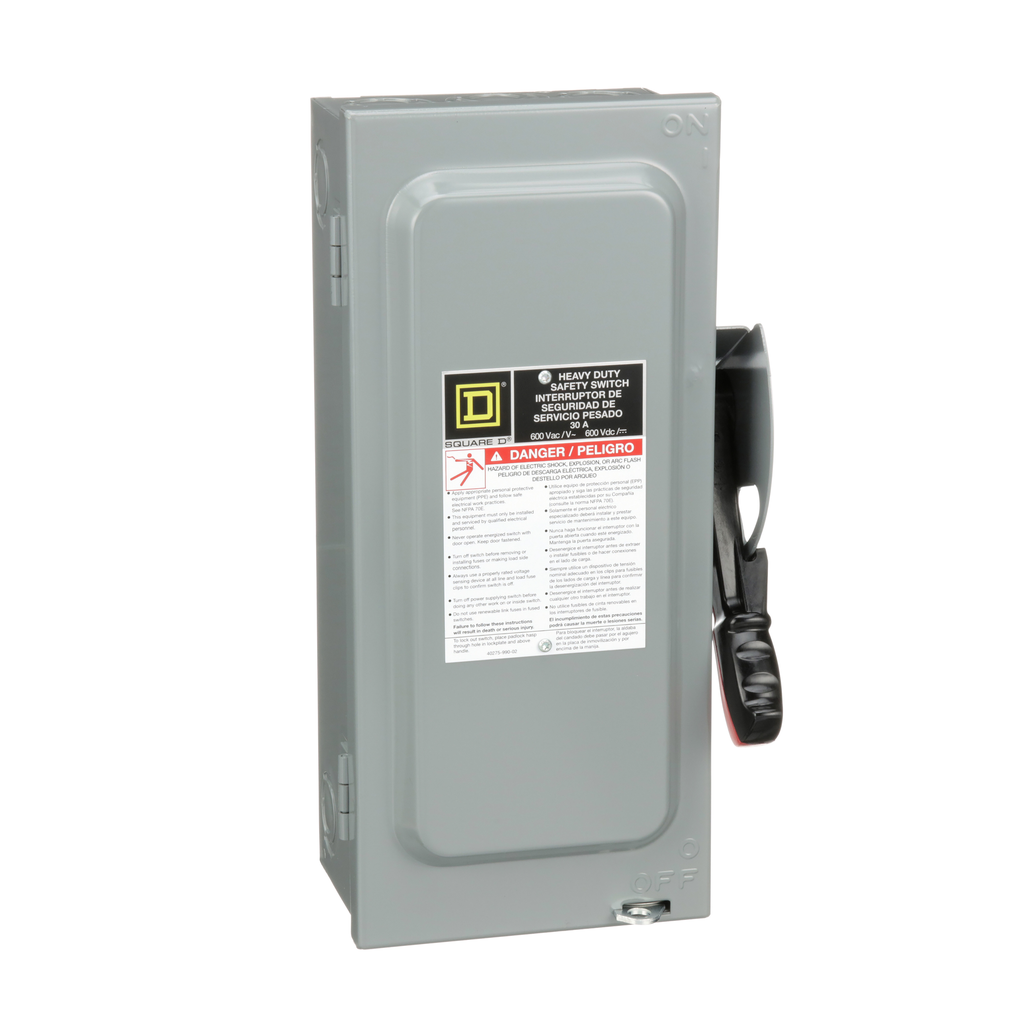

Square D HU361 Heavy Duty Safety Switch 600VAC 30 Amp 3-Pole Non-Fusible

Product Description

The Square D by Schneider Electric brand Heavy Duty Safety Switch, model HU361, is made for reliable performance in tough conditions. This safety switch has a rated current of thirty amps and operates at voltage ratings of six hundred VAC/DC. It features a three-pole design and complies with UL standards.

• Suitable for heavy-duty applications
• Surface mounted with a robust steel enclosure
• Short circuit current rating of two hundred kA

Product Highlights

This switch is designed with a quick-make, quick-break operating mechanism. It includes a dual cover interlock for safety and a color-coded handle for easy operation. The unit has no neutral installed and is UL listed with a NEMA one rating for protection.

Product Information

Standard Information

• Brand: Square D
• MPN: HU361

Technical Specifications

• Catalog Number: HU361
• Weight: 8.82 lb
• Dimensions: 4.87 in (depth) x 7.55 in (width) x 14.6 in (height)
• Current Rating: 30 A
• Voltage Rating: 600 V AC/DC
• Number of Poles: 3
• Enclosure Rating: NEMA 1
• Mounting Type: Surface
• Warranty: 18 months
