Product Description

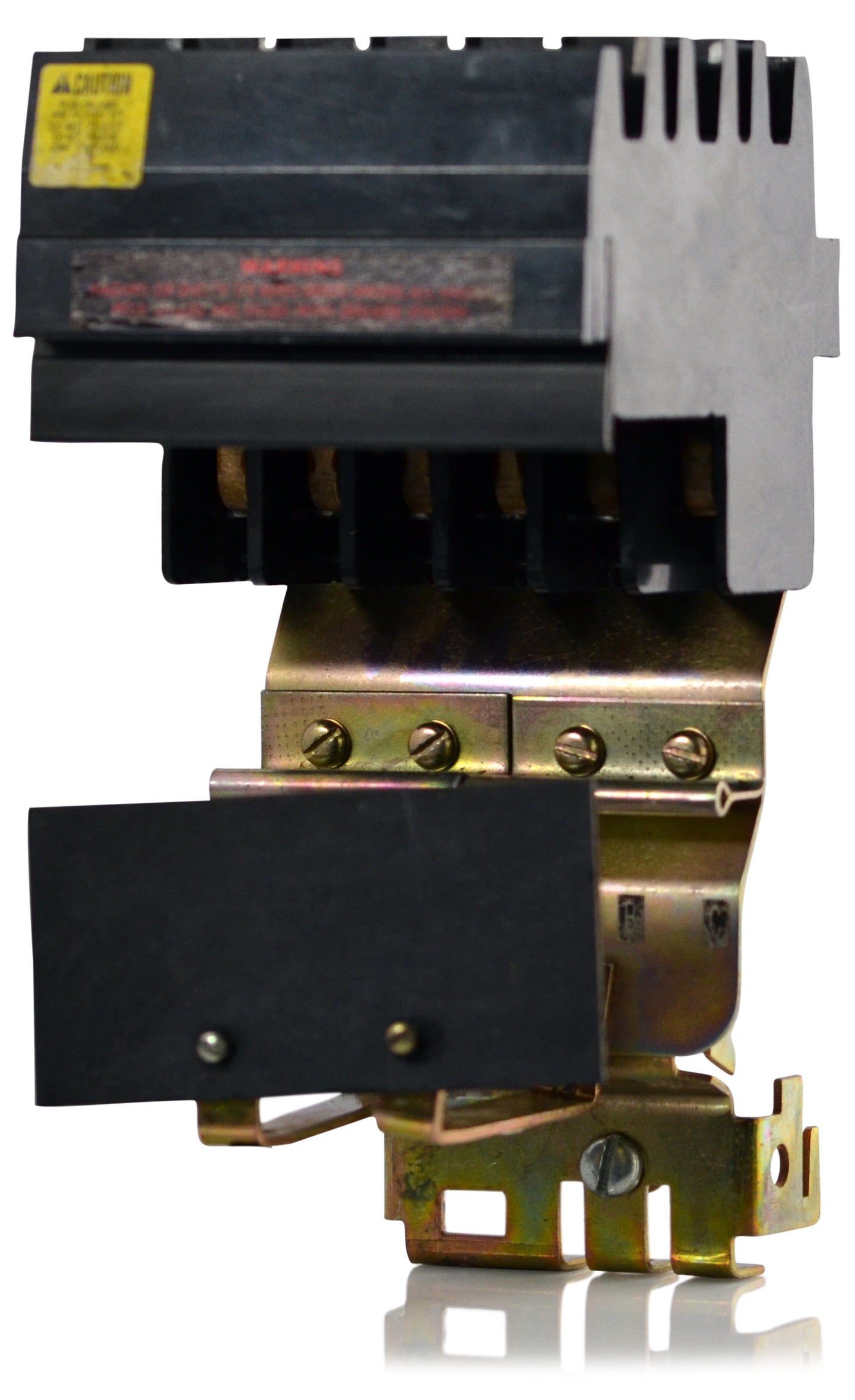

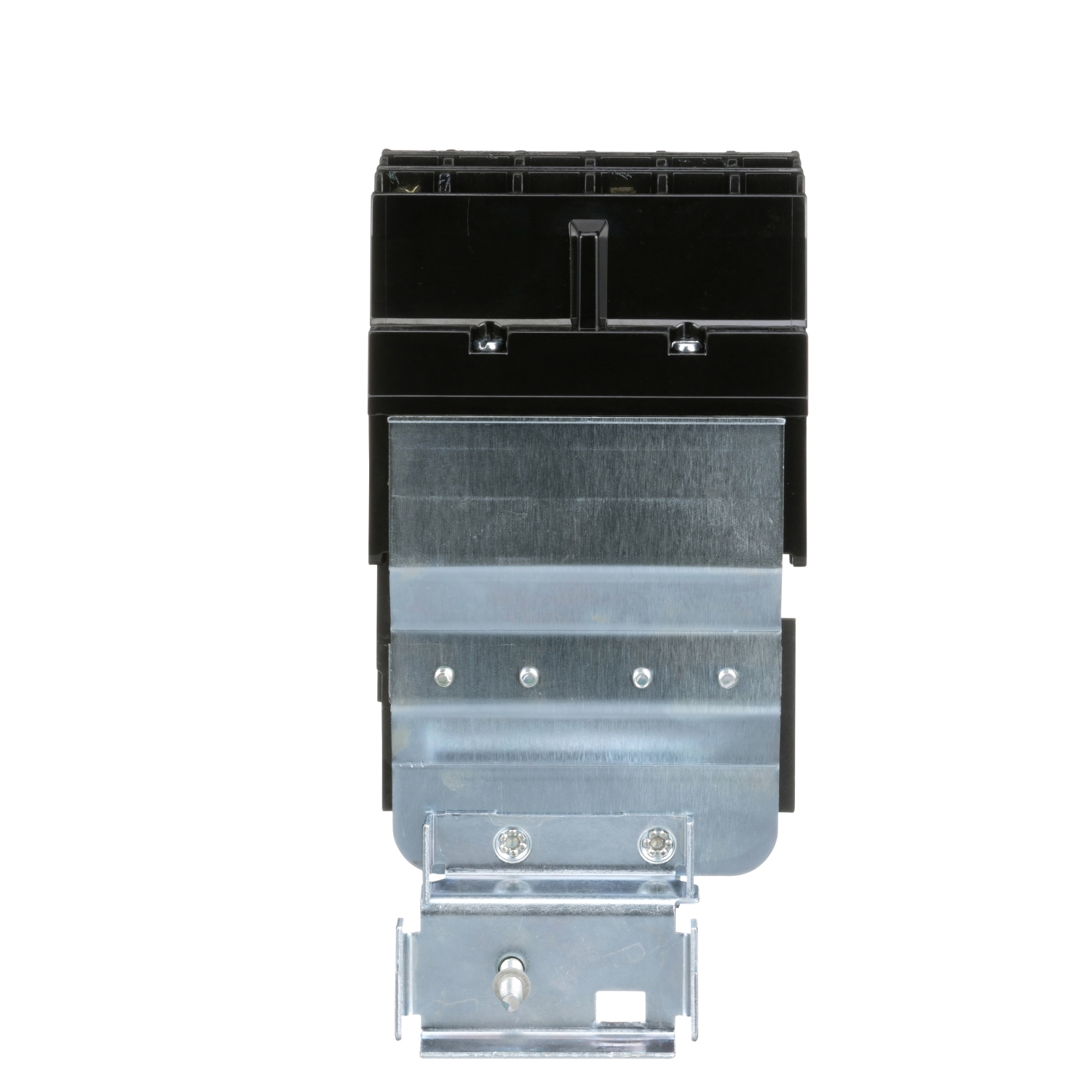

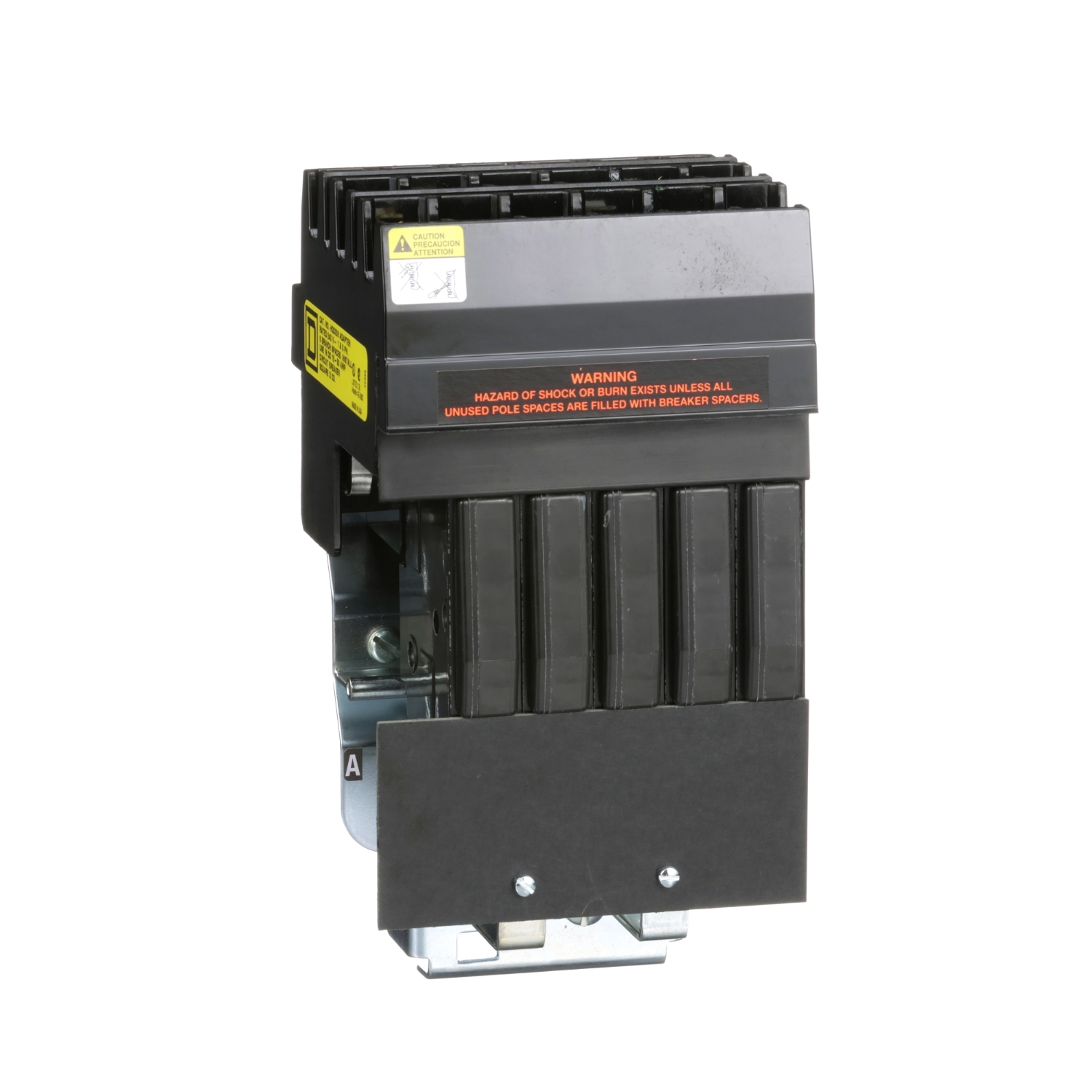

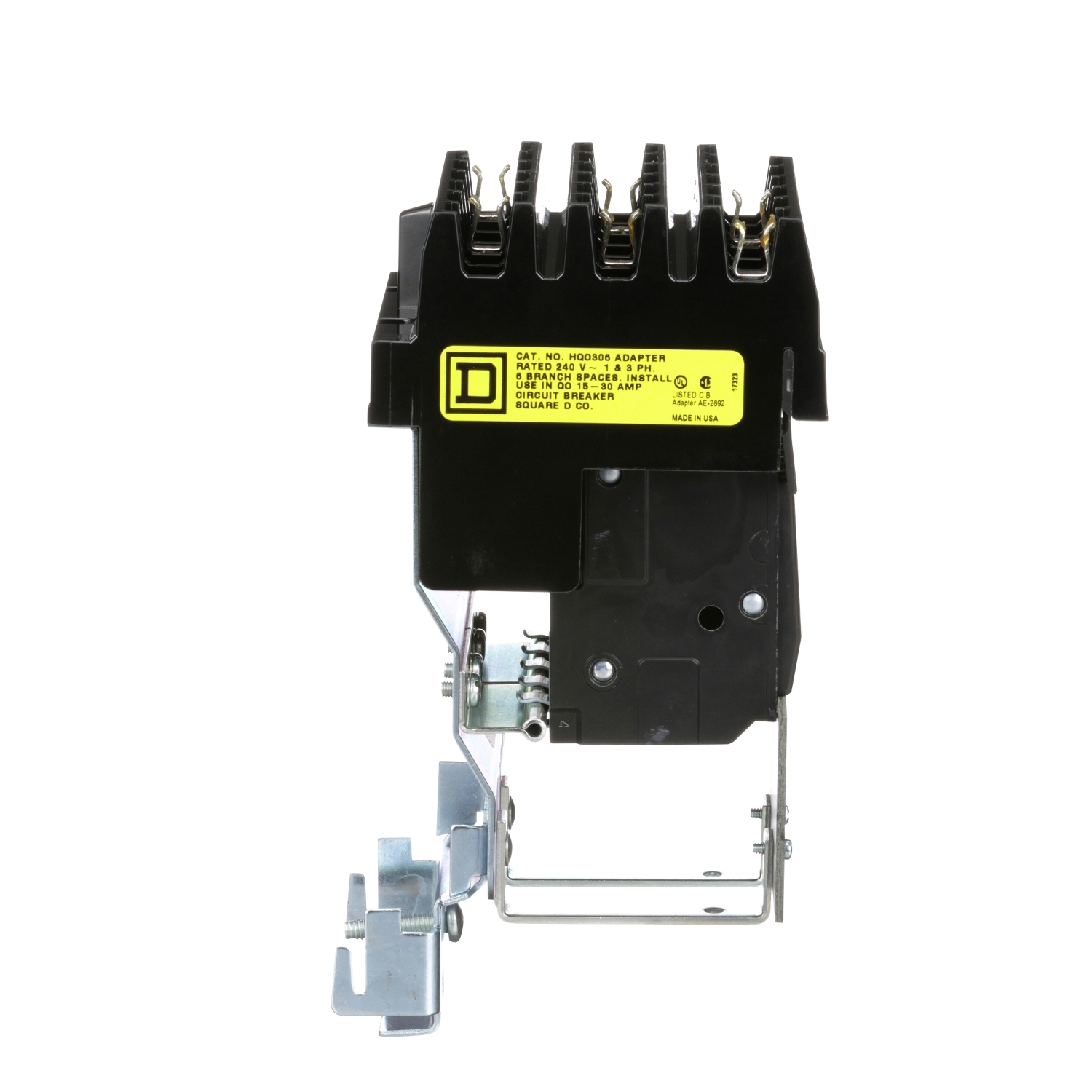

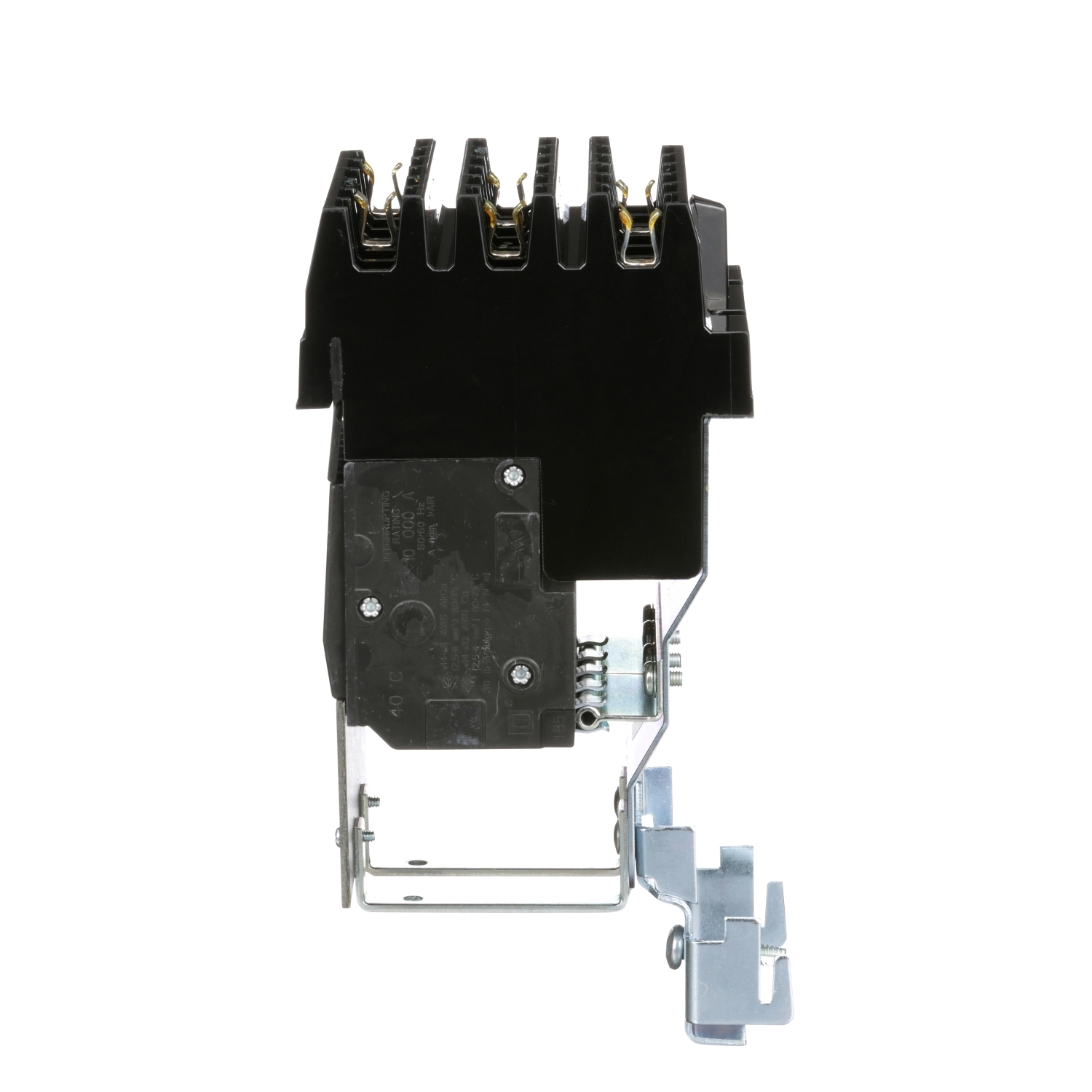

The Square D HQO306 distribution panel is for use on AC or DC systems. This I Line circuit breaker power distribution panelboard can provide combinations of different AC and DC voltages, 1 or 3 phase systems, and 2 to 4 wire circuits. This distribution panel is rated at 30 A, 3 pole, 25 kA, and 6 spaces.
- Suitable for AC or DC systems
- Can be used with 1 or 3 phase systems
- Can be used with 2 to 4 wire circuits
- Rated at 30 A, 3 pole, 25 kA, and 6 spaces
Product Highlights
The Square D HQO306 distribution panel is rated at 240 VAC, 30 Amp and has 6 spaces.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: HQO306
-
Country of Origin: United States
Technical Specifications
-
Type: DISTRIBUTION PANEL
-
Brand: Square D
-
Current: 30 Amp
-
Voltage: 240 Volt
-
Amperage: 30 Amp
-
Enclosure: I-LINE PANEL
-
Sub Brand: QO
-
Wire Size: AWG 14...AWG 10 copper or aluminium
-
Applications: FOR I-LINE PANELBOARDS
-
Conductor Size: 14-10 AWG
-
Number of Phases: 1 Phase
-
Number of Spaces: 6
-
Country of Origin: USA
-
Line Rated Current: 30 A
-
Circuit Breaker Type: QO
-
Operating Temperature: -5 degrees C || 40 degrees C
-
Short Circuit Current: 25 kA
-
Catalog Number: HQO306
-
Manufacturer: Schneider Electric
-
Made in USA: Yes
-
Phase: 1
-
Poles: 3
-
Series: QO
-
Approval: UL, CSA
-
Connection Type: AWG 14, AWG 10 Copper Or Aluminium
-
Wire Gauge: AWG 14, AWG 10 Copper or Aluminium
-
For Use With: For I-Line Panelboards, I-line Panel, QO, QO Adapter for I-Line
-
Temperature Rating: -5 °C To 40 °C
-
Mpn: HQO306
-
Upc: 785901649601
-
Gtin: 785901649601
-
Accessory Type: Distribution Panel
-
UNSPSC: 39121301
-
Family / Style: Homeline
-
Standards: California Proposition 65
-
[Ue] Rated Operational Voltage: 240 V AC
-
Awg Gauge: AWG 14...AWG 10 copper or aluminium
-
Phase Connection: ABC
