Product Description

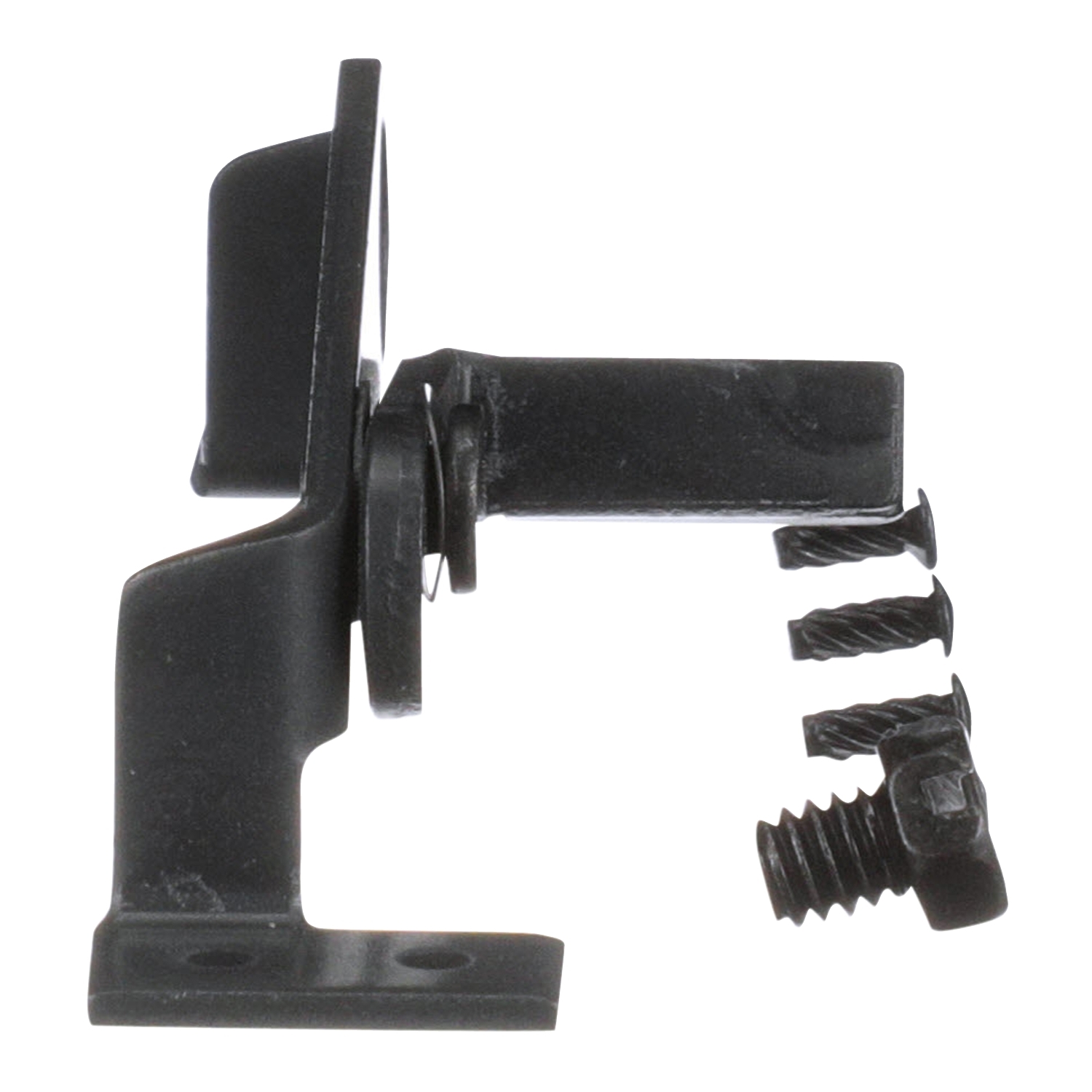

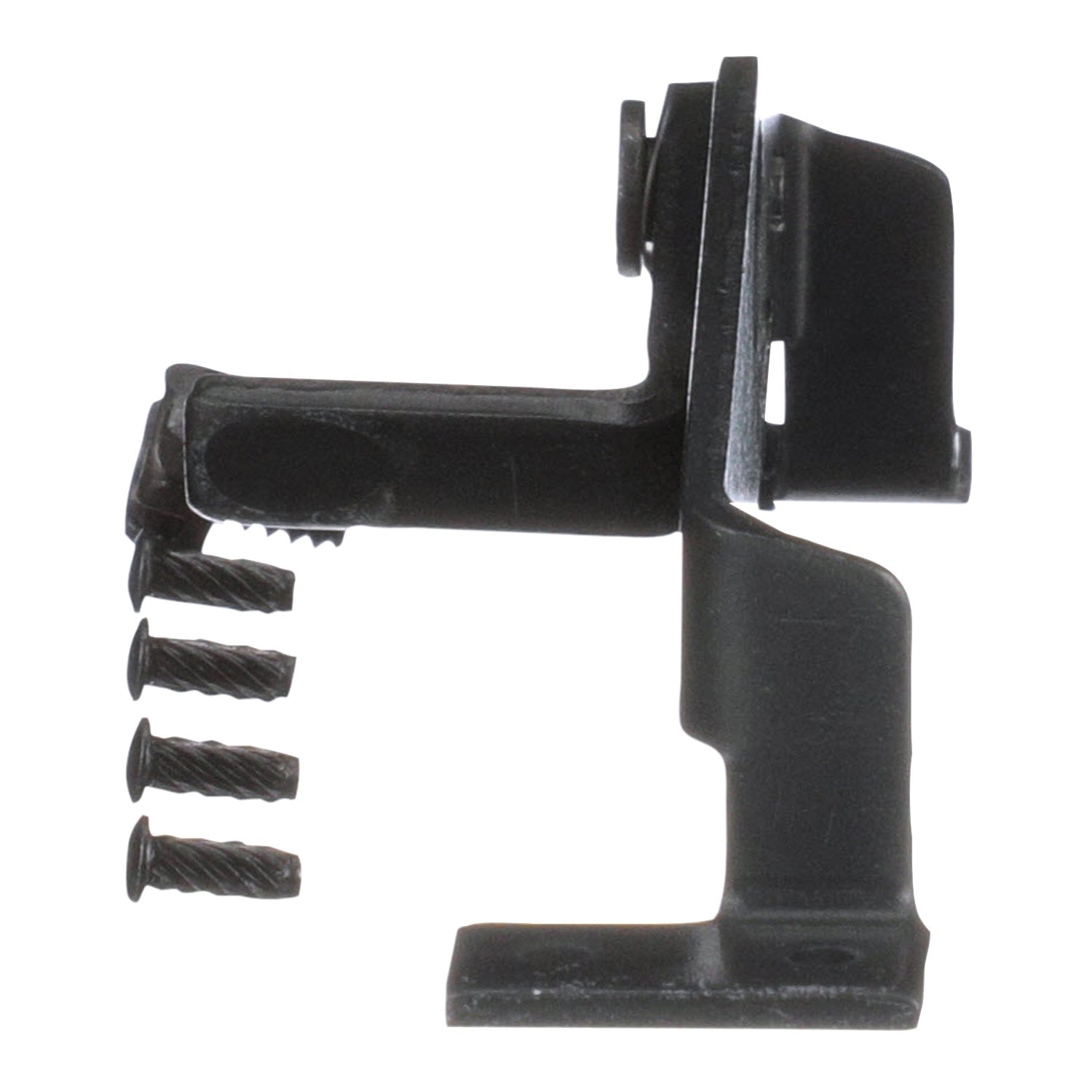

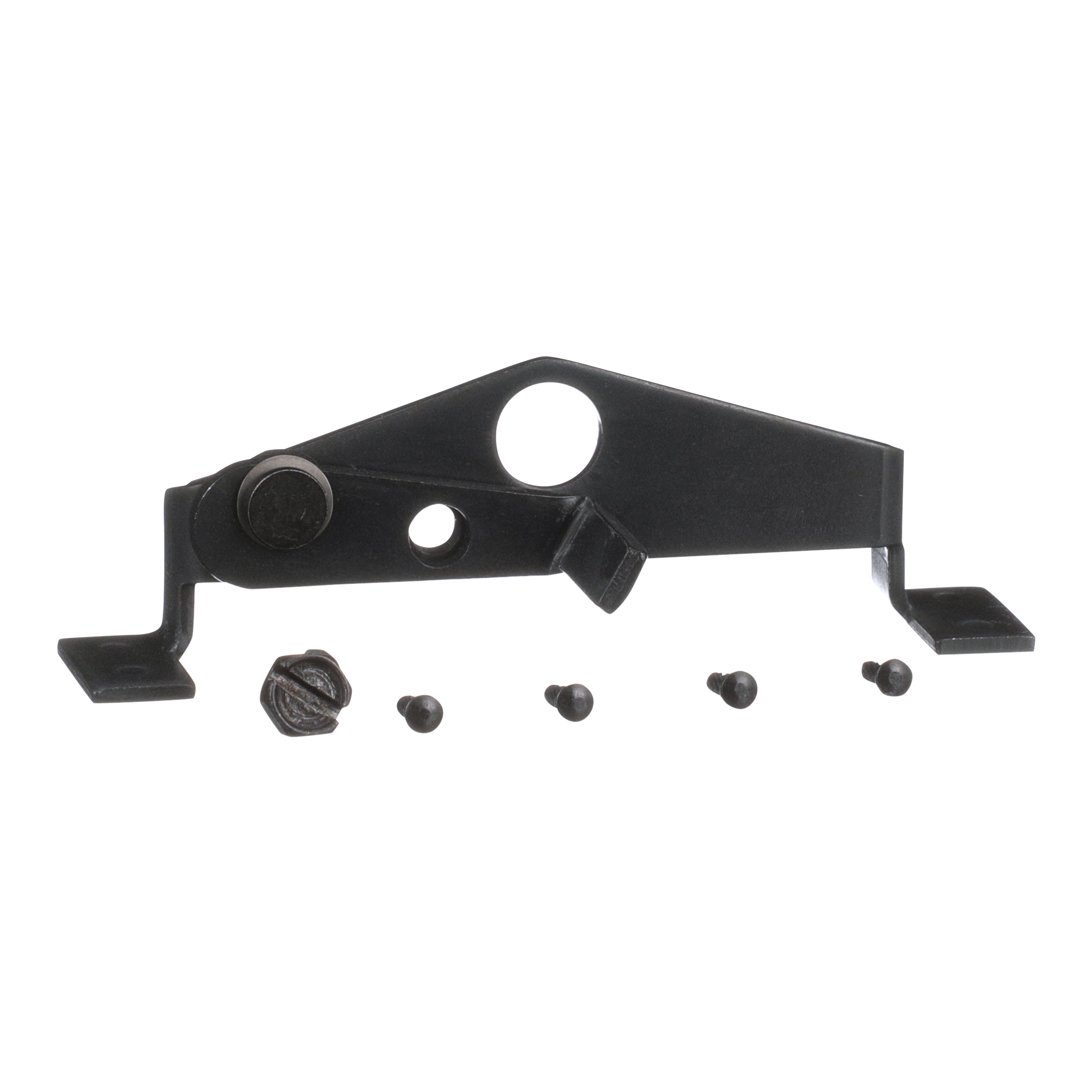

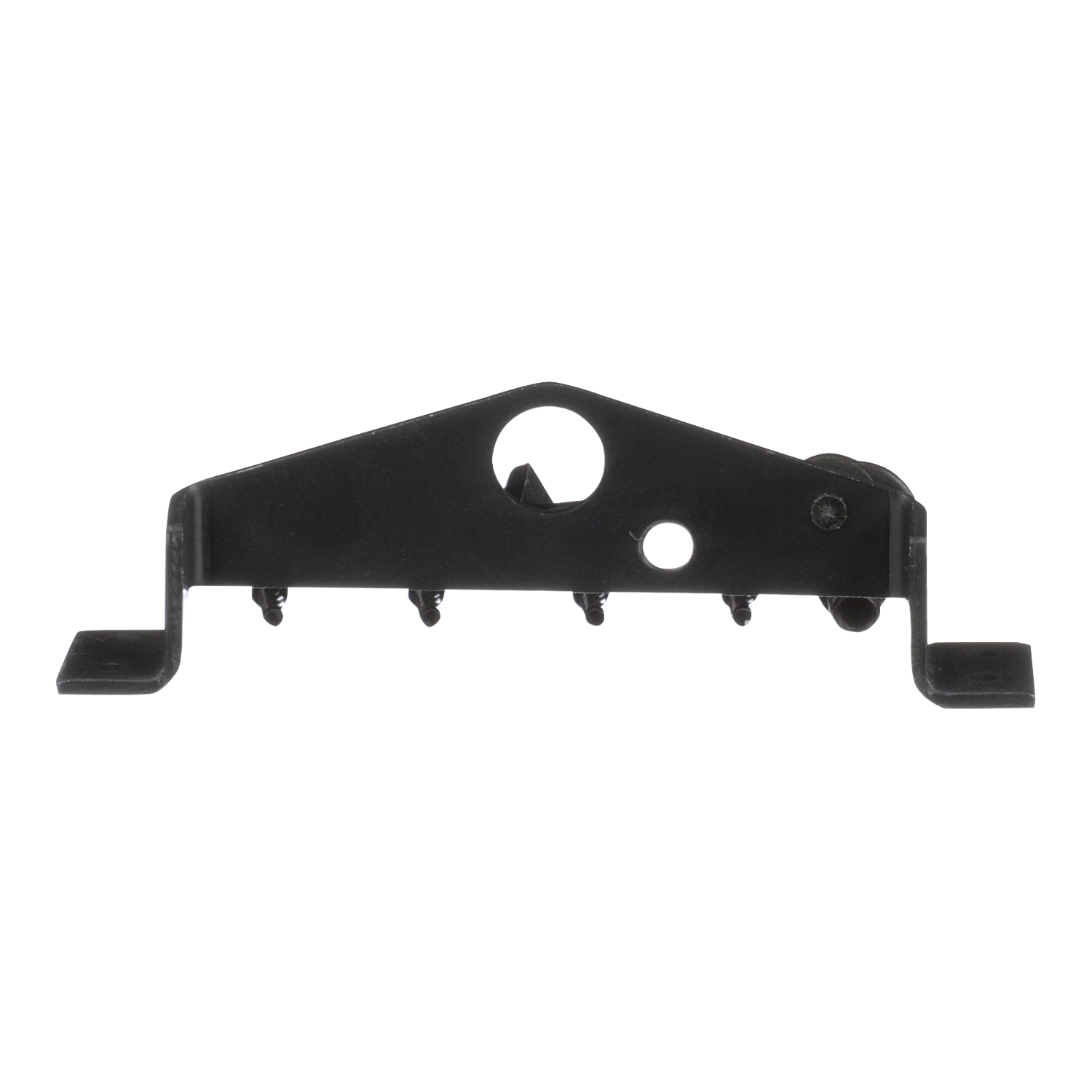

The Square D HPALM is a padlock attachment designed to lock a circuit breaker handle in a set position, either on or off. This PowerPacT H padlock attachment complies with UL, CSA, and IEC standards and is designed for a circuit breaker type. It enhances safety by preventing unauthorized or accidental operation of the circuit breaker.
- Padlock attachment to lock a circuit breaker handle
- Complies to UL, CSA, and IEC standards
- Locks the breaker into a set position, on or off
Product Highlights
The Square D HPALM is a reliable solution for securing circuit breakers, preventing unintended operation and ensuring safety in electrical systems.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: HPALM
-
Country of Origin: United States
Technical Specifications
-
Type: Padlocking device
-
Brand: Square D
-
Applications: PADLOCKING
-
Certifications: CSA,IEC,UL Listed
-
Catalog Number: HPALM
-
Manufacturer: Schneider Electric
-
Country of Origin: United States
-
Made in USA: Yes
-
Application: circuit breaker
-
UPC: 785901252696
-
GTIN: 00785901252696
-
Item Type: Padlocking device
-
RoHS URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423260641&lang=en-us
-
Number of Poles: 2/3
-
Locking Provision: On/Off
-
Used On: LA/LH/MA/ME/MH/MX/Q4 Series Circuit Breaker
-
Approval: UL, CSA, IEC
-
Product Destination: Handle
-
Product Or Component Type: padlocking device
-
Locking Options Description: Padlocking device
-
Net Weight: 5 lb
-
Product Certifications: UL Listed || IEC || CSA
-
IGCC: 4813
-
Family group: DISTRIBUTION EQUIPMENT
-
Item [Specifications]: Handle Padlock Attachment
-
Features [Specifications]: Mercury Free
-
Standards [Specifications]: UL Listed || IEC || CSA
-
Application [Specifications]: handle
-
For Use With [Specifications]: Square D LA, LH, Q4, MA, ME, MH, MX Circuit Breakers
-
Product Type [Specifications]: Handle Padlock Attachment
-
Accessory Type [Specifications]: Handle Padlock Attachment
-
Locking Features [Specifications]: Padlock
-
Locking Location [Specifications]: Breaker
-
Suitable For Use With: PowerPact 2 or 3-Poles H-Frame Molded Case Circuit Breaker, PowerPact(TM) 2 or 3-Poles H-Frame Molded Case Circuit Breaker, PowerPact® 2 or 3-Poles H-Frame Molded Case Circuit Breaker
-
UNSPSC: 39121601
-
Numeric ID: 2510416
-
Overview: Handle Padlock Attachment
-
ECCN: EAR99
-
Use With: LA, LH, Q4, MA, MH, ME and MX-Frame Circuit Breakers
