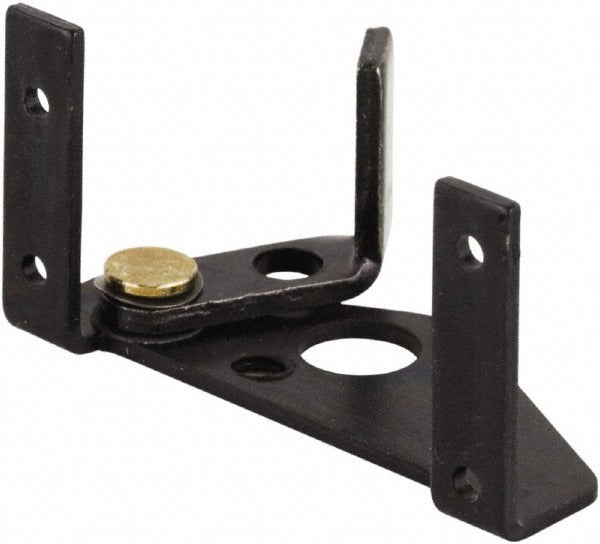

Square D HPAFYQ Circuit Breaker Padlock Device

Product Description

The SQUARE D HPAFYQ is a circuit breaker padlock device designed to secure a breaker in the open or locked-off position. It attaches to compatible PowerPact circuit breakers and provides a physical lockout point for a standard padlock shackle. Electricians use this device during lockout/tagout (LOTO) procedures to prevent accidental re-energization of a circuit while maintenance or service work is in progress. The HPAFYQ measures 4.5 inches in length, 2.8 inches in width, and 1 inch in height, and weighs approximately 0.09 pounds.

This padlock device is suited for commercial and industrial electrical panel applications where LOTO compliance is required. It is installed directly on PowerPact series circuit breakers and is a standard accessory used by licensed electricians and maintenance personnel to meet lockout/tagout safety requirements on electrical distribution equipment.

Key Features

• Designed specifically for use with PowerPact circuit breakers as a lockout accessory
• Accepts a standard padlock shackle to secure breaker in the off position
• Compact form factor: 4.5 x 2.8 x 1 inches for direct breaker-mounted installation
• Lightweight at 0.09 pounds for easy handling during panel work
• Supports OSHA and NFPA 70E lockout/tagout compliance procedures

Compatibility

Designed for use with PowerPact series circuit breakers as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician following applicable NEC and NFPA 70E requirements. De-energize and verify absence of voltage on the circuit before attaching or removing the padlock device. The device mounts directly to the breaker handle mechanism and requires no special tools. Always follow your facility lockout/tagout program when using this device for electrical isolation.
