Square D HOMT3020 1-Pole 30/20 Amp 120/240 Volt Plug-On Thermal Magnetic Miniature Circuit Breaker

Product Description

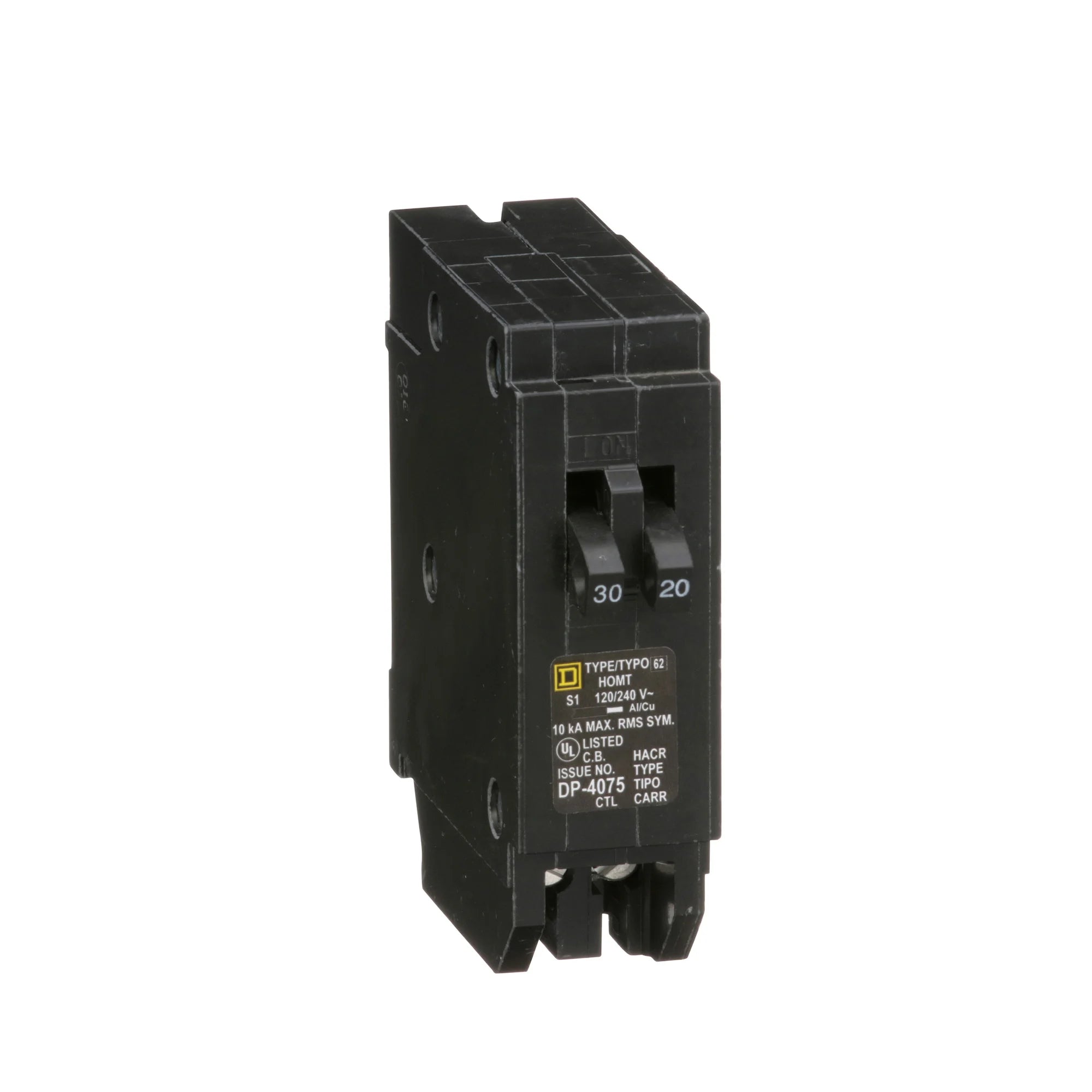

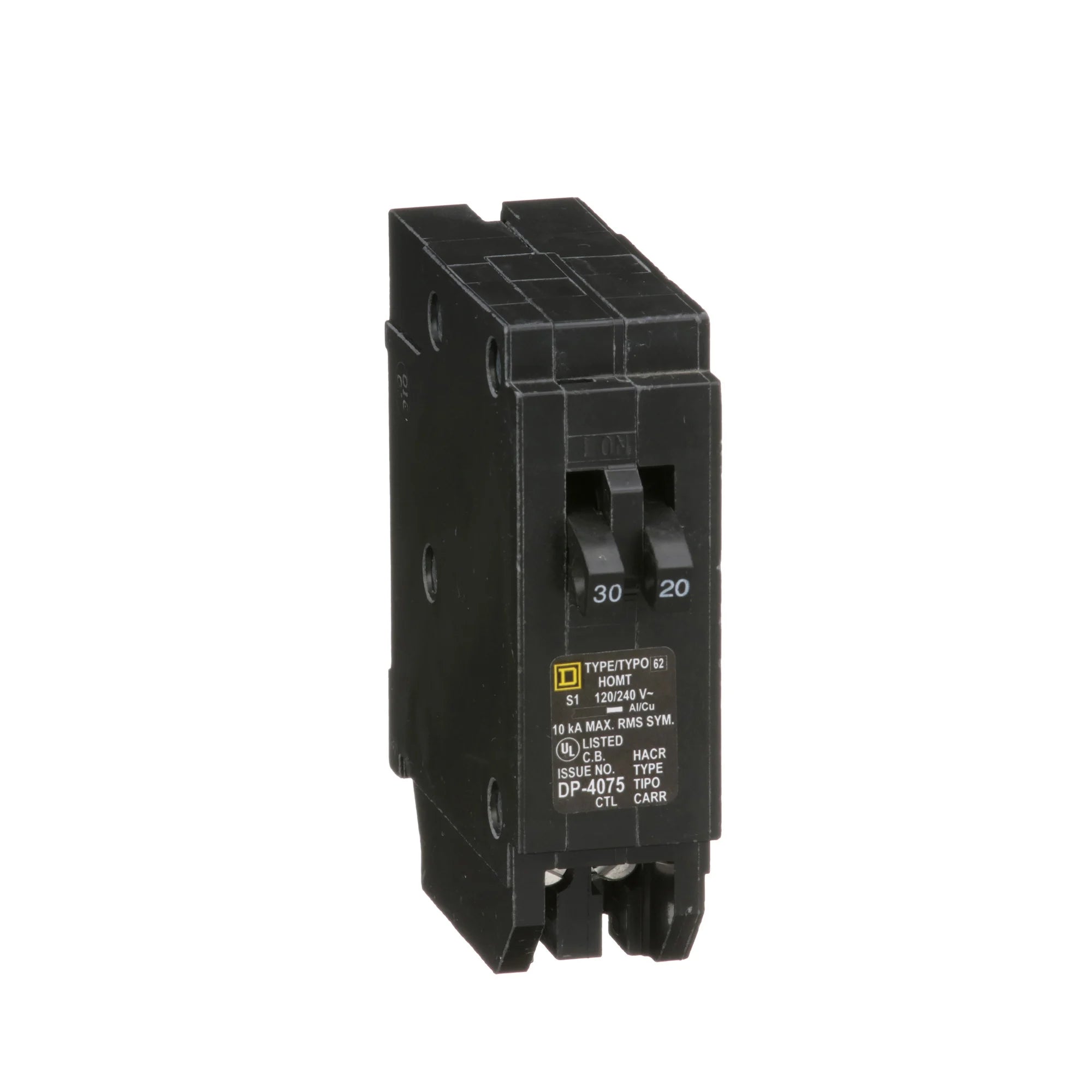

The Square D HOMT3020 is a miniature circuit breaker that provides essential circuit protection for electrical systems. It is designed to fit into Homeline load centers, ensuring safe and reliable operation. This model features two single pole thermal magnetic circuit breakers in a tandem design, occupying just one pole space. The breaker ratings are 30 Amps and 20 Amps at 120/240 Volts, with a breaking capacity of 10 kA.

• Safety: UL Listed for reliable circuit protection
• Installation: Plug-in design for quick setup
• Compatibility: Accepts wire sizes from 14 AWG to 8 AWG copper or aluminum

Product Highlights

This tandem circuit breaker utilizes advanced thermal magnetic technology to enhance electrical safety, making it suitable for various applications including residential and light commercial usage.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOMT3020
• Voltage Rating: 120/240 Volt
• Current Rating: 20 Amp
• Height: 3.13 inches
• Width: 1.00 inches
• Depth: 2.98 inches
• Mounting Type: Plug-in
• Short Circuit Current: 10 kA
• Wire Size Compatibility: 14-8 AWG
• Country of Origin: Mexico
• Warranty: Lifetime
• Cross Reference Products: Eaton BD2030, Eaton BD3020, ITE PCB2030
