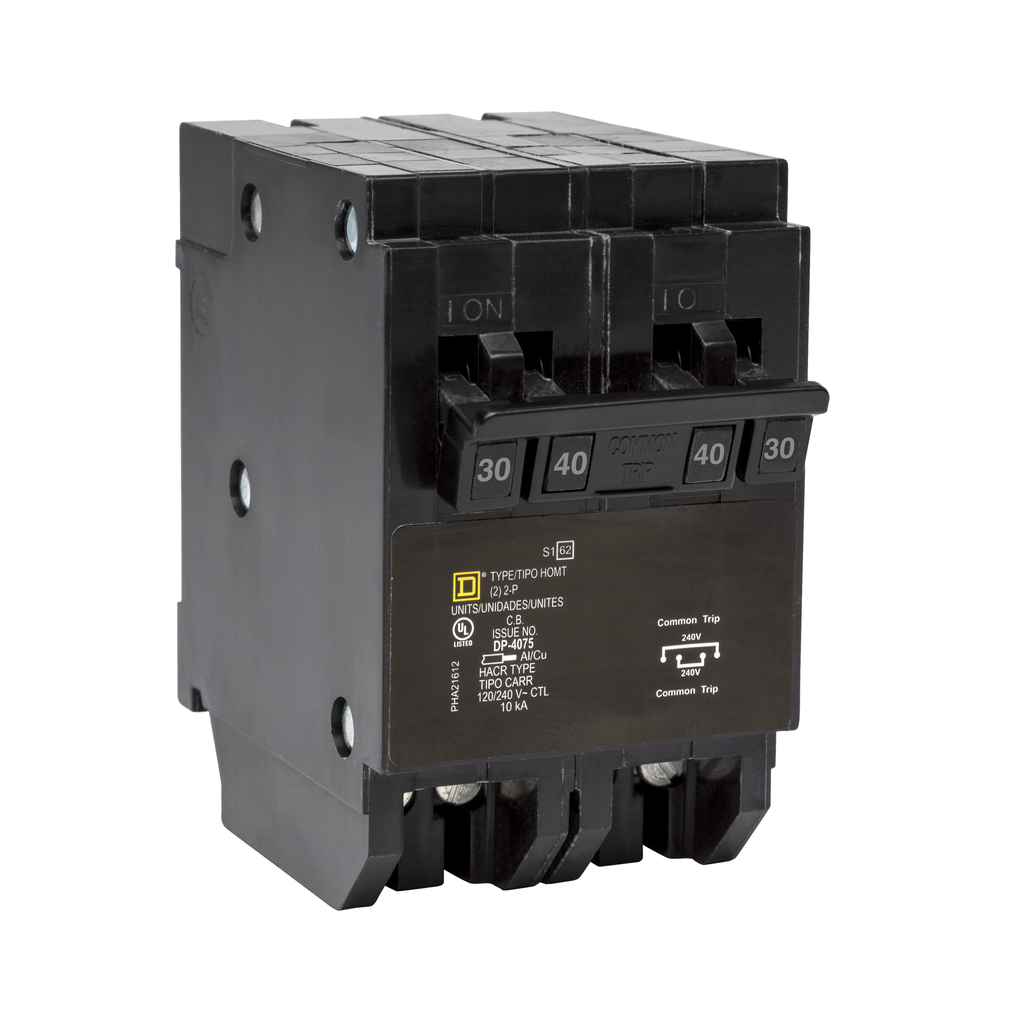

Square D HOMT230240 Quad Tandem Mini Circuit Breaker 120/240VAC

Product Description

Square D presents the HOMT230240, a quad tandem circuit breaker designed for fast installation and effective circuit protection. This Homeline circuit breaker allows you to plug into Homeline load centers. It includes two thermal magnetic circuit breakers in tandem, occupying two HOM pole spaces. One of the two pole breakers is rated thirty Amps at one hundred twenty/ two hundred forty Volts, while the other is rated forty Amps. The breaker has a breaking capacity of ten kA. It accepts copper or aluminum wire with a size from fourteen AWG to eight AWG for the thirty Amp circuit and fourteen AWG to six AWG for the forty Amp circuit.

• Quad tandem circuit design
• Easy plug-in installation
• UL Listed for safety

Product Highlights

Designed for reliable circuit protection, the HOMT230240 is HACR rated and suitable for standard applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: HOMT230240

Technical Specifications

• Width: 1.97 inches
• Height: 3.13 inches
• Depth: 3.29 inches
• Current Rating: 30 Amp, 40 Amp
• Voltage Rating: 120/240 Volt
• Wire Size: 14-8 AWG (30A), 14-6 AWG (40A)
• Number of Poles: 2
• Country of Origin: United States
