Square D HOMT225250 SQD HOMT225250 Quad tandem circuit 25A and 50A at 120/240 VAC 10kA

Product Description

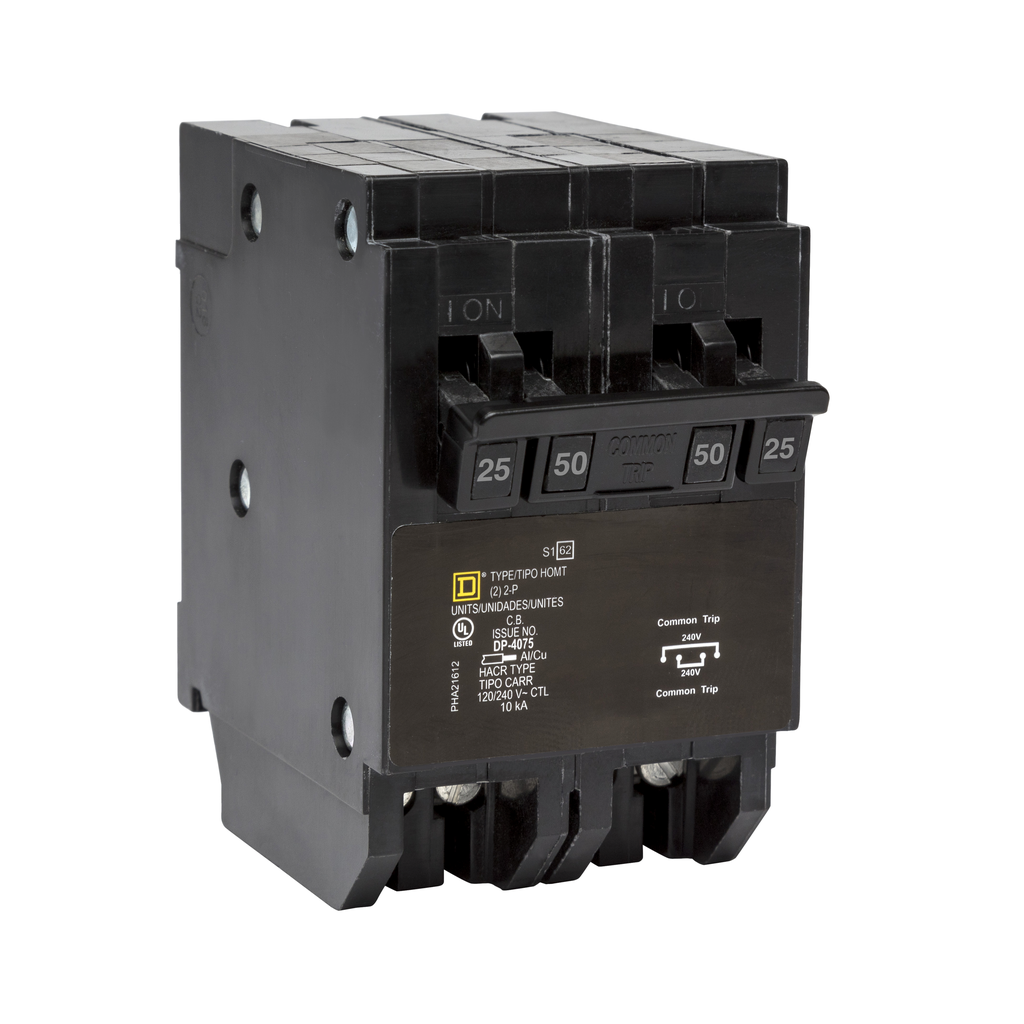

Square D offers the HOMT225250, a quad tandem circuit breaker designed for efficient circuit protection and easy installation. This breaker consists of two thermal magnetic circuit breakers manufactured in tandem. It occupies two HOM pole spaces and features a two-pole breaker rated at twenty-five amps at one hundred twenty to two hundred forty volts, alongside another two-pole breaker rated at fifty amps at the same voltage. This product is HACR rated and suitable for various applications.

• Accepts various wire sizes: 14 AWG to 8 AWG for the 25A breaker and 14 AWG to 6 AWG for the 50A breaker.
• Provides a ten kA breaking capacity for reliable circuit interruption.
• UL Listed for safety and compliance.

Product Highlights

This quad tandem circuit breaker is ideal for both residential and commercial electrical systems, ensuring dependable circuit protection and quick installation.

Product Information

Standard Information

• Brand: Square D
• Country of Origin: United States

Technical Specifications

• Catalog Number: HOMT225250
• Number of Poles: 2 Pole
• Current Rating: 25 Amp, 50 Amp
• Voltage Rating: 120/240 Volt
• Breaking Capacity: 10 kA
• Wire Size: 14-8 AWG for 25A, 14-6 AWG for 50A
• Height: 3.13 Inch
• Width: 1.97 Inch
• Depth: 3.29 Inch
