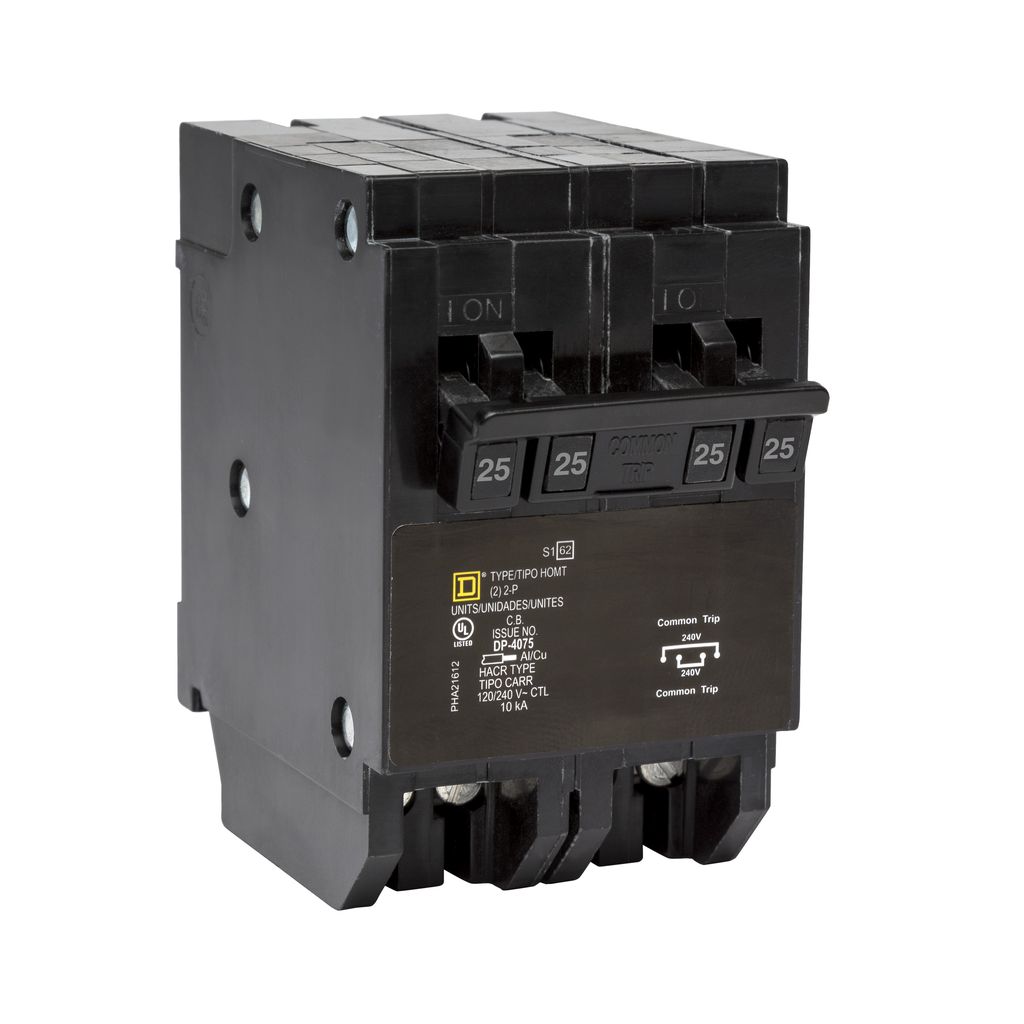

Square D HOMT225225 SQD HOMT225225 Quad Tandem Circuit 25A 120/240VAC

Product Description

The Square D HOMT225225 is a quad tandem circuit breaker designed for overload and short-circuit protection in residential electrical systems. It fits into Homeline load centers and is made to handle electrical distribution efficiently. This product is rated for twenty-five amps at one hundred twenty to two hundred forty volts. Specifically, it integrates two tandem two-pole thermal magnetic circuit breakers that occupy two pole spaces. It is built to deliver reliable service with a breaking capacity of ten thousand amps. The wire sizes compatible with this breaker range from fourteen AWG to eight AWG, allowing for various installation options.

• UL Listed for safety and compliance
• HACR rated for heating, air conditioning, and refrigeration
• Plug-in mounting type for easy installation

Product Highlights

This circuit breaker is compact, measuring three point thirteen inches tall, two inches wide, and two point ninety-eight inches deep. It consists of two pole breakers rated for twenty-five amps at the specified voltages. The HOMT225225 is versatile, accommodating copper and aluminum wire connections.

Product Information

Standard Information

• Catalog Number: HOMT225225
• Brand: Square D
• Country of Origin: Mexico
• Certifications: UL
• Wire Size: AWG 14 - 8

Technical Specifications

• Number of Poles: 2
• Voltage: 120/240 VAC
• Current Rating: 25 A
• Short Circuit Current Rating: 10 kA
• Height: 3.13 inches
• Width: 2 inches
• Depth: 2.98 inches
• Plug-In Type: Yes
