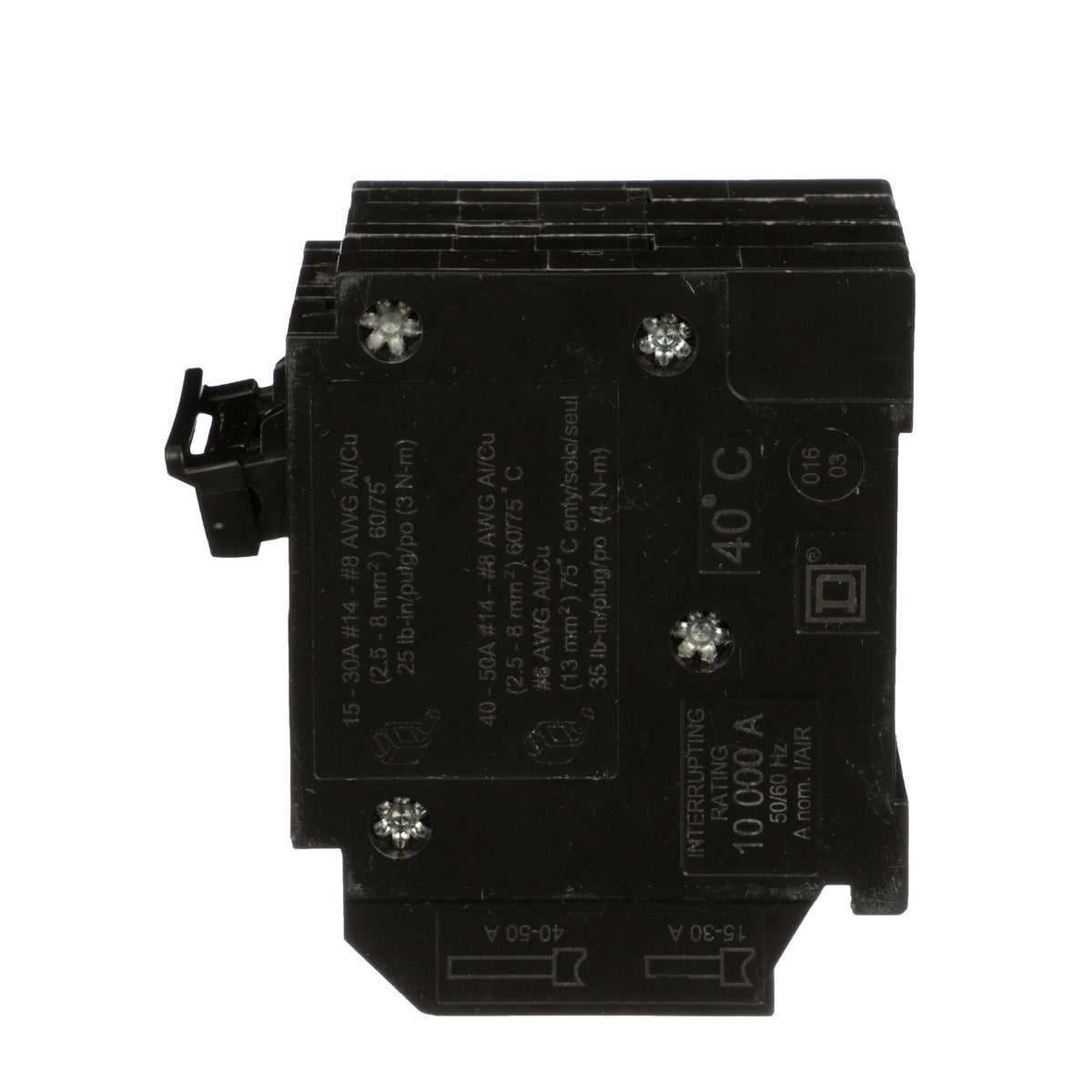

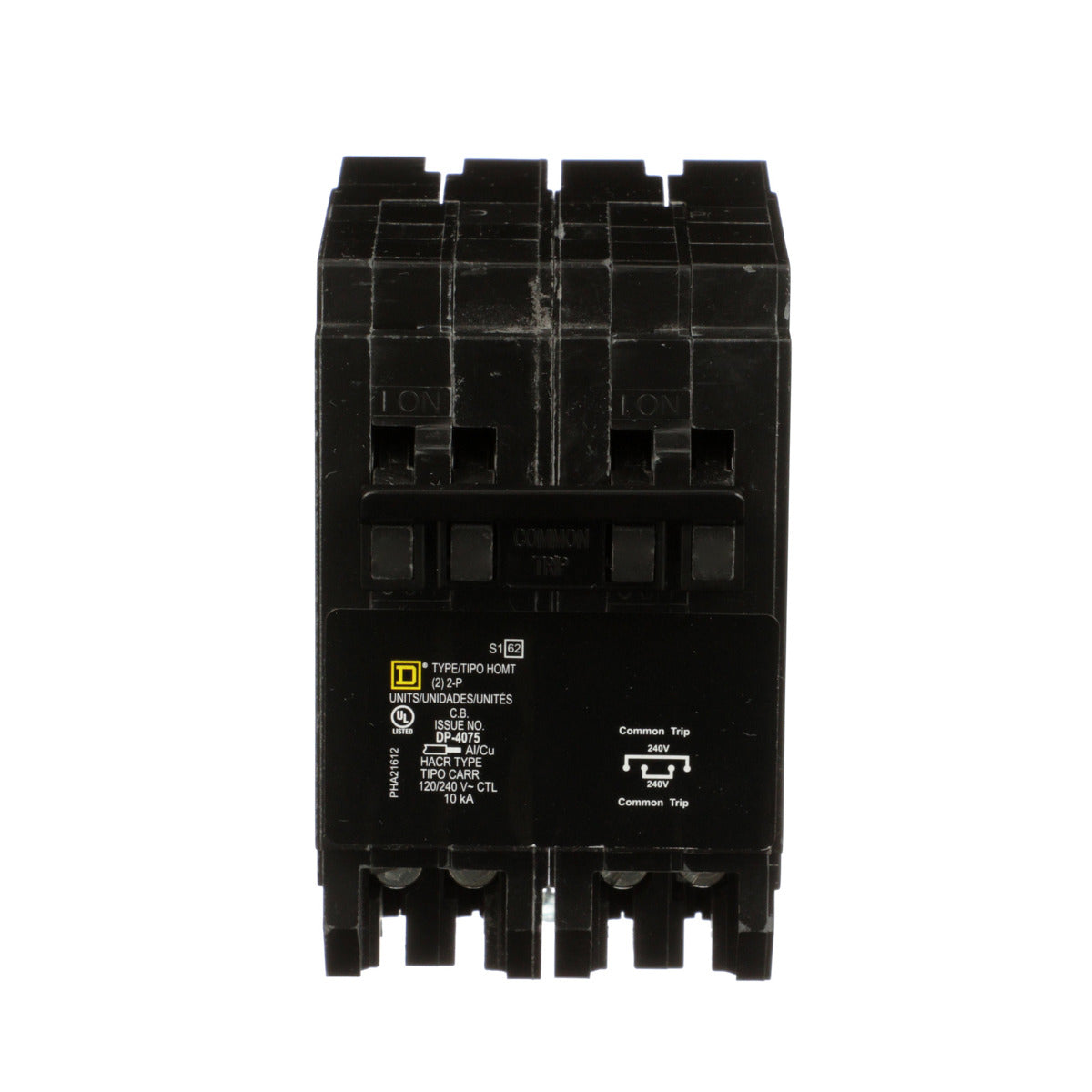

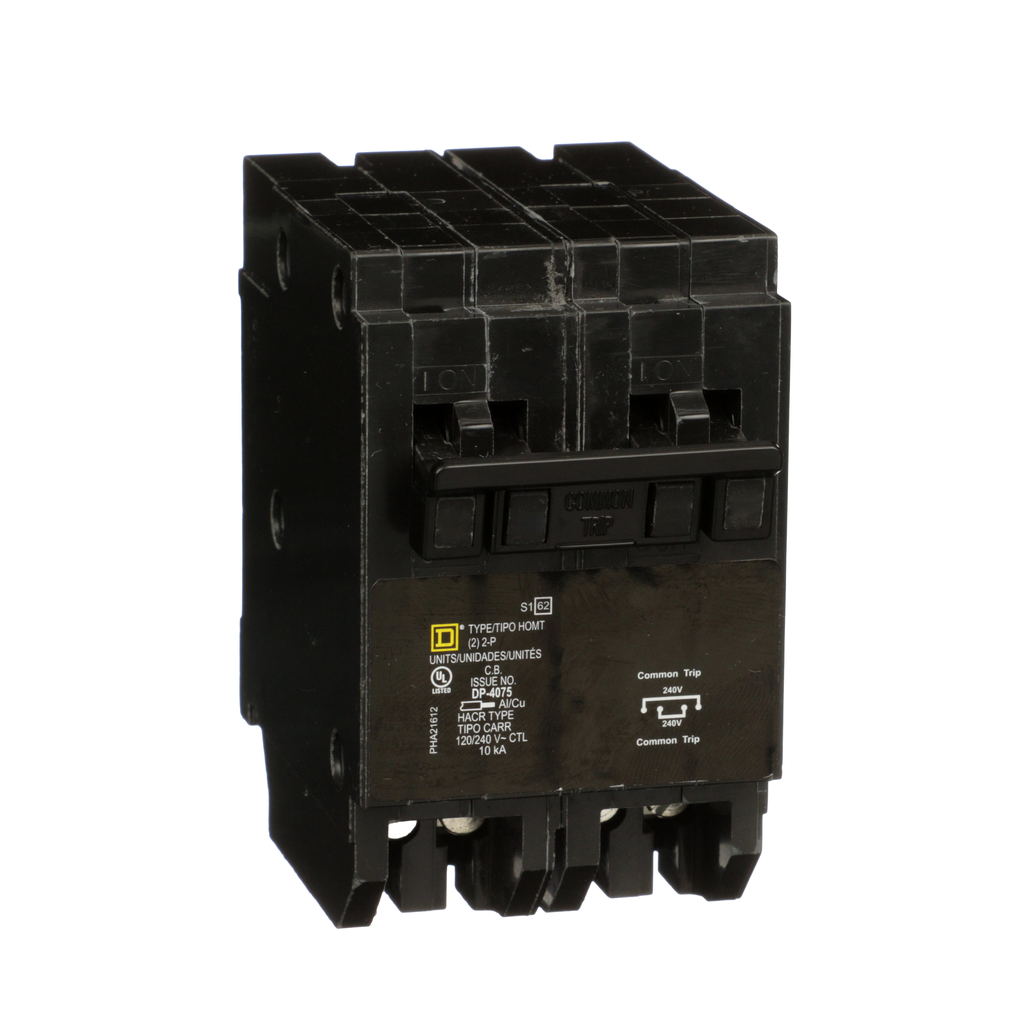

Square D HOMT220250 SQD Quad Tandem Circuit 120/240VAC

Product Description

The Square D HOMT220250 is a quad tandem circuit breaker designed for reliable protection against overloads and short circuits. This model features two tandem 2-pole thermal magnetic circuit breakers manufactured together. It occupies two pole spaces in Homeline load centers, making it ideal for installations where space is limited. The HOMT220250 includes one breaker rated at 20 Amps and another at 50 Amps, both capable of handling 120/240 volts. It is UL Listed for safety and provides a breaking capacity of 10 kA. The 20 Amp breaker accepts wire sizes from fourteen to eight AWG, while the 50 Amp breaker accepts wire sizes from fourteen to six AWG.

• Two-pole tandem circuit breakers in one unit
• Rated for 20A and 50A at 120/240 VAC
• UL Listed for safety and reliability

Product Highlights

Designed for quick installation with Homeline load centers, this circuit breaker ensures superior protection for electrical circuits in residential and commercial settings.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOMT220250
• Voltage: 120/240 Volt
• Current Rating: 20 Amp / 50 Amp
• Wire Size: 14-8 AWG for 20 Amp; 14-6 AWG for 50 Amp
• Breaking Capacity: 10 kA
• Dimensions: 3.13 inches tall, 2.00 inches wide, 2.98 inches deep
