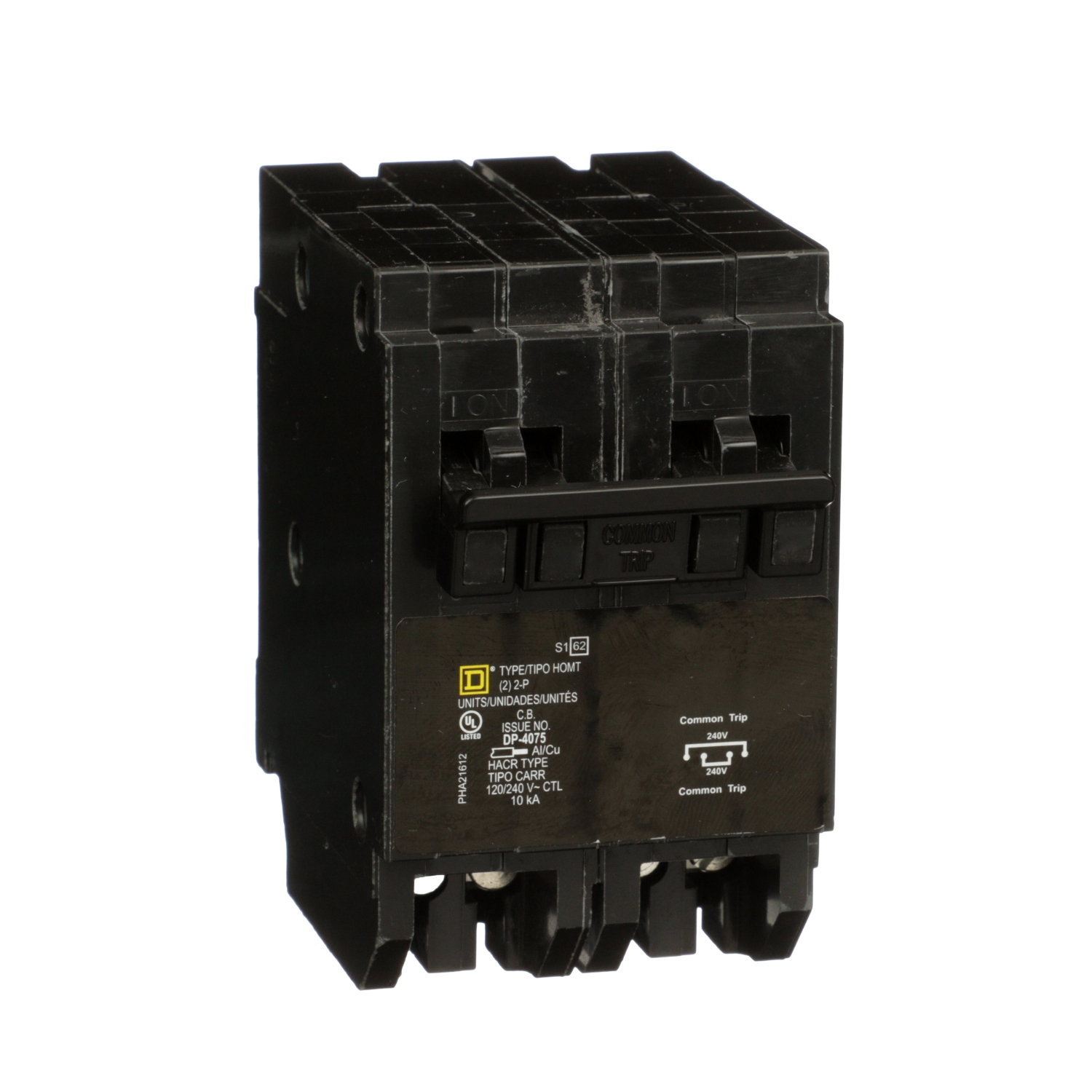

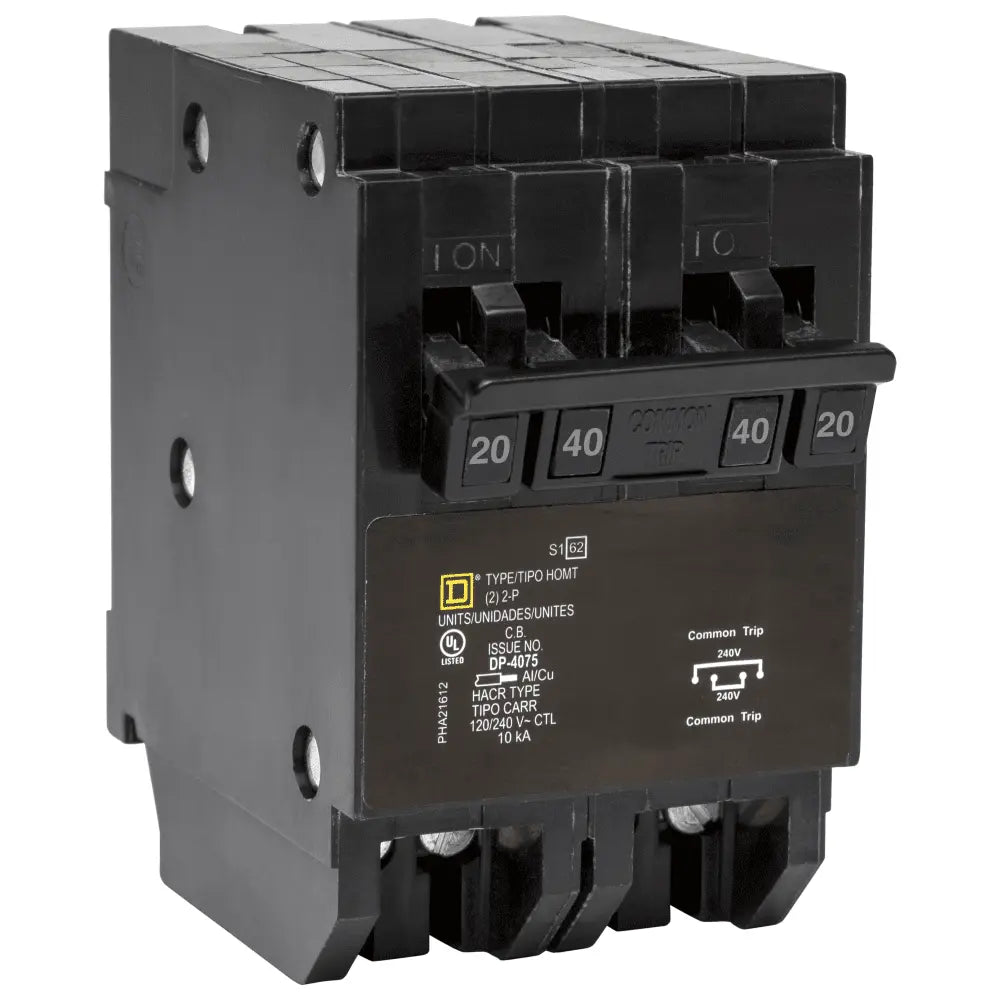

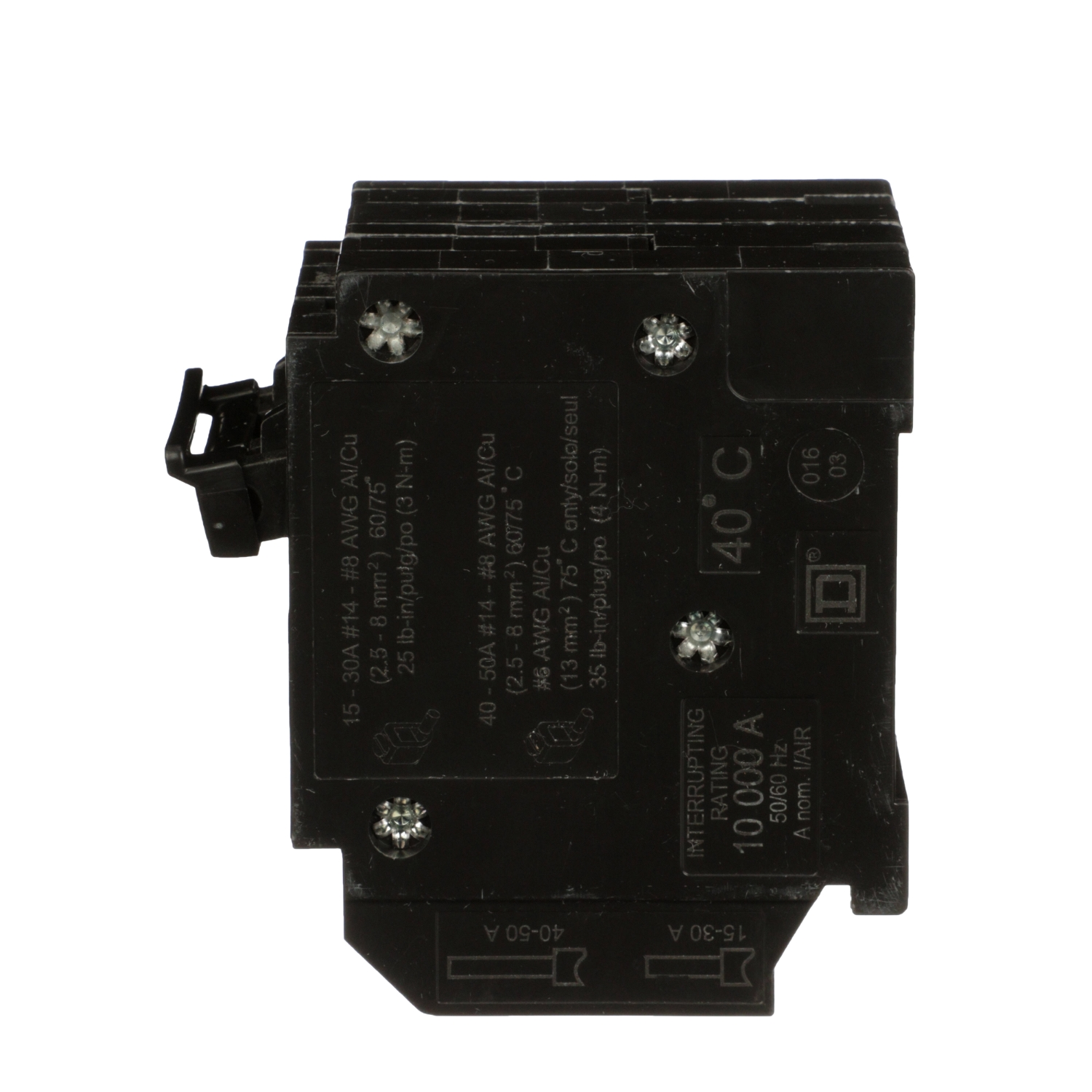

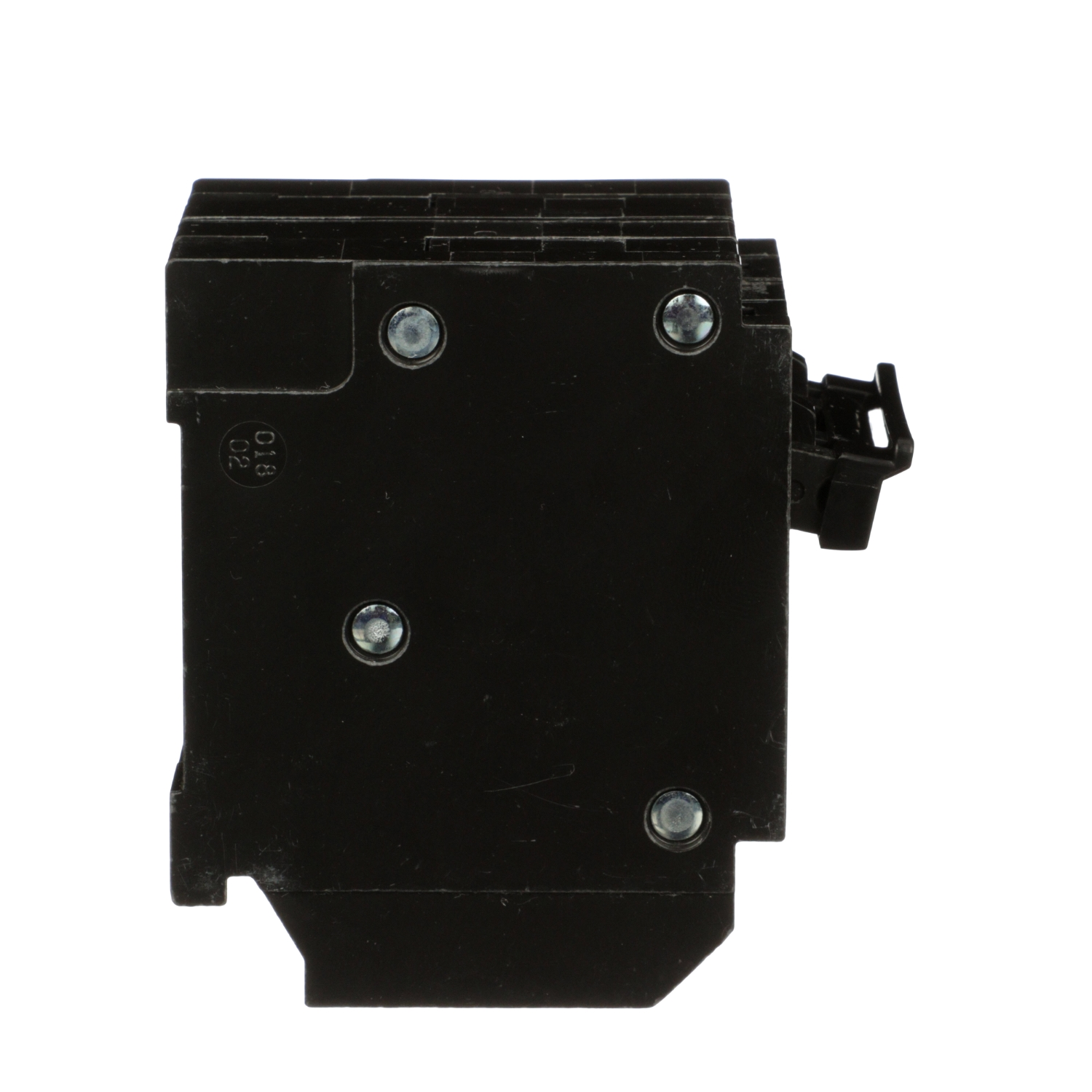

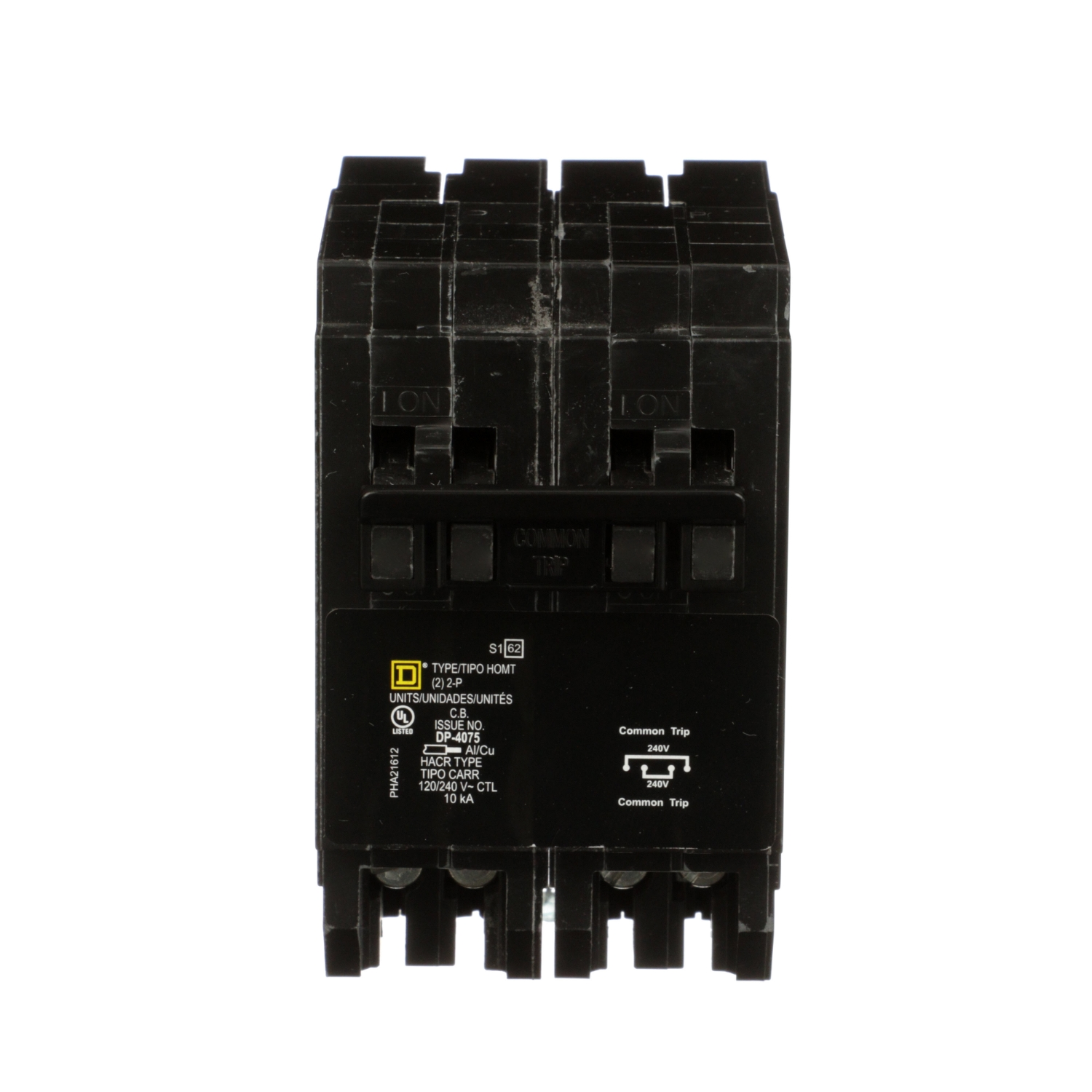

Square D HOMT220240 Homeline Tandem Plug-In Circuit Breaker (2) 20A (2) 40A 120/240VAC 2-Pole

Product Description

The Square D HOMT220240 Homeline miniature circuit breakers are engineered for fast installation and superior circuit protection. Designed to plug into Homeline load centers, this circuit breaker provides standard circuit protection and is HACR rated. It consists of two tandem 2-pole thermal magnetic circuit breakers manufactured in tandem and occupies two HOM pole spaces. This circuit breaker provides 10 kA breaking capacity.

• Engineered and designed for fast installation and superior circuit protection
• Designed to plug into Homeline load centers to provide circuit protection
• Two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem

Product Highlights

The Square D HOMT220240 is ideal for use in Homeline load centers, providing reliable circuit protection for various applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOMT220240
• Country of Origin: Mexico

Technical Specifications

• Type: Plug In - Tandem Breakers
• Depth: 3.29 Inches
• Width: 1.97 Inches
• Height: 3.13 Inches
• Standard: UL Listed
• Trip Type: Thermal Magnetic
• Connection: Screw terminal
• Voltage Rating: 120/240 VAC
• Amperage Rating: (2)20/(2)40 Amperes
• Number Of Poles: 2-Pole
• Frequency Rating: 50/60 Hertz
• Interrupt Rating: 10 kAIC
• Operating Temperature: 104°F
• Brand: Square D
• Range: Homeline
• Wire Size: AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 6 aluminium/copper)1
• Mounting Type: Plug-In
• Certifications: UL
• Conductor Size: 14-8 AWG
• Number of Spaces: 2.0
• Circuit Breaker Type: Quad Tandem
• Short Circuit Current: 10 kA
• Terminal Type: Box Lug
• Mounting: Plug-In
• Approval: UL
• RoHS/REACH Compliant: true
• Number of Space: 2
• Temperature Rating: 104 Deg F
• Application: Heating, Air Conditioning, Refrigeration
• Product Certifications: UL Listed
• Circuit Breaker Application: HACR rated
• Mounting Mode: plug-in
• Poles Description: 2P
• Electrical Connection: box lugs
• [Ue] Rated Operational Voltage: 120/240 V AC
• Awg Gauge: 1 x AWG 14...AWG 8 ( aluminium/copper ) || 1 x AWG 14...AWG 6 ( aluminium/copper )
