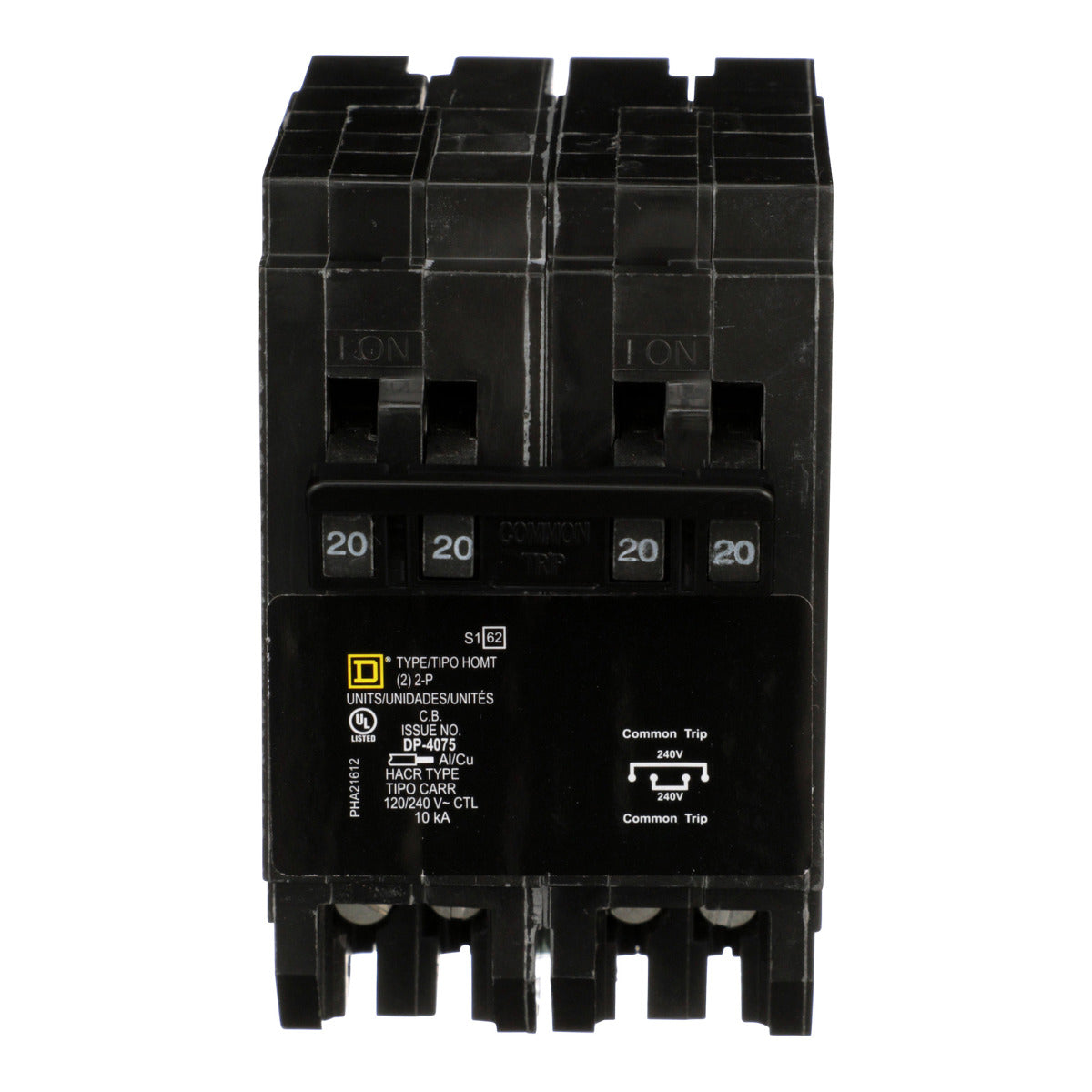

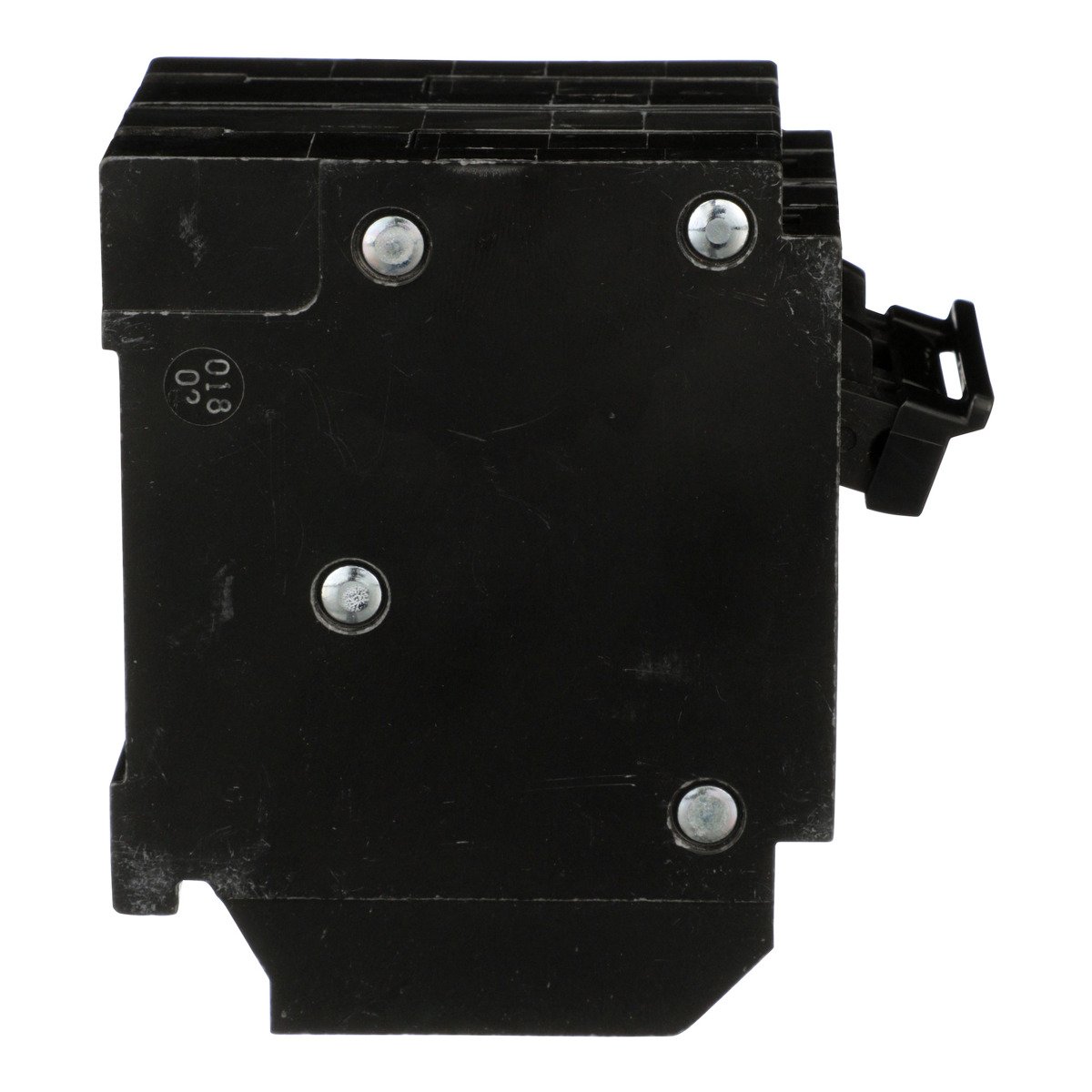

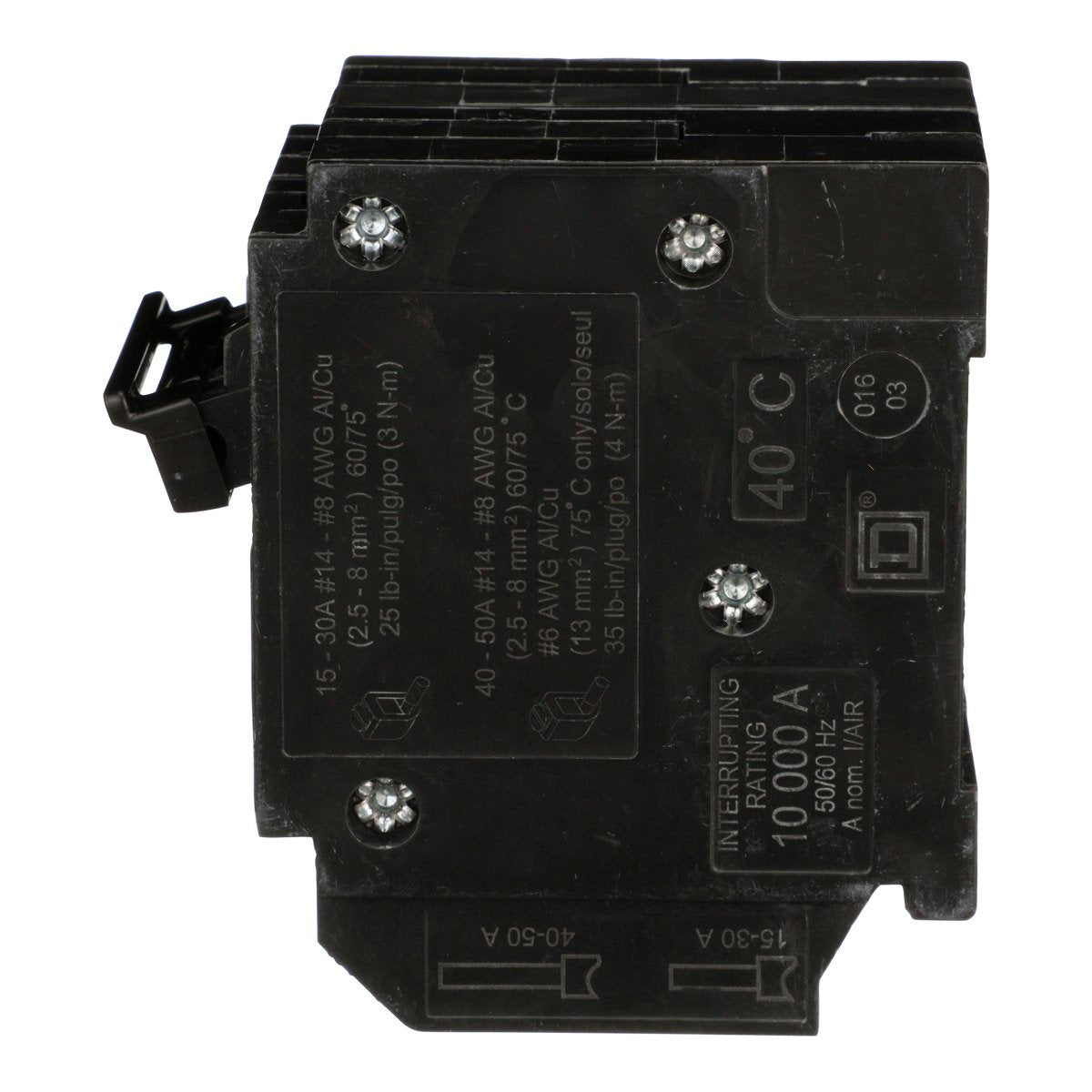

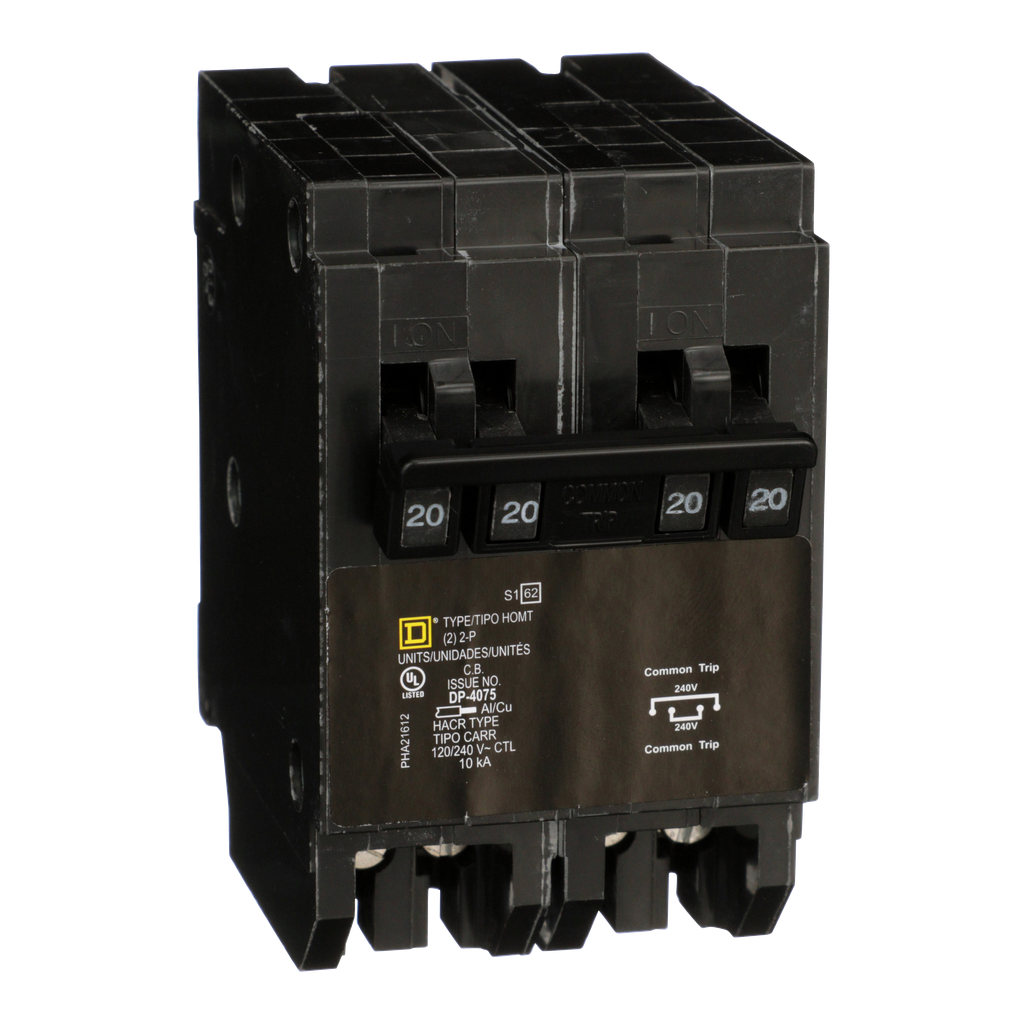

Square D HOMT220220 SQD HOMT220220 Quad Tandem Circuit 20A at 120/240VAC

Product Description

The Square D HOMT220220 is a quad tandem circuit breaker designed for reliable circuit protection in residential and commercial applications. This breaker occupies two pole spaces and consists of two tandem thermal magnetic circuit breakers. Each pole is rated at 20 Amperes at 120/240 Volts. The HOMT220220 delivers a breaking capacity of ten kA. It is compatible with Homeline load centers, ensuring a plug-in installation that saves time and effort.

• Compatible with Homeline load centers
• Accepts wire sizes from 14 AWG to 8 AWG
• UL Listed for safety and reliability

Product Highlights

Ideal for standard circuit protection needs, the HOMT220220 is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications.

Product Information

Standard Information

• Catalog Number: HOMT220220
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 120/240 Volt
• Current Rating: 20 Amp
• Breaking Capacity: 10 kA
• Number of Poles: 2 Pole
• Dimensions: 3.13 inches tall, 2.00 inches wide, 2.98 inches deep
• Wire Size: Accepts 14 AWG to 8 AWG copper or aluminum wire
• Country of Origin: Mexico
• Certifications: UL Listed
