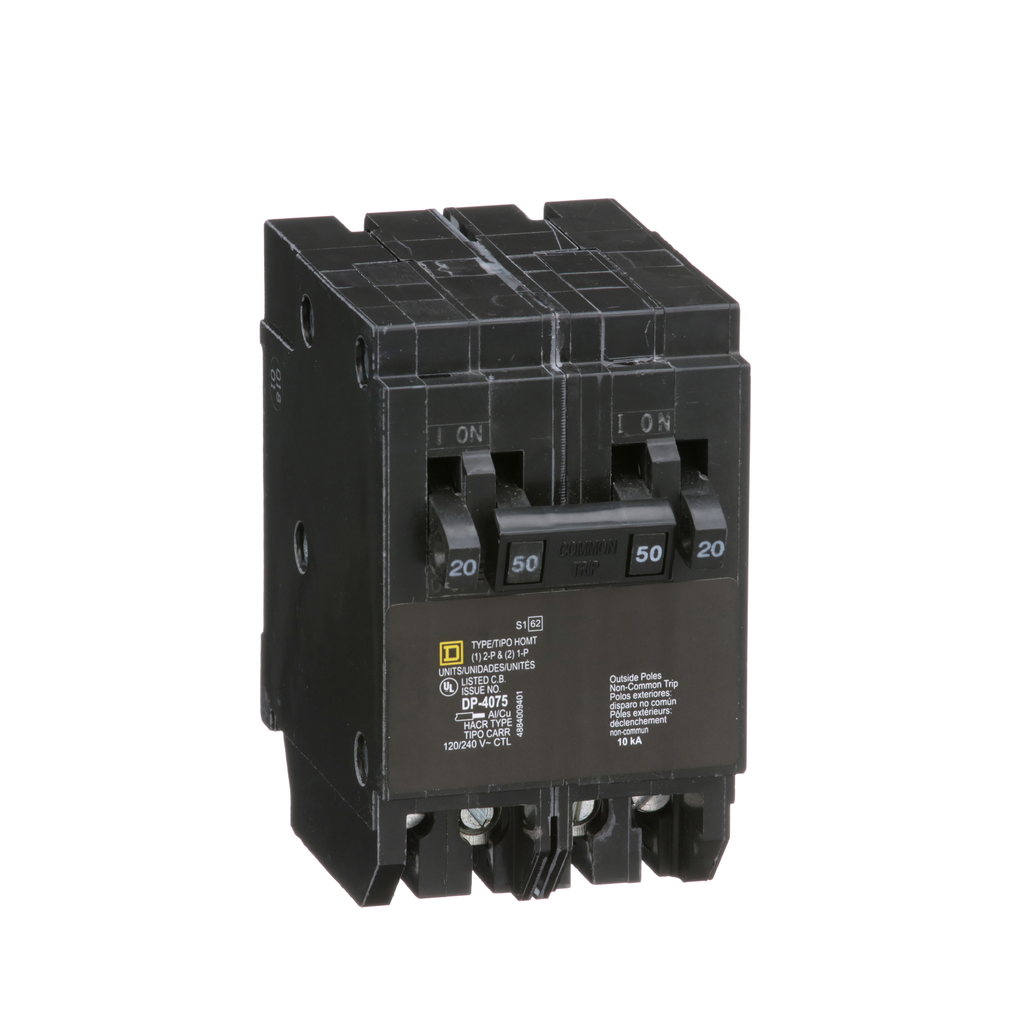

Square D HOMT2020250 Tandem Circuit Breaker 120/240 Volt 20 Amp Miniature Circuit Breaker

Product Description

The Square D HOMT2020250 is a reliable tandem circuit breaker designed for quick installation and effective circuit protection. This device is suitable for use in Homeline load centers, providing essential overload and short-circuit protection for electrical systems. The HOMT circuit breaker features a quad tandem configuration, occupying two pole spaces. It consists of a two-pole breaker in the middle with a single-pole breaker on each side. It is rated for 50 Amperes at 120/240 Volts for the two-pole section, while each single-pole section is rated at 20 Amperes at the same voltage.

• Rated for 10 kA breaking capacity
• Compatible with wire sizes from AWG 14 to AWG 6 for copper and AWG 12 to AWG 8 for aluminum
• UL Listed for safety and reliability

Product Highlights

This circuit breaker is HACR rated, making it ideal for heating, air conditioning, and refrigeration systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: HOMT2020250
• Voltage: 120/240 Volt
• Current: 20 Amp, 50 Amp
• Breaker Type: Quad Tandem
• Dimensions: 3.13 inches tall, 2.00 inches wide, 2.98 inches deep
• Wire Size: AWG 14 to AWG 6 for copper, AWG 12 to AWG 8 for aluminum
• Short Circuit Current Rating: 10 kA
• Spaces Required: 2
• Country of Origin: United States
