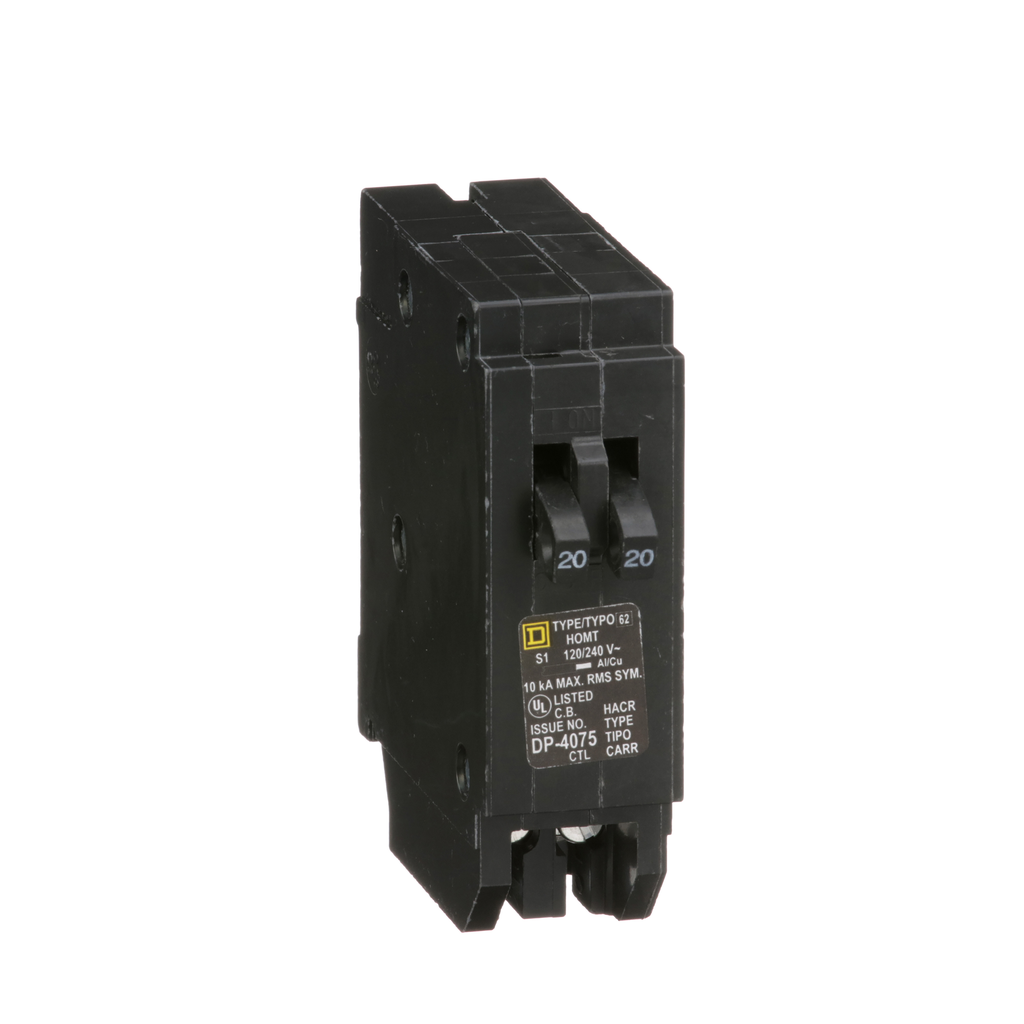

Square D HOMT2020 Miniature Circuit Breaker 20 Amp 120/240 Volt Tandem

Product Description

The Square D HOMT2020 is a 20 Amp tandem miniature circuit breaker designed for 120/240 volts. This product features two single-pole thermal magnetic circuit breakers in one pole space, making it efficient for circuit protection. It is compatible with Homeline load centers and provides a breaking capacity of 10 kA.

• Rated for 20 Amps at 120/240 Volts
• Accepts wire sizes from 14 AWG to 8 AWG copper or aluminum
• UL Listed for safety and reliability

Product Highlights

The Square D HOMT2020 is designed for easy installation and reliable performance, making it suitable for residential electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOMT2020
• Current Rating: 20 Amp
• Voltage Rating: 120/240 Volt
• Wire Size: 14-8 AWG
• Breaker Type: Tandem
• Height: 3.13 inches
• Width: 1 inch
• Depth: 2.98 inches
• Country of Origin: Mexico
• Certifications: UL Listed
