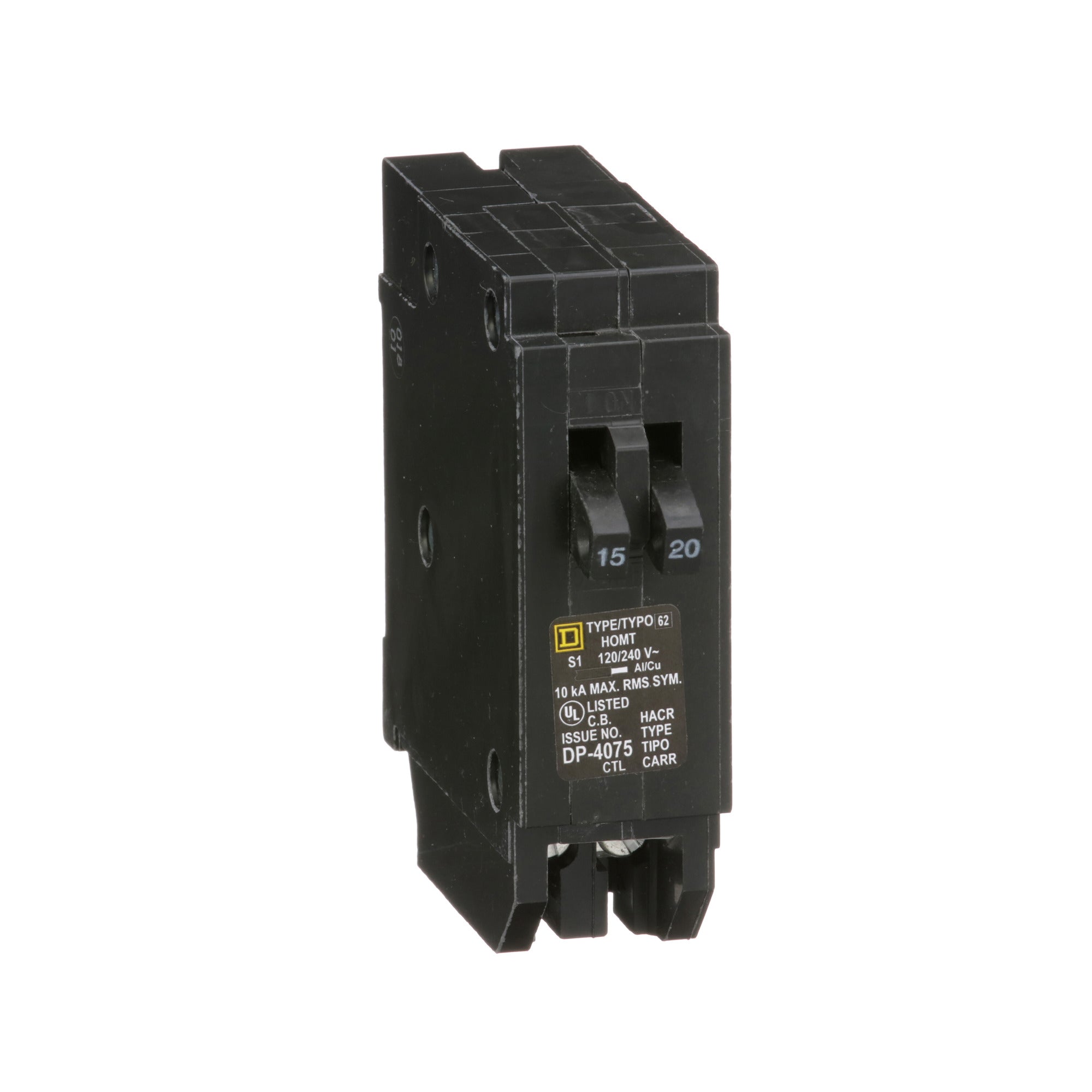

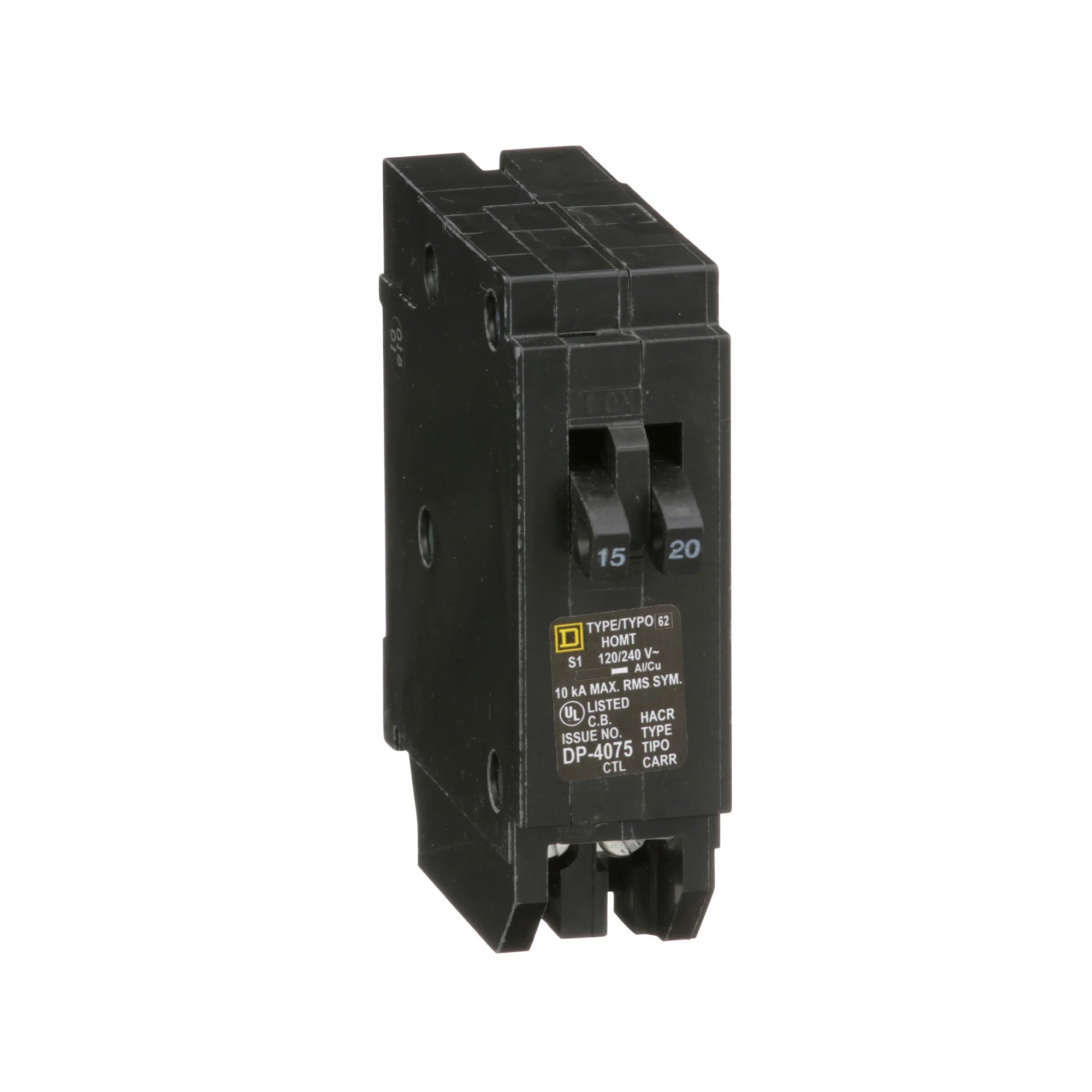

Square D HOMT1520 Tandem Circuit Breaker 120/240 Volt 15A 20A

Product Description

The Square D HOMT1520 is a tandem circuit breaker designed for use in residential power distribution. This breaker operates at a voltage of 120/240 volts and includes two poles, rated for 15 amps and 20 amps respectively. It is compatible with Homeline load centers, making it suitable for electrical systems that require overload and short-circuit protection.

• Voltage Rating: 120/240 Volts
• Current Rating: 15A and 20A
• Short Circuit Current Rating: 10kA

Product Highlights

This device is UL listed and features a plug-in mounting type, making installation quick and straightforward. Each single pole operates independently for reliable performance. The HOMT1520 can accommodate wire sizes ranging from AWG 12 to AWG 8, contributing to its versatility in electrical applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOMT1520
• Depth: 2.98 inches
• Width: 1 inch
• Height: 3.13 inches
• Number of Poles: 1
• Wire Size: AWG 12 to AWG 8
• Country of Origin: Mexico
• Warranty Length: Lifetime
• Certifications: UL Listed
