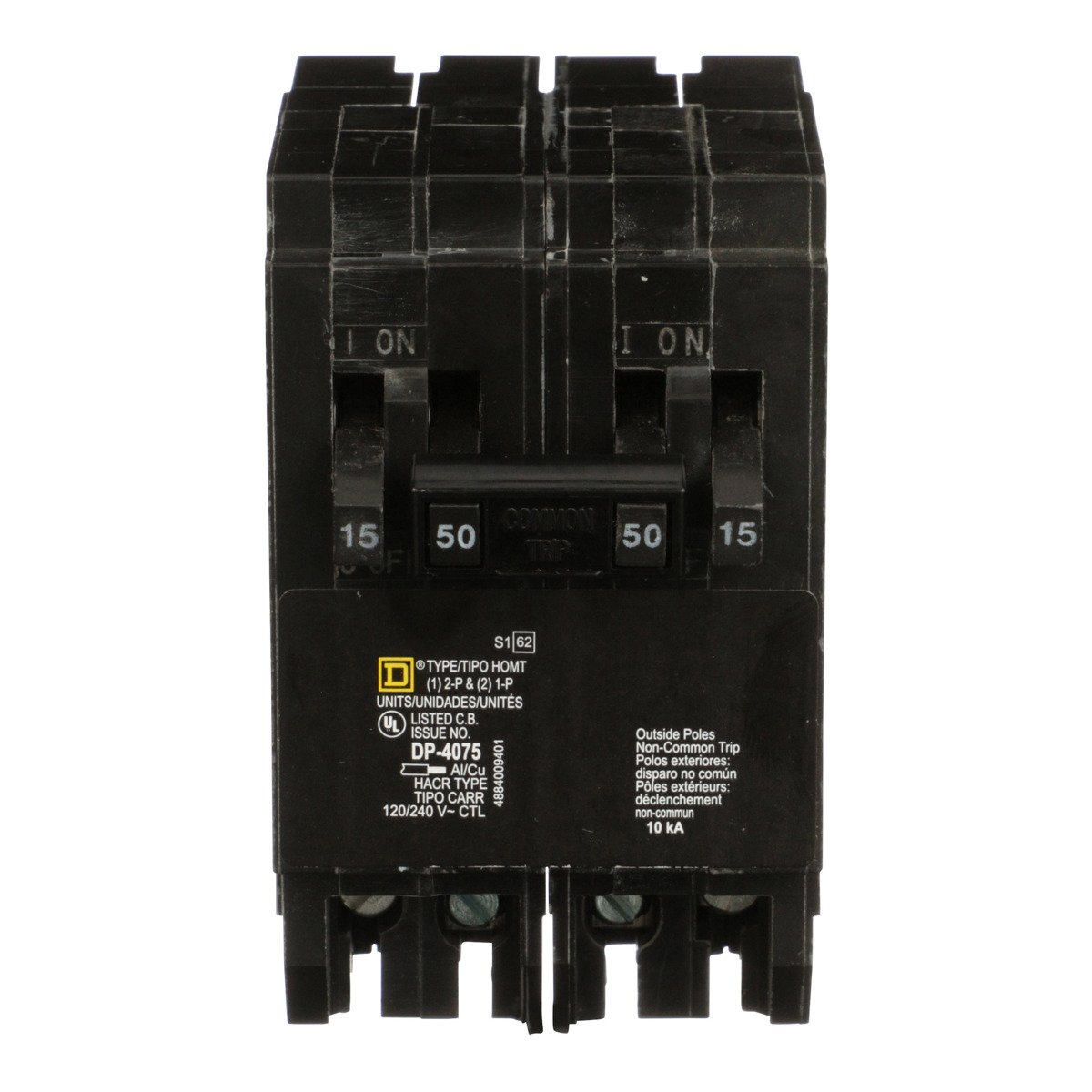

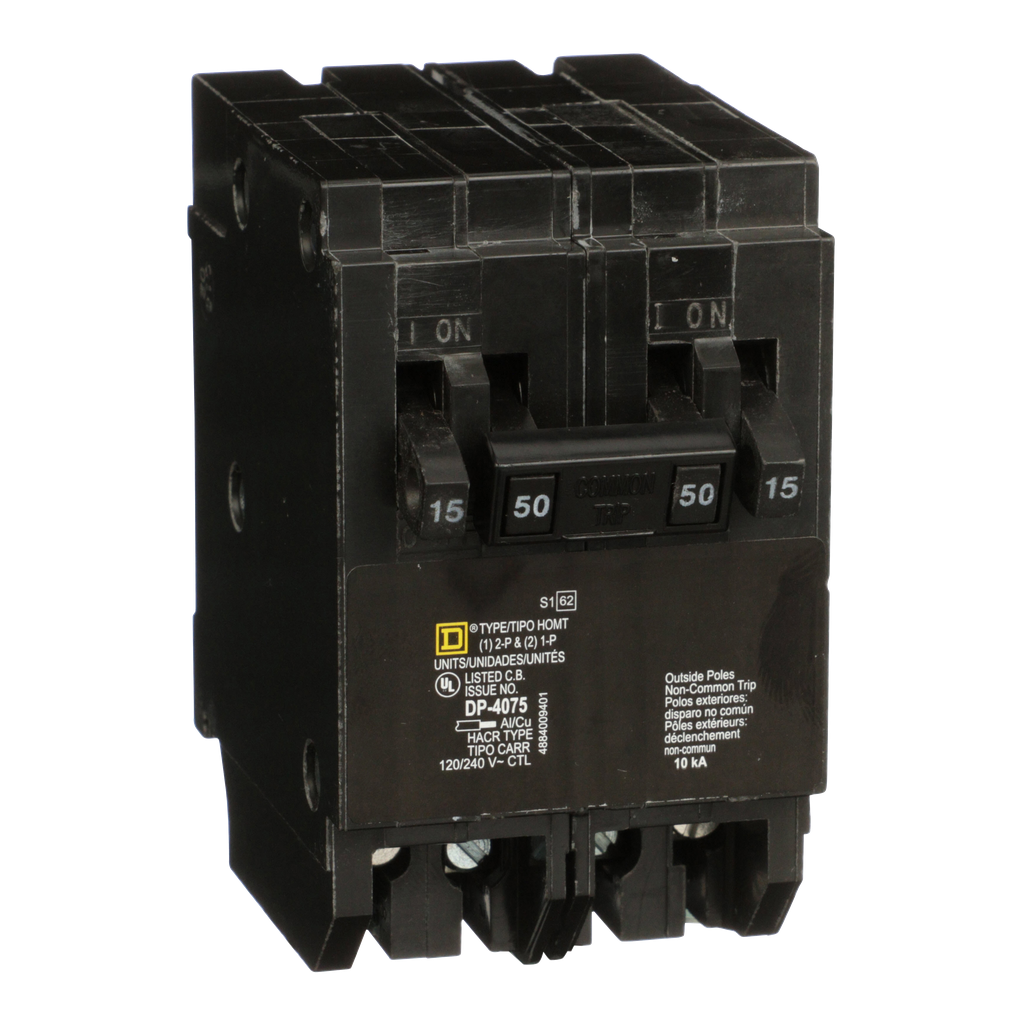

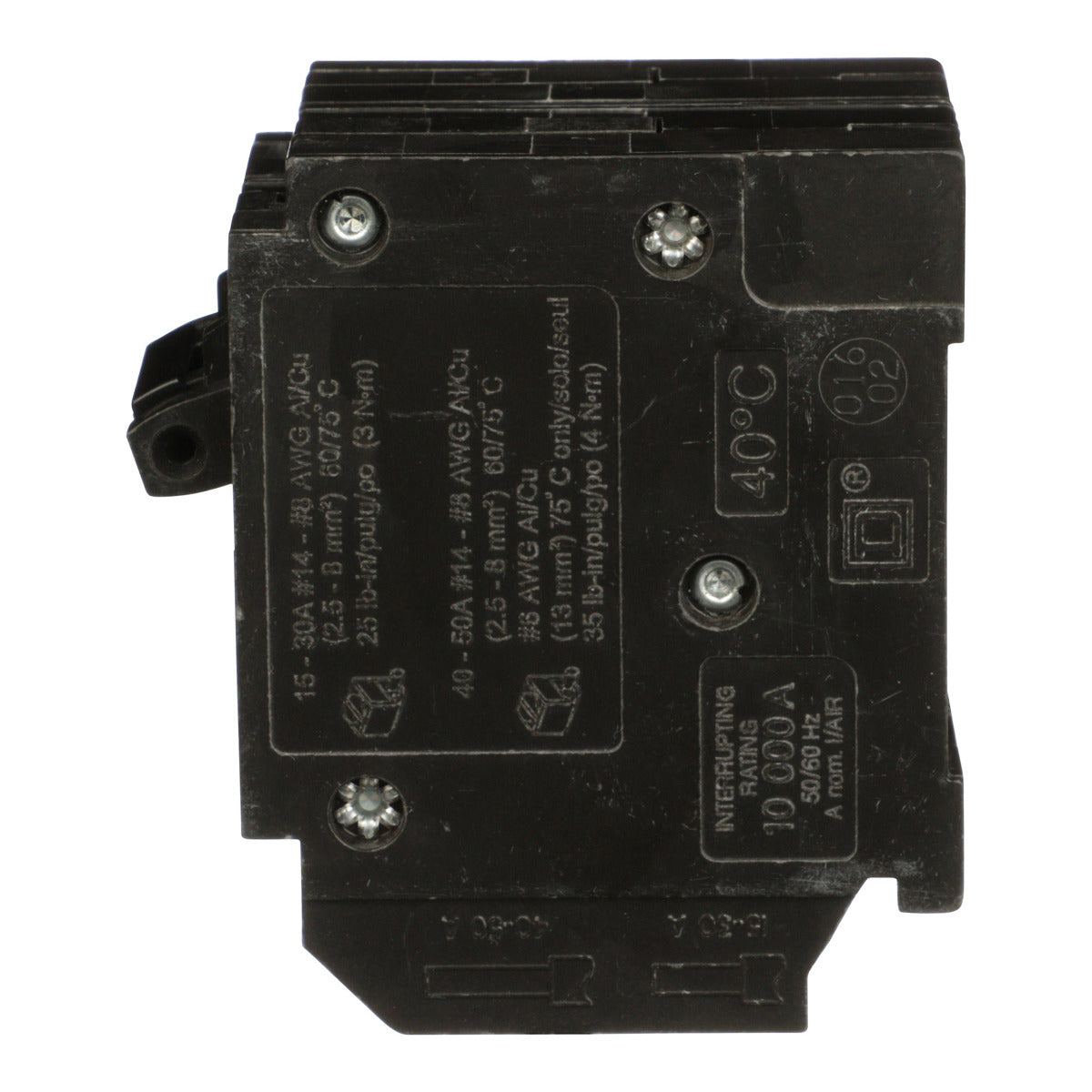

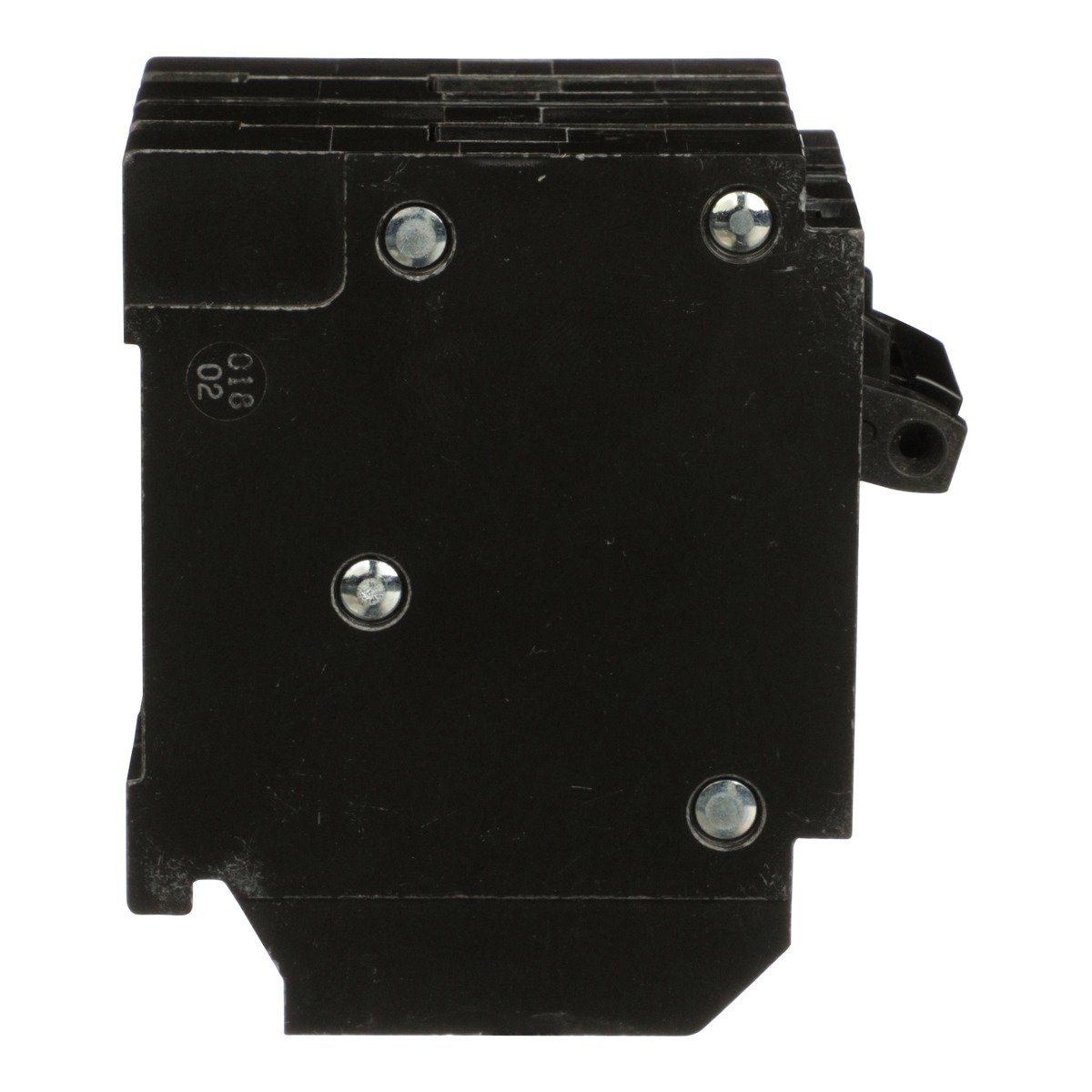

Square D HOMT1515250 Miniature Circuit Breaker 120/240 Volt 15 Amp

Product Description

Square D HOMT1515250 is a miniature circuit breaker designed for effective circuit protection. This unit supports a voltage rating of 120/240 VAC and is ideal for both residential and commercial applications. It features a quad tandem design that includes a 50 Amp two-pole breaker in the middle flanked by two 15 Amp single-pole breakers. This circuit breaker offers a 10 kA breaking capacity.

• Rated for 120/240 volts with a maximum current of 15 amps and 50 amps.
• UL Listed and HACR rated for air conditioning and refrigeration applications.
• Compatible with Homeline load centers.

Product Highlights

Designed for ease of installation, this circuit breaker is perfect for protecting electrical circuits. It comes with a plug-in mounting type, ensuring quick and straightforward setup.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOMT1515250
• Voltage Rating: 120/240 Volt
• Current Rating: 15 Amp / 50 Amp
• Breaking Capacity: 10 kA
• Number of Poles: 1-2 Pole
• Wire Size: AWG 14 to 6 copper or AWG 12 to 6 aluminum
• Dimensions: 3.13 inches tall, 2.00 inches wide, 2.98 inches deep
• Country of Origin: Mexico
• Warranty: Lifetime
