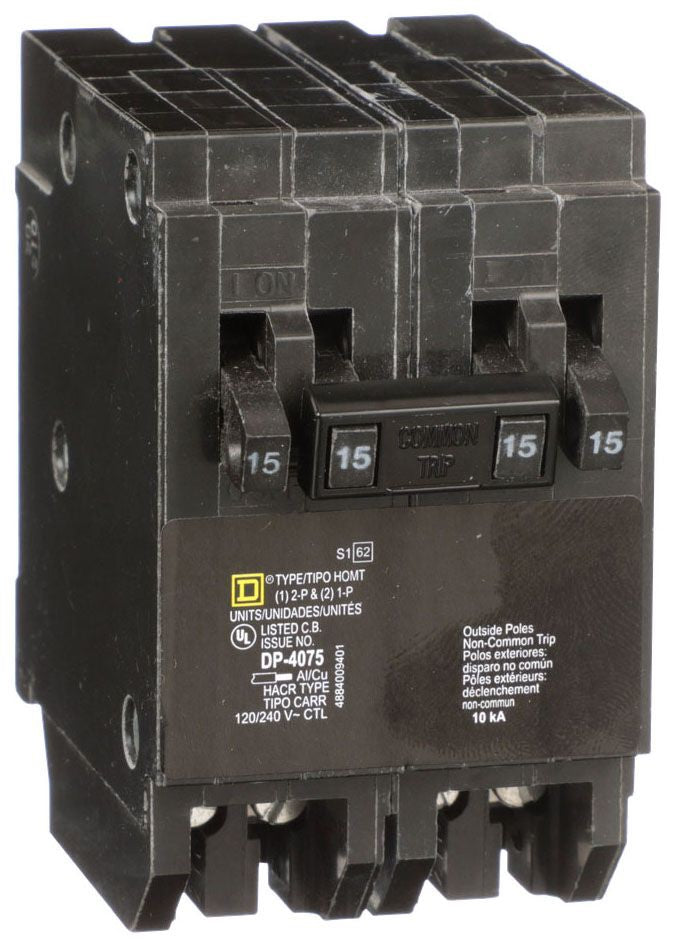

Square D HOMT1515220 Miniature Circuit Breaker 120/240V 15 Amp

Product Description

Square D HOMT1515220 is a miniature circuit breaker designed for use in residential and commercial applications. It operates at a voltage of 120/240 Volt AC and has a current rating of 15 Amps. This breaker features a quad tandem design, accommodating a two-pole breaker and two single-pole breakers, all within a compact space. It provides reliable circuit protection and is effective in load centers.

• Quad tandem type for efficient space utilization.
• UL approval for safety and reliability.
• Accepts wire sizes from fourteen to eight AWG, both copper and aluminum.

Product Highlights

This miniature circuit breaker is rated for HACR applications and boasts a ten kiloamp interrupting rating to handle unexpected overloads. Its compact design makes it suitable for various installations while ensuring superior protection.

Product Information

Standard Information

• Brand: Square D Co.
• Manufacturer: Square D Co.

Technical Specifications

• Catalog Number: HOMT1515220
• Current Rating: 15 Amp
• Voltage Rating: 120/240 Volt AC
• Interrupting Rating: 10 Kiloamp
• Size: 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height
• Wire Size: 14 to 8 AWG (Aluminum/Copper)
• Mounting: Plug-In
• Approval: UL
