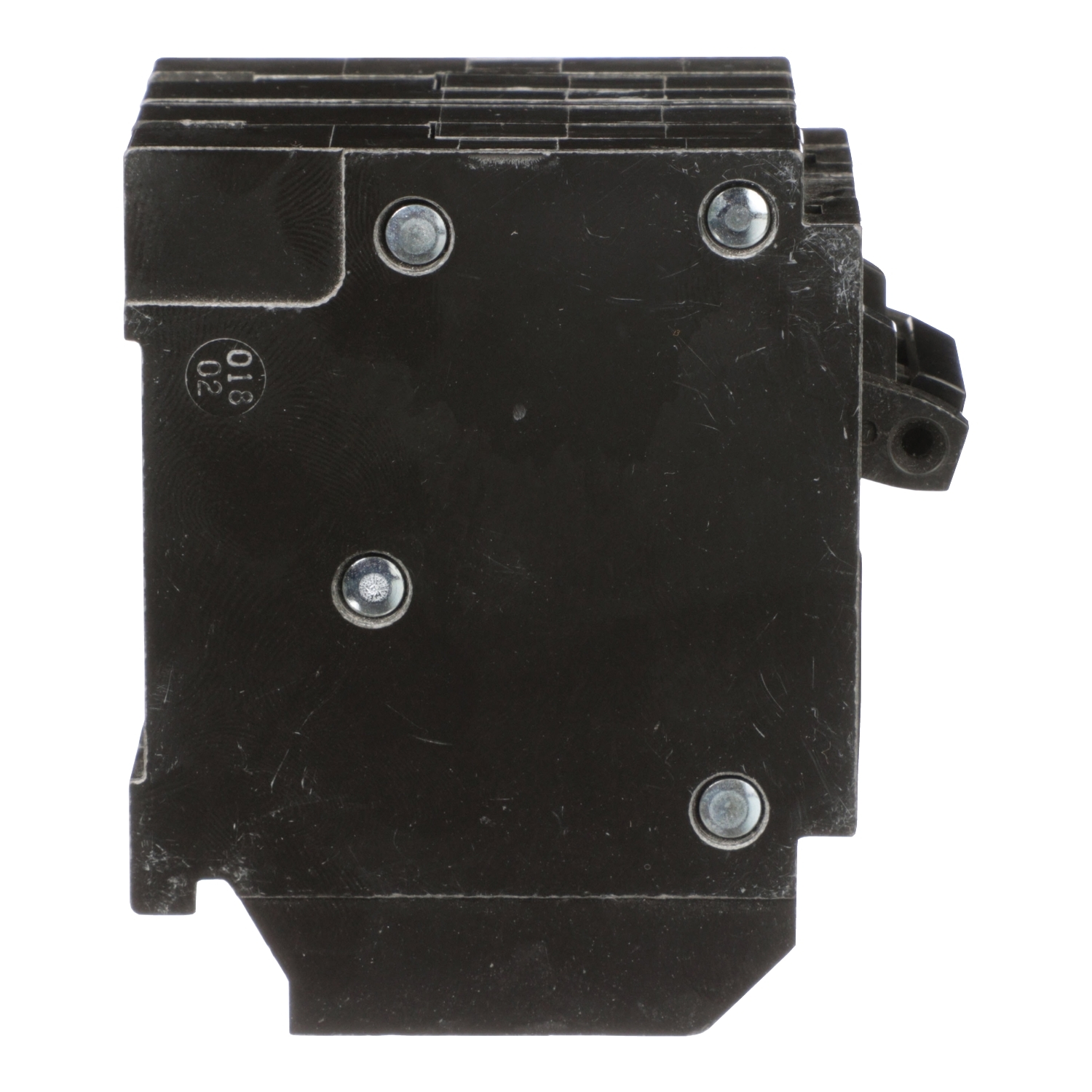

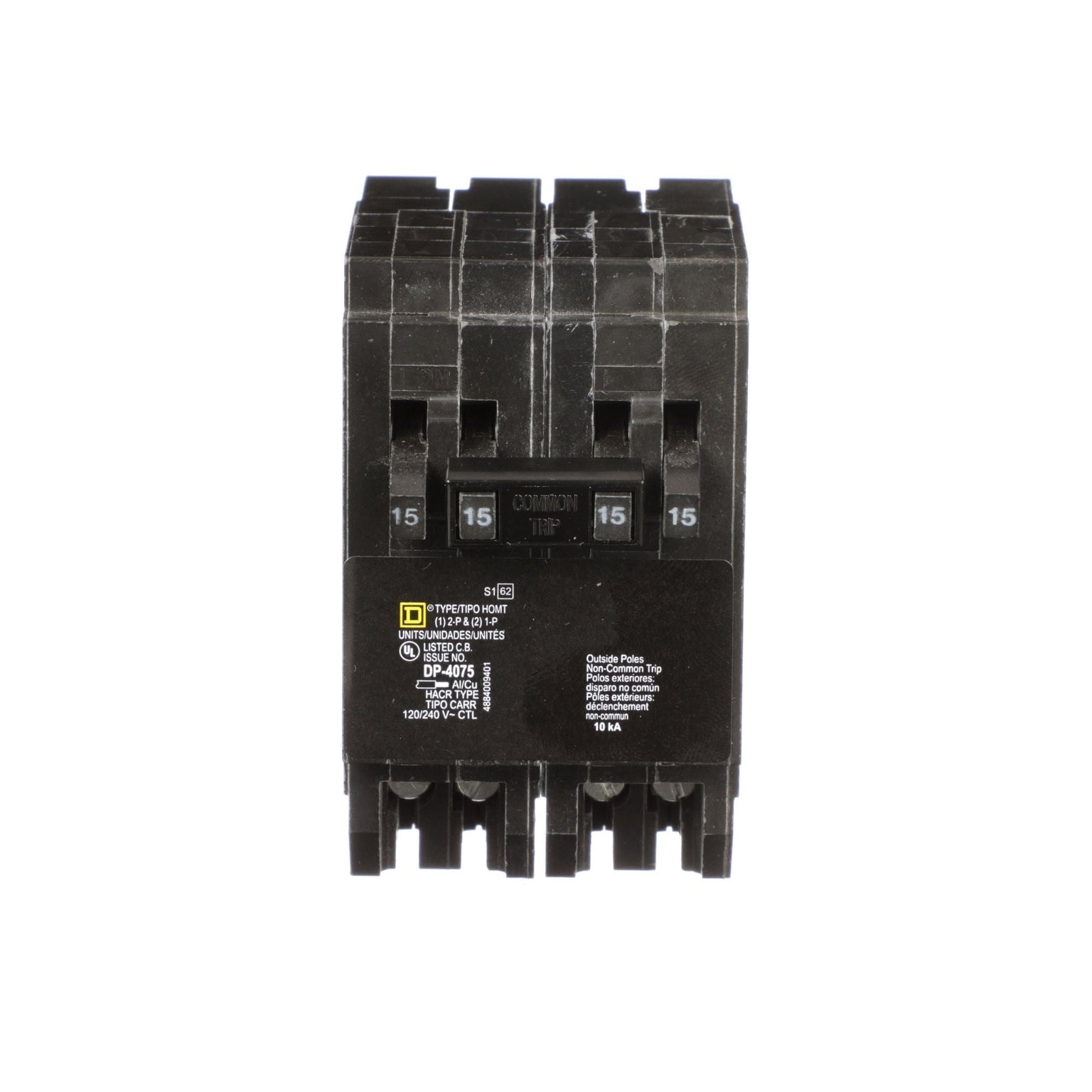

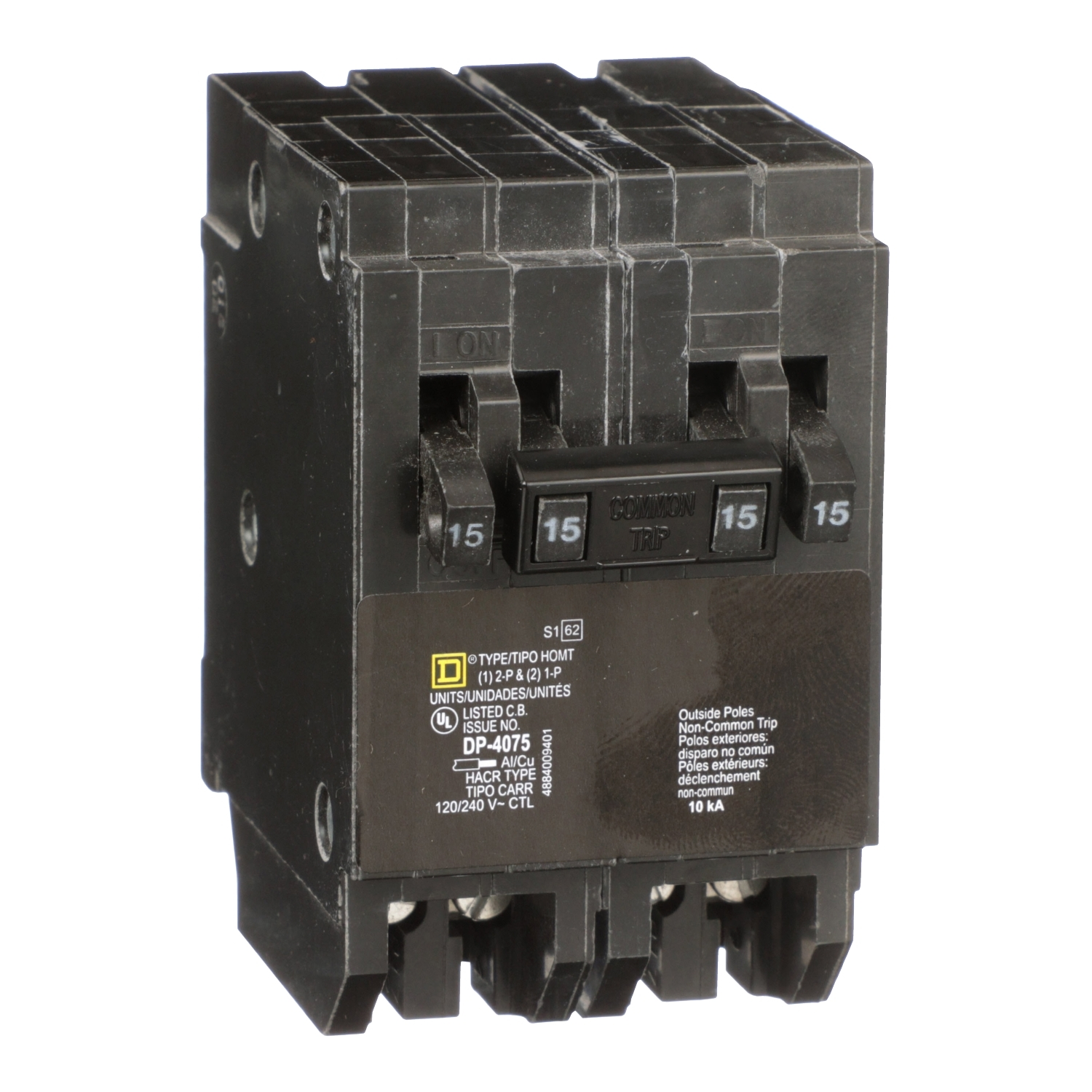

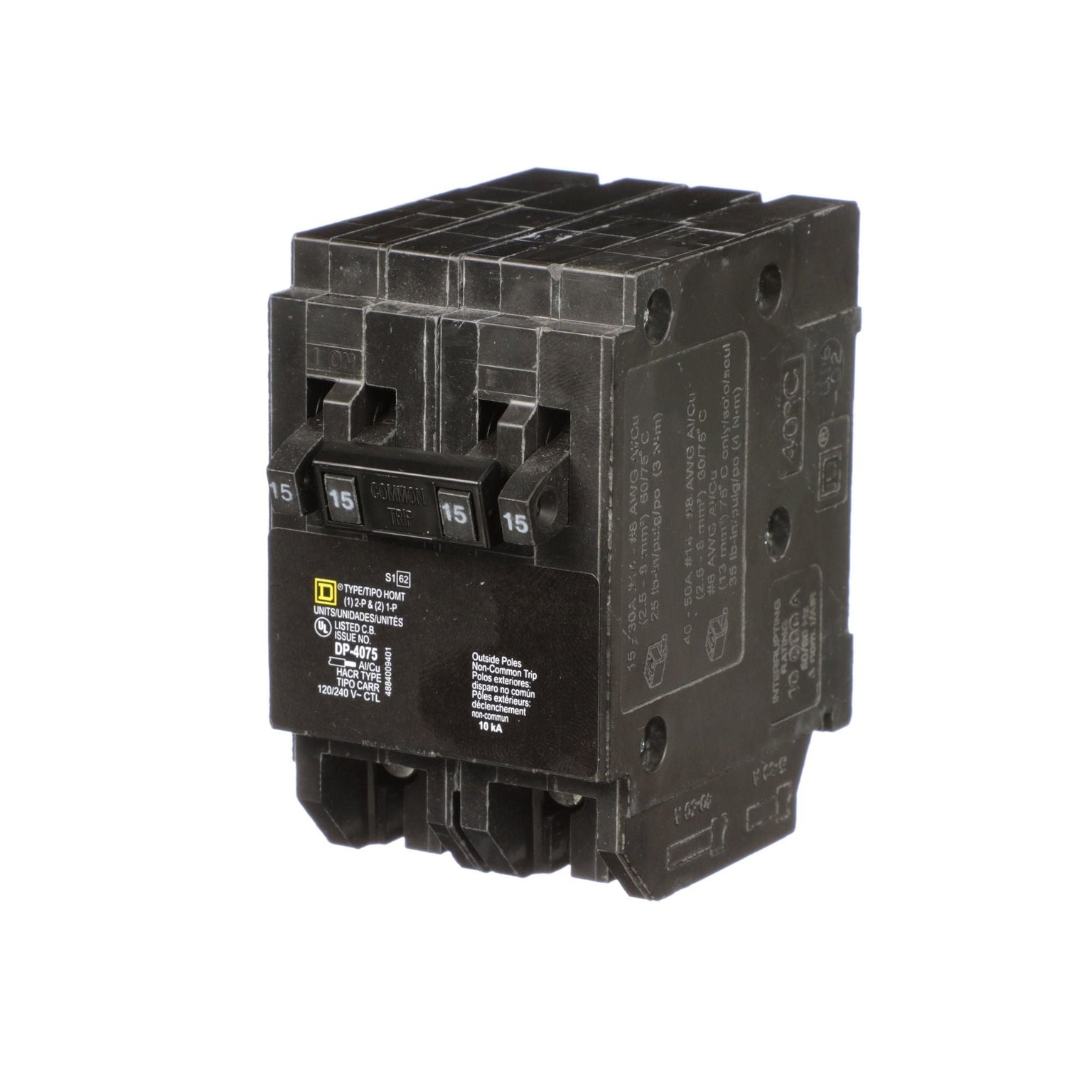

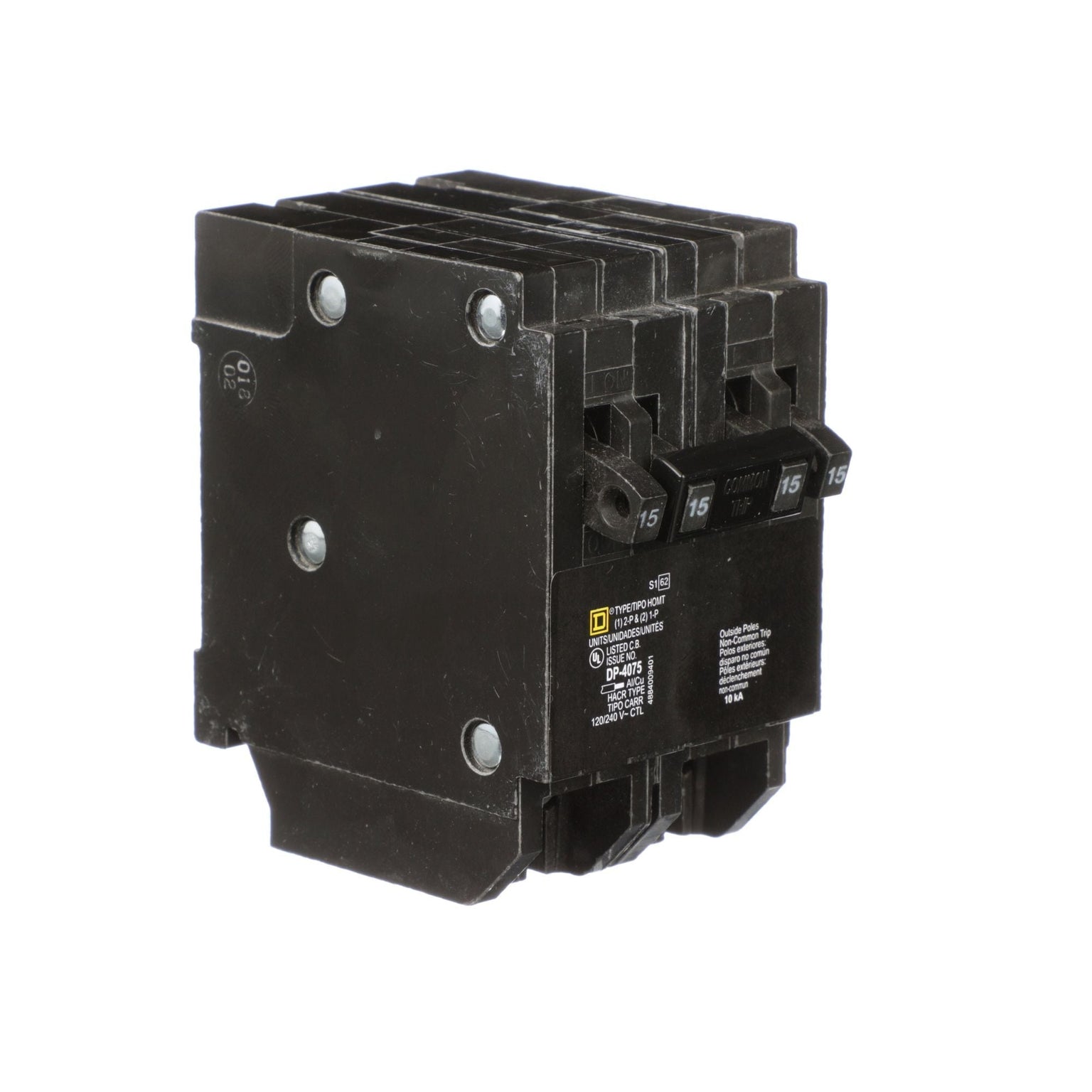

Square D HOMT1515215 Homeline Tandem Plug-In Circuit Breaker 15 Amp 2-Pole

Product Description

The Square D HOMT1515215 Homeline miniature circuit breakers are engineered for fast installation and superior circuit protection. Designed to plug into Homeline load centers, this HOMT circuit breaker is a quad tandem breaker that occupies two HOM pole spaces. It provides standard circuit protection and is HACR rated.

• Engineered and designed for fast installation
• Provides superior circuit protection
• Quad tandem breaker

Product Highlights

This Square D HOMT circuit breaker provides reliable circuit protection and is HACR rated. It accepts 14 AWG to 8 AWG copper or aluminum wire and is UL Listed.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOMT1515215
• Country of Origin: Mexico

Technical Specifications

• Type: Plug In - Tandem Breakers
• Depth: 2.98 Inches
• Width: 2 Inches
• Height: 3.13 Inches
• Material: Thermoplastic
• Standard: UL 489
• Trip Type: Thermal Magnetic
• Connection: Screw terminal
• Voltage Rating: 120/240 VAC
• Amperage Rating: 15/(2)15/15 Amperes
• Number Of Poles: 2-Pole
• Frequency Rating: 50/60 Hertz
• Interrupt Rating: 10 kAIC
• Range: Homeline
• Current: 15 Amp
• Wire Size: AWG 14...AWG 8 aluminium/copper)1
• Mounting Type: Plug-in
• Certifications: UL
• Conductor Size: 14-8 AWG
• Line Rated Current: 15 A
• Circuit Breaker Type: Quad Tandem
• Short Circuit Current: 10 kA
• Brand: SQUARE D
• Manufacturer: Square-D / Schneider
• Voltage: 120/240 Volt
• Poles: 4
• Terminal Type: Screw Clamp
• Mounting: Plug-On
• Used On: Homeline Loadcenter
• Approval: UL, CSA
• Application: Circuit Breaker
• HACR Rated: Yes
• UL Listed: Yes
• Electrical Connection: box lugs
• [Ue] Rated Operational Voltage: 120/240 V AC
• Awg Gauge: 1 x AWG 14...AWG 8 ( aluminium/copper )
• Tightening Torque: 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8)
• Ambient Air Temperature For Operation: 40 °C
• Family: Homeline
• Amp: 15
• Volt: 240
• Phase: 1
• Category: Molded Case Circuit Breakers
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 10kA@240V
• Item model number: HOMT1515215
• Item Package Quantity: 1
• Included Components: HOMT1515215
• Batteries Included?: No
• Batteries Required?: No
