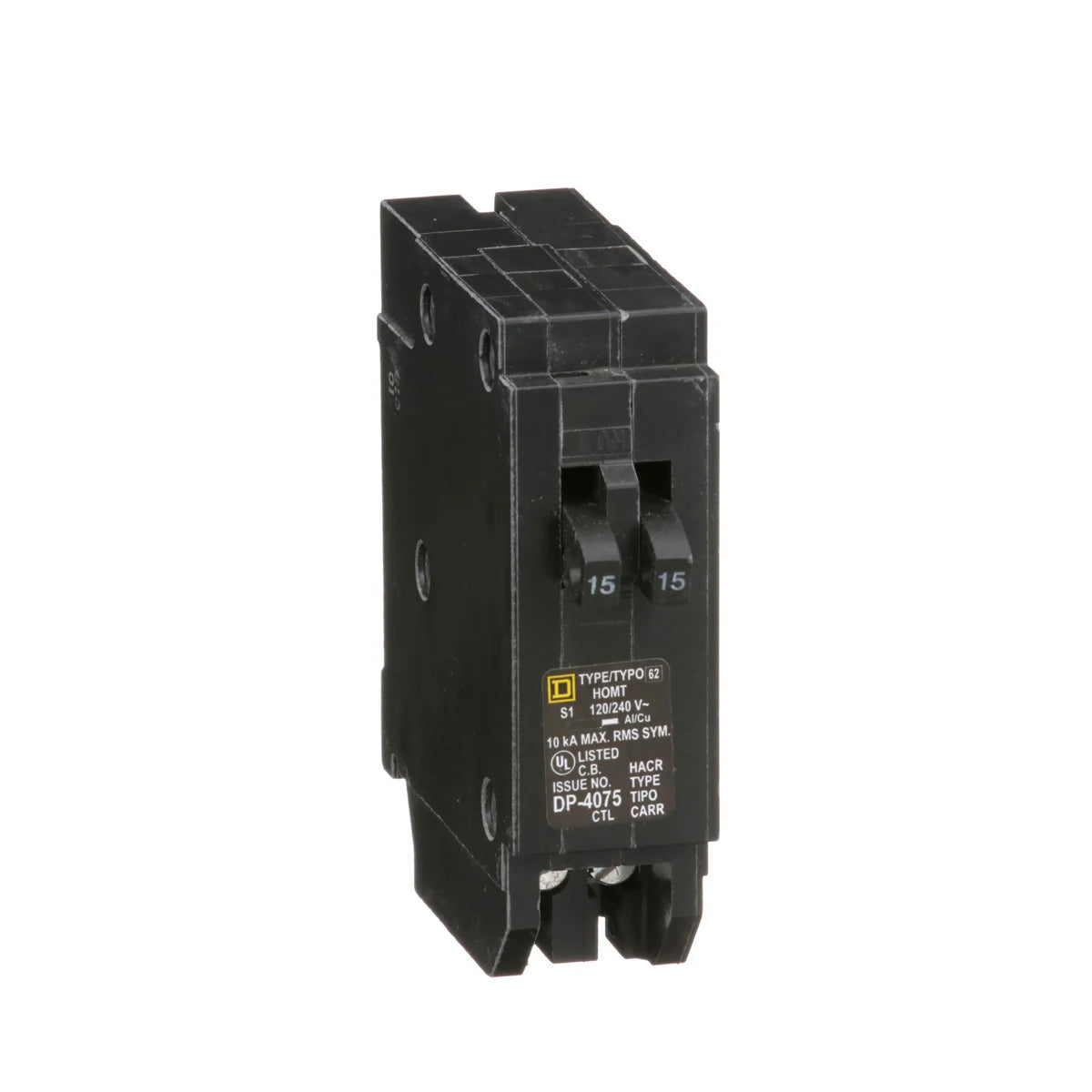

Square D HOMT1515 Square D HOMT1515 120/240 Volt 15 Amp Miniature Circuit Breaker

Product Description

The Square D HOMT1515 is a 120/240 Volt 15 Amp miniature circuit breaker from Schneider Electric. This model is designed for quick installation and effective circuit protection in residential applications.

• Accepts wire sizes from 14 AWG to 8 AWG copper or aluminum.
• Rated for a maximum of 15 Amps and can handle a breaking capacity of 10 kA.
• UL listed for safety and reliability in electrical systems.

Product Highlights

This tandem circuit breaker consists of two thermal magnetic breakers in a single module, allowing it to fit in one pole space while providing individual circuit protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOMT1515
• Voltage: 120/240 Volt
• Current Rating: 15 Amp
• Number of Poles: 1 Pole
• Wire Size: 14-8 AWG
• Type: Tandem
• Height: 3.13 inches
• Width: 1.00 inches
• Depth: 2.98 inches
