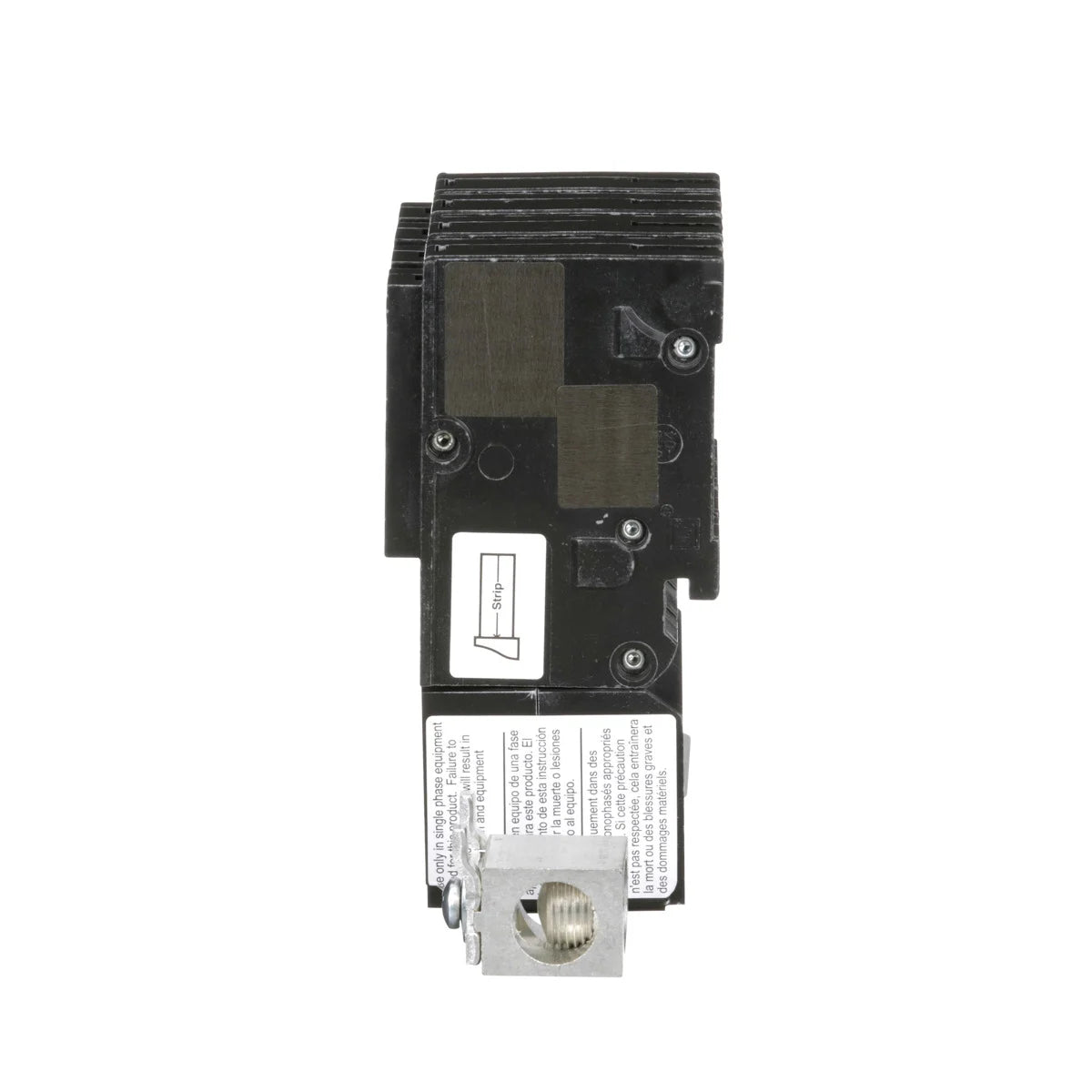

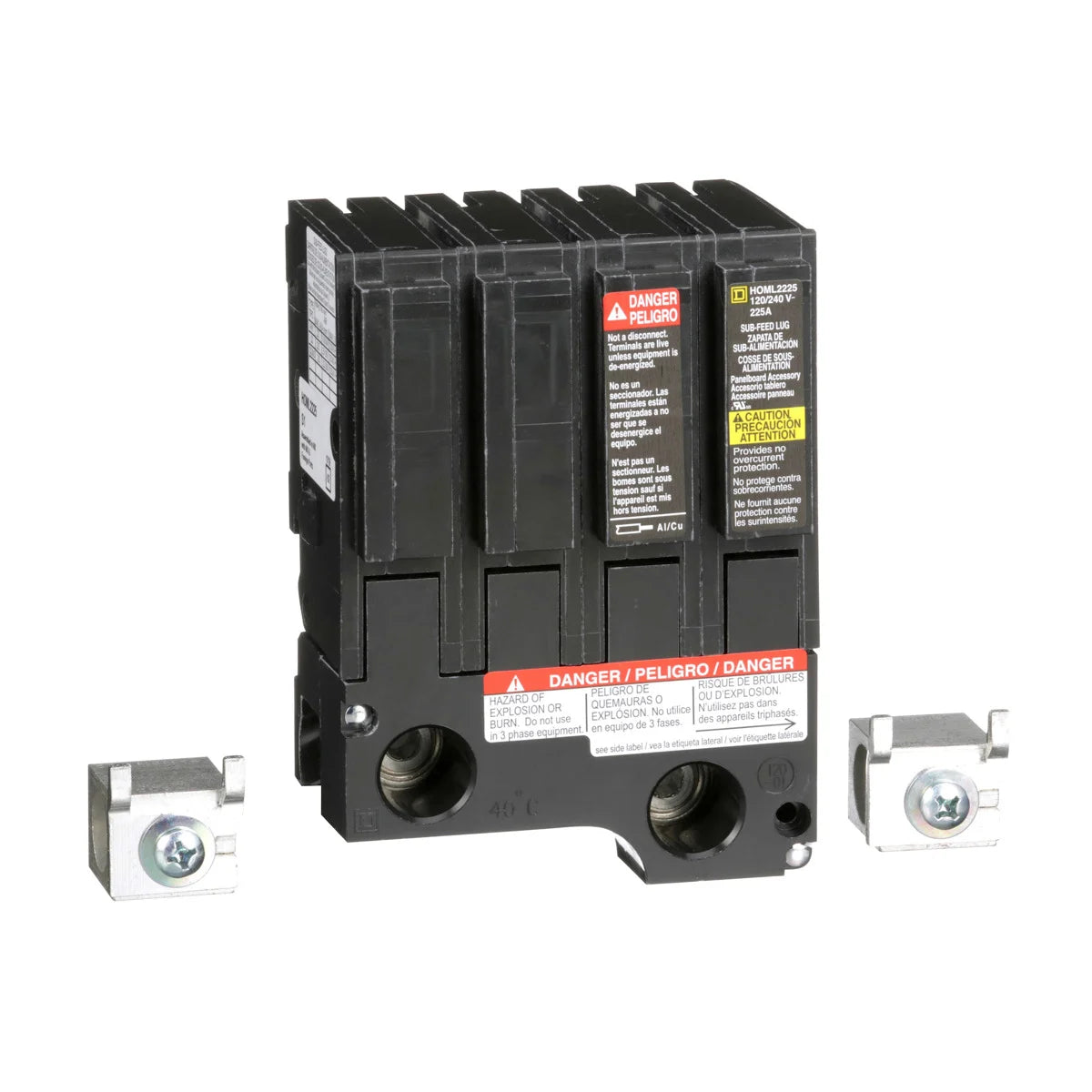

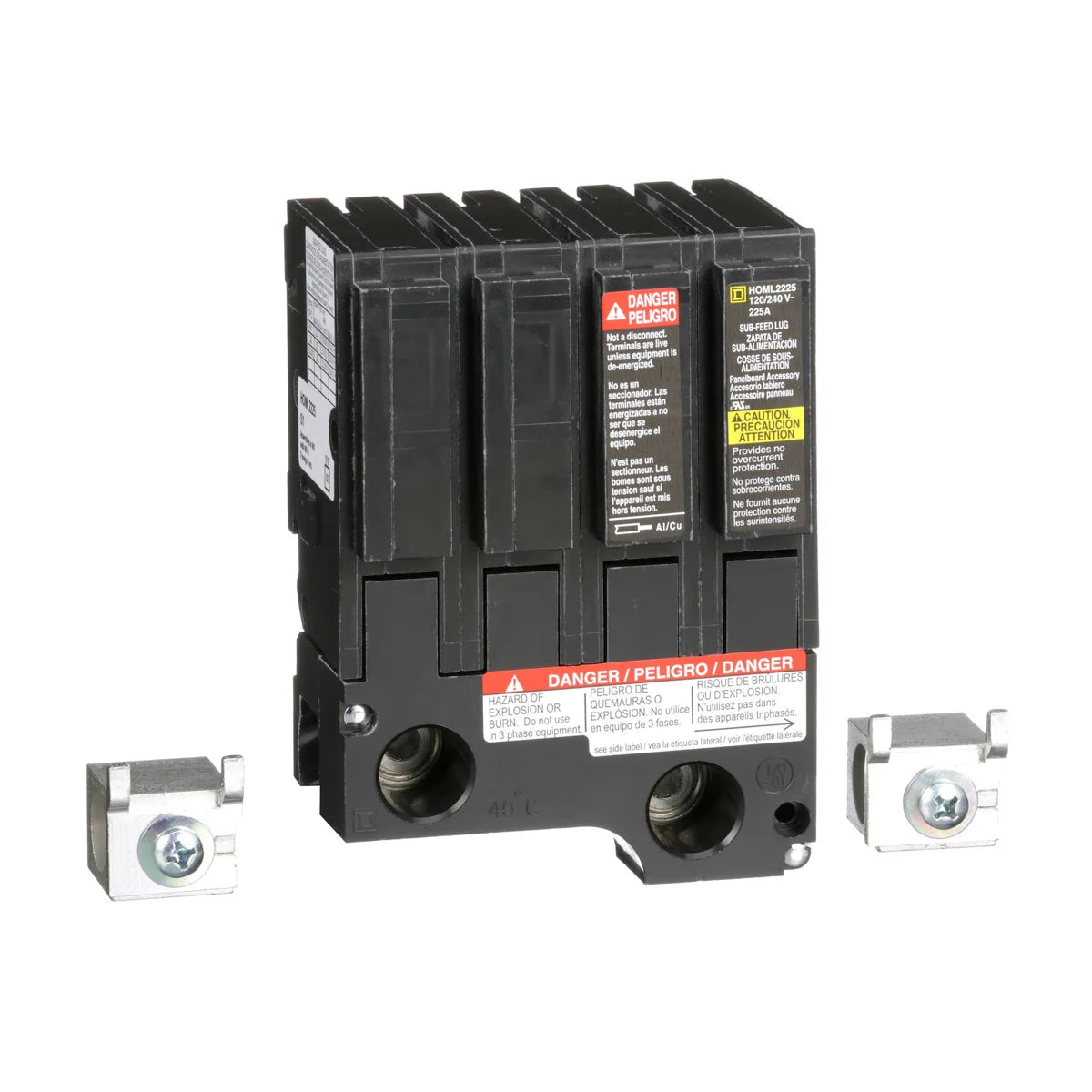

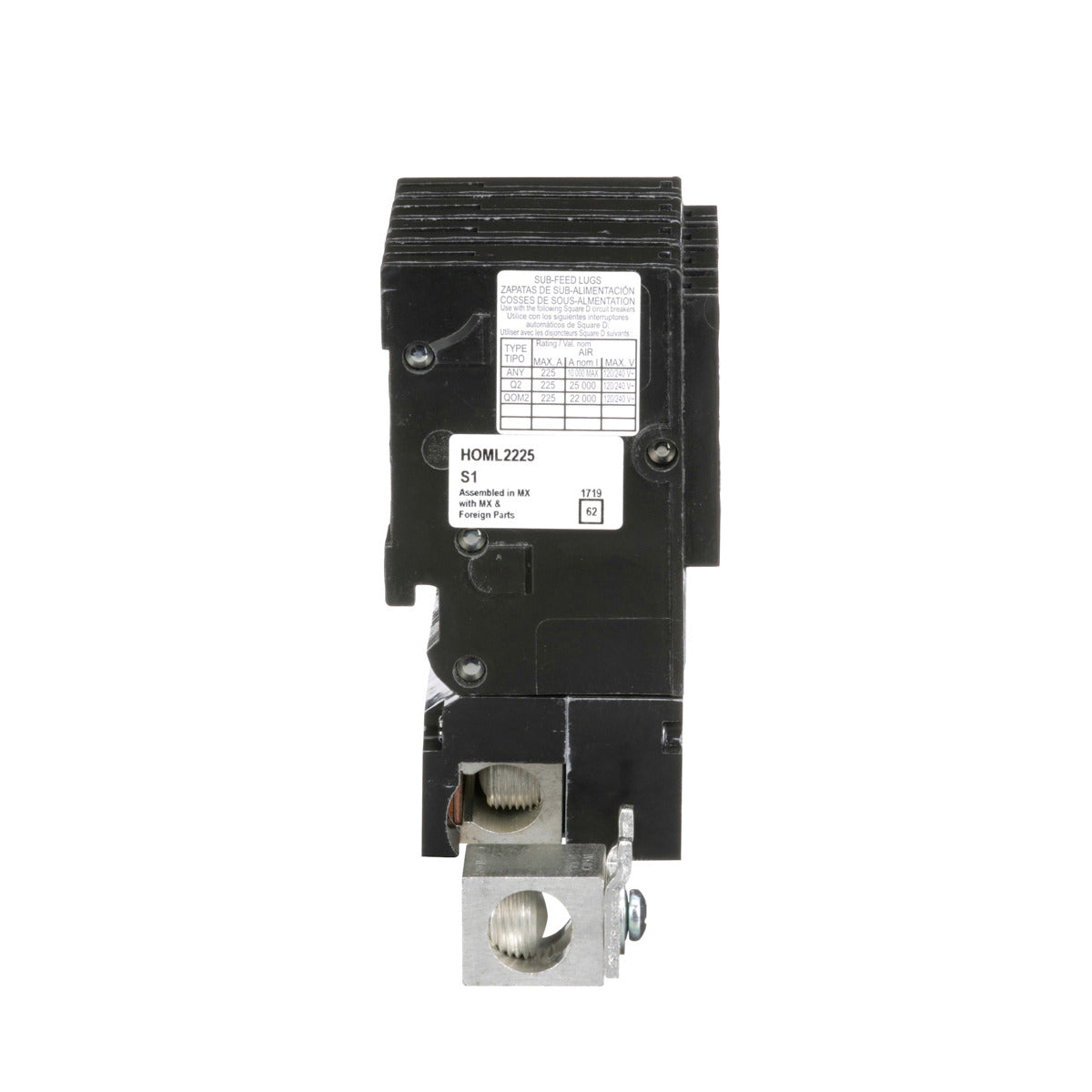

Square D HOML2225 2-Pole 225 Amp Plug-On Circuit Breaker Sub Feed Lug

Product Description

The Square D HOML2225 is a two-pole, 225 amp plug-on circuit breaker sub feed lug. This product is designed for use with Homeline load centers. It serves as an accessory for directing electrical power to different locations without providing overcurrent protection.

• Compatible with Homeline load center main lug interiors.
• Accepts wire sizes from AWG one to 300 kcmil for copper or aluminum.
• Rated for residential and industrial applications.

Product Highlights

This sub feed lug enables effective distribution of electrical loads and accepts a wide range of wire sizes, making it suitable for diverse installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOML2225
• Type: Circuit Breaker Sub-Feed Lug
• Current Rating: 225 Amp
• Number of Poles: 2 Pole
• Cable Size: AWG 1 to 300 kcmil
• Dimensions: 3.13 inches depth, 3.98 inches width, 5.39 inches height
• Country of Origin: Mexico
• Warranty: 18 months
