Square D HOME250SPA Enclosed Circuit Breaker 50 Amp 120/240 VAC NEMA 3R

Product Description

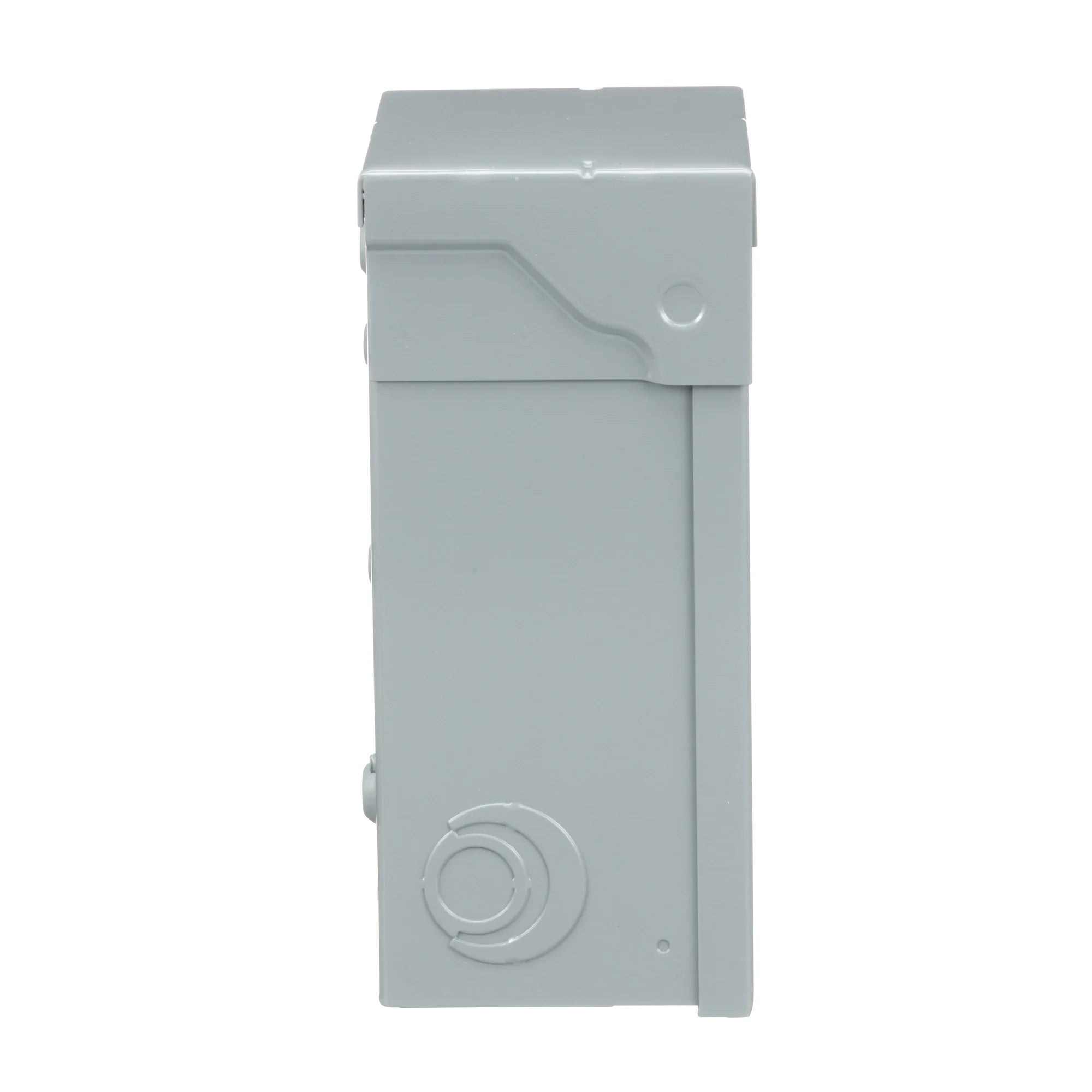

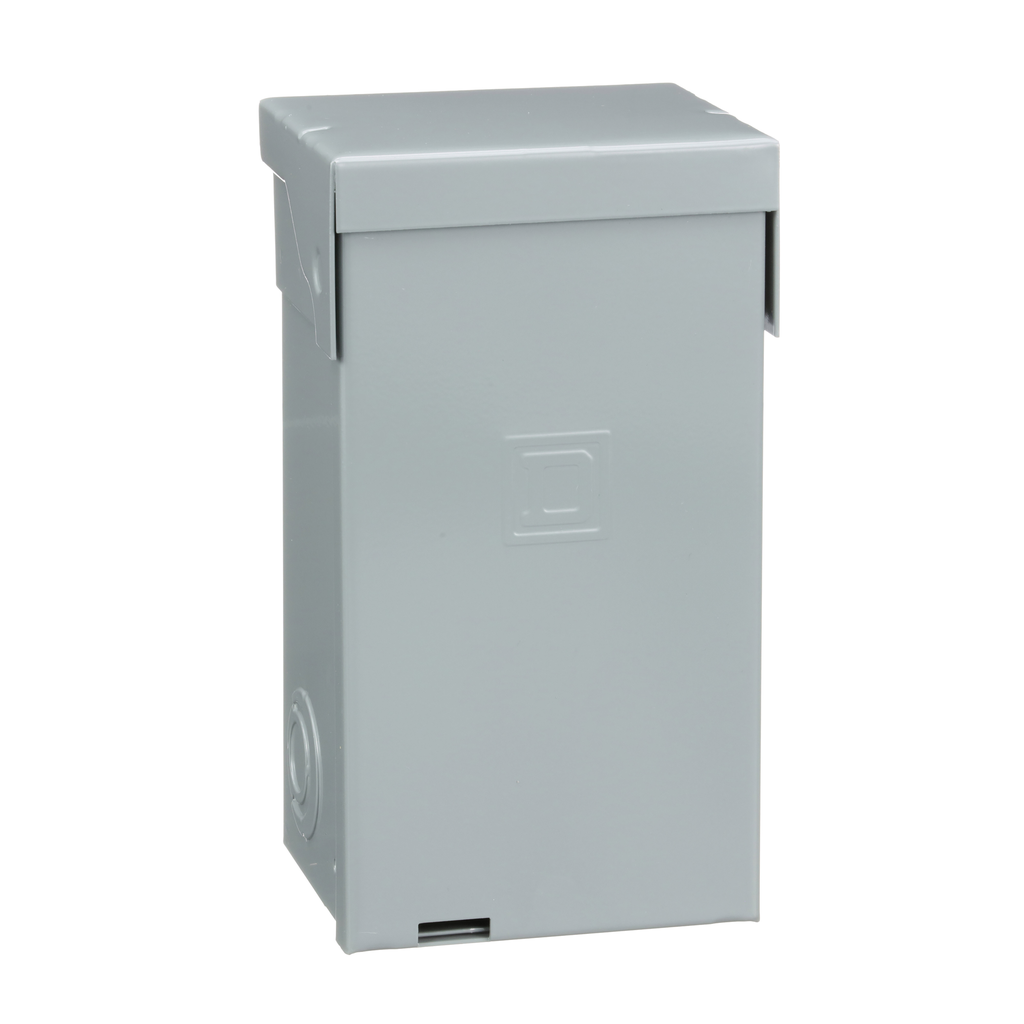

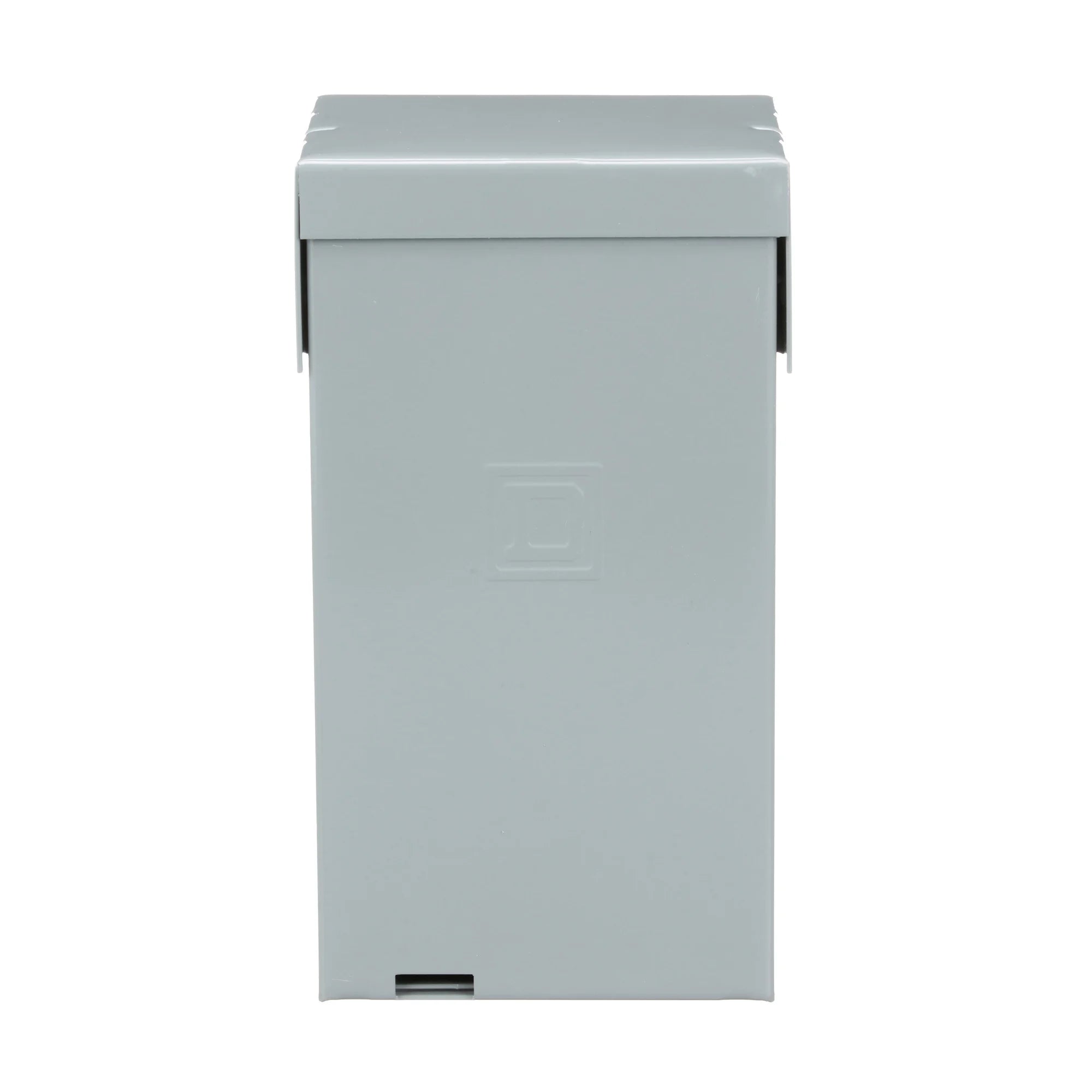

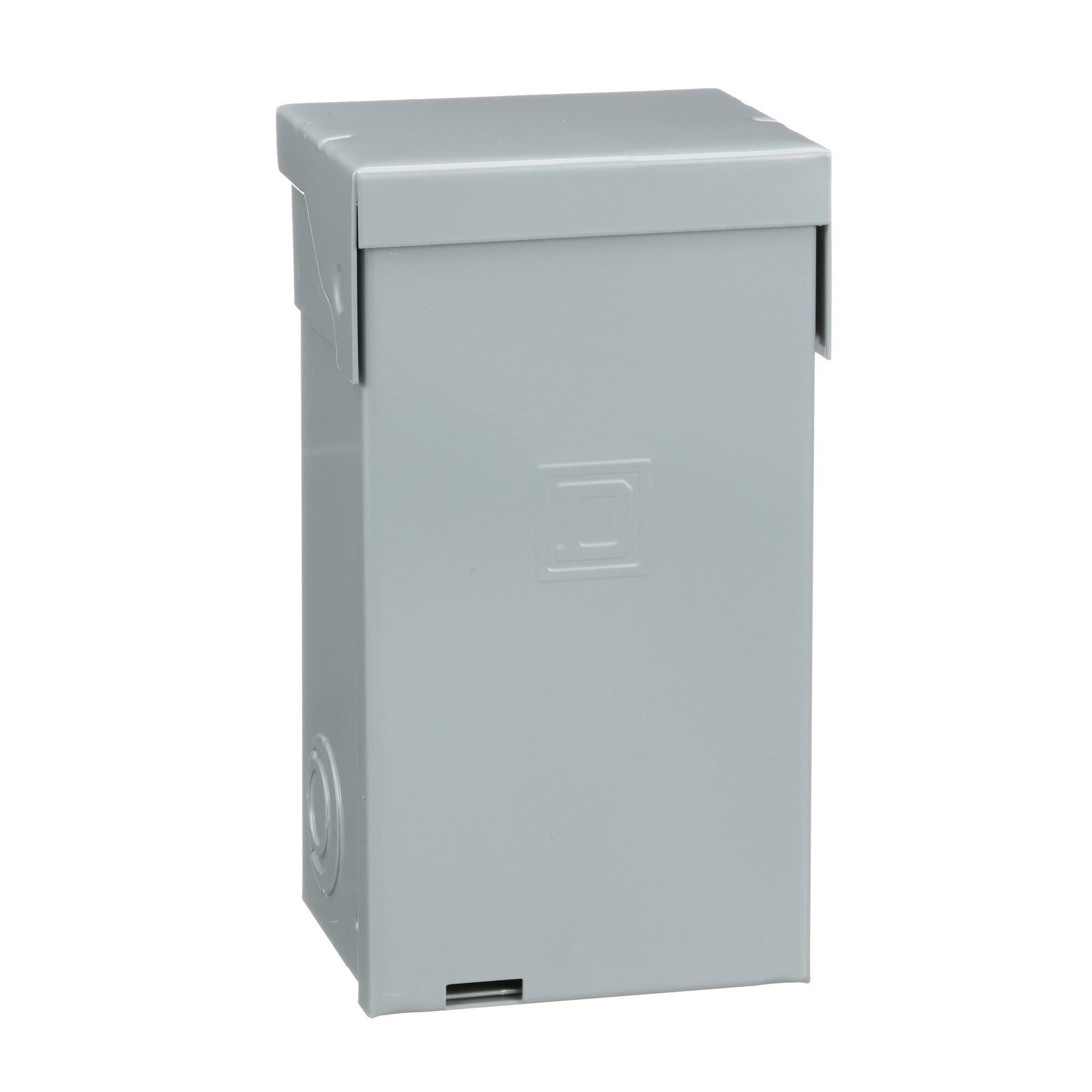

The Square D HOME250SPA is a 2-pole, 50 Amp enclosed circuit breaker designed for residential and industrial applications. It operates at 120/240 VAC and is housed in a NEMA 3R rainproof enclosure, offering reliable protection for electrical systems. Ideal for spa systems and other installations demanding safety and efficiency, this circuit breaker is built to meet rigorous standards.

• Two pole GFCI circuit breaker rated at fifty amps.
• NEMA 3R enclosure suitable for outdoor use.
• UL List and CSA certifications ensure high safety standards.

Product Highlights

The circuit breaker is designed for easy installation with box lug connections. It accepts a wire range from 8 AWG to 6 AWG copper or aluminum. It has a total of two spaces and a maximum breaking capacity of ten kA.

Product Information

Standard Information

• Brand: Square D
• MPN: HOME250SPA

Technical Specifications

• Catalog Number: HOME250SPA
• Voltage: 120/240 VAC
• Current Rating: 50 Amp
• Enclosure Type: NEMA 3R
• Breaking Capacity: 10 kA
• Dimensions: Height 9.37 inches, Width 4.88 inches, Depth 4.01 inches
• Wire Size Compatibility: AWG 8 to AWG 6
• Certifications: UL, CSA
