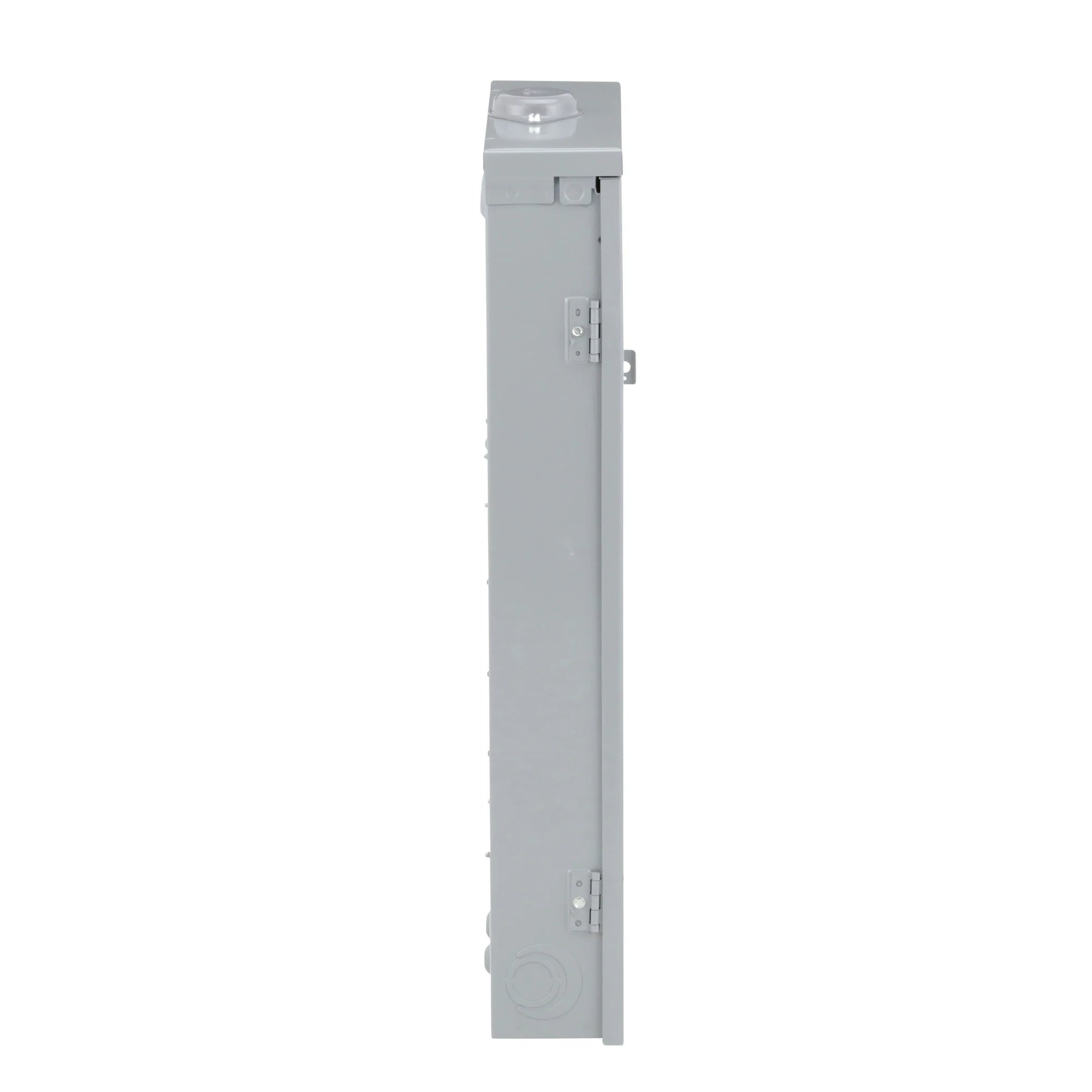

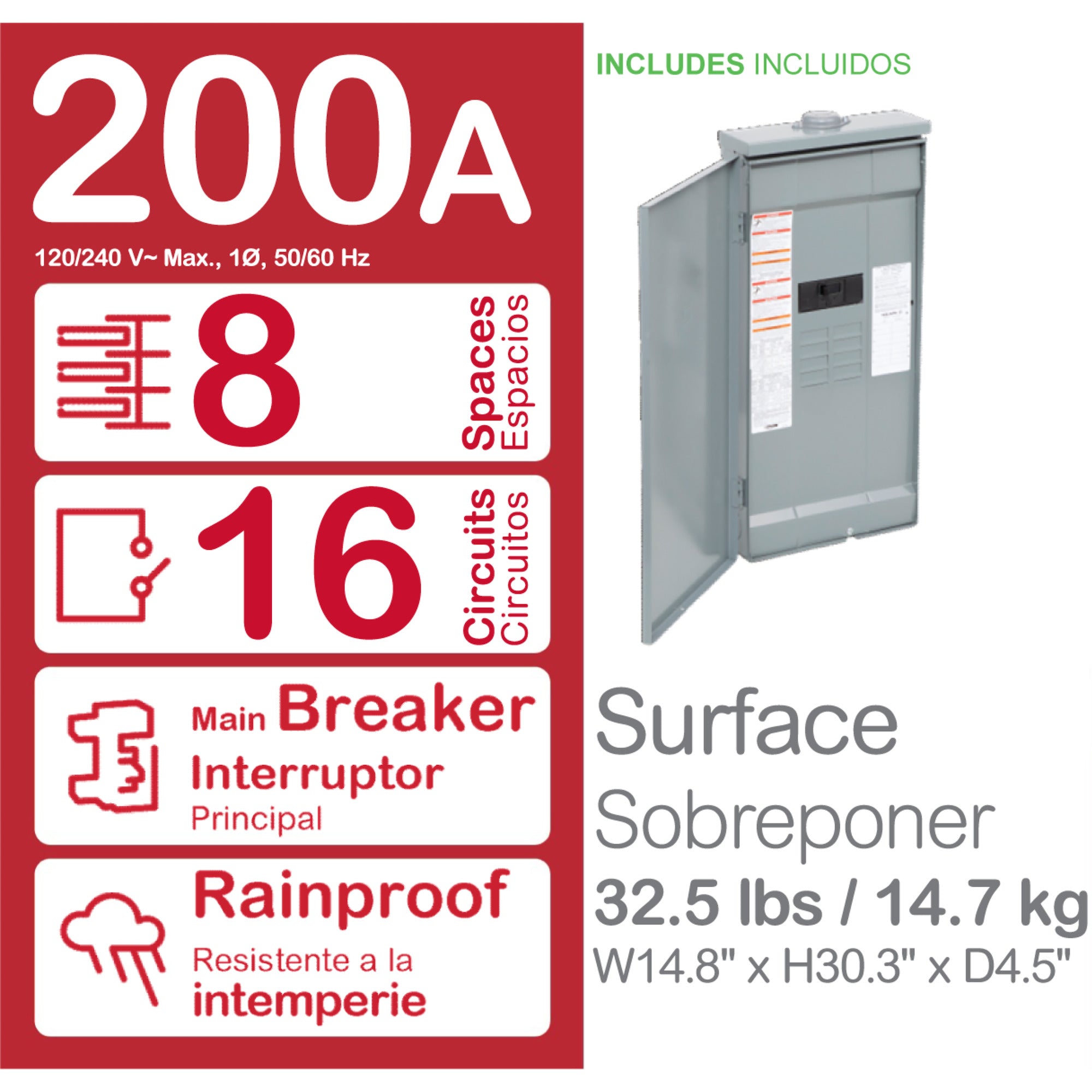

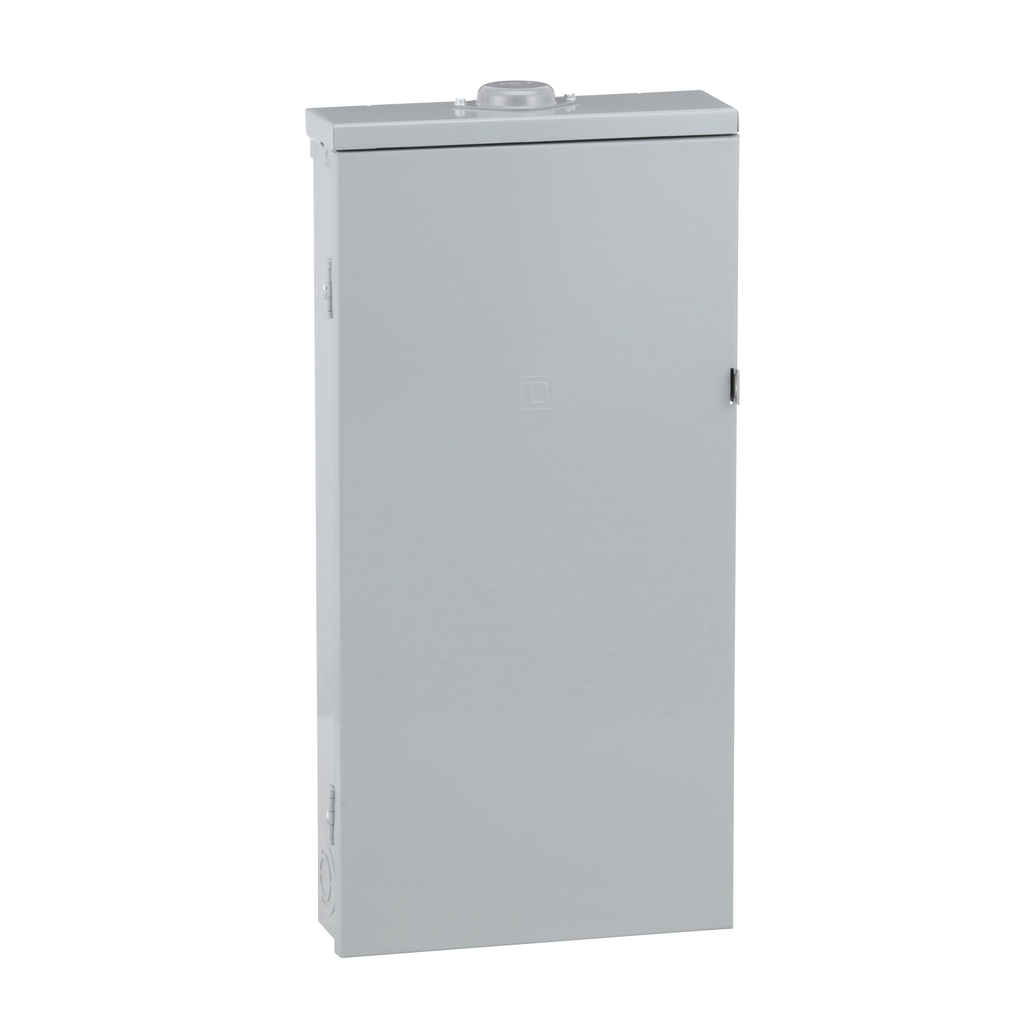

Square D HOM816M200PFTRB Load Center 200A 120/240 VAC 1-Phase 8-Space 16-Circuit NEMA 3R

Product Description

Square D HOM816M200PFTRB is a load center designed for 120/240 VAC systems. It has a capacity of 200 Amperes and features eight spaces for circuits. This one-phase load center is compliant with NEMA 3R standards for outdoor use.

• UL Listed for safety.
• Two-pole plug on neutral main supply breaker rated at 200A.
• Accommodates wire sizes from 4 AWG to 250 kcmil.

Product Highlights

This load center offers robust protection for residential and industrial electrical systems. It features a rainproof enclosure that supports reliable performance in various environments.

Product Information

Standard Information

• Catalog Number: HOM816M200PFTRB
• Brand: Square D

Technical Specifications

• MPN: HOM816M200PFTRB
• Voltage: 120/240 Volt
• Amperage: 200 Amp
• Number of Phases: 1
• Number of Spaces: 8
• Height: 29.84 inches
• Width: 14.76 inches
• Depth: 4.52 inches
• Enclosure Type: NEMA 3R
• Interrupt Rating: 22 kAIC
• Country of Origin: USA
