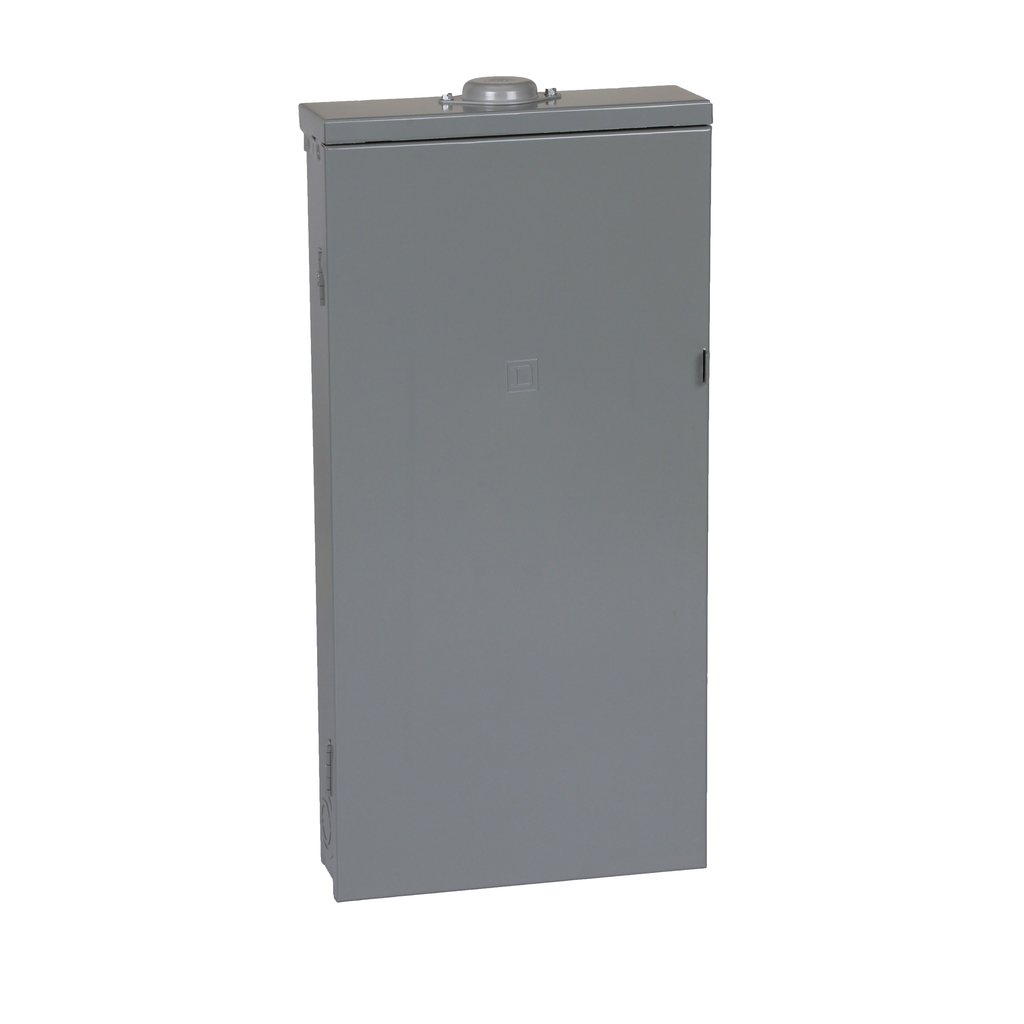

Square D HOM816M150PFTRB 120/240 VAC 150 Amp 1-Phase 8-Space 16-Circuit NEMA 1 Load Center

Product Description

Square D HOM816M150PFTRB is a load center designed for electrical distribution. It operates on 120 to 240 VAC and handles up to 150 amperes of current. This load center provides eight spaces for circuit breakers and sixteen circuits in total. It is suitable for residential and industrial installations.

• Features eight spaces and sixteen circuits
• Rated at 150 amps and 120/240 volts
• Complies with NEMA 3R for outdoor use

Product Highlights

This load center offers a plug-on neutral main supply circuit breaker, rated at 150A. Its enclosure is designed to withstand rain, making it suitable for outdoor installations. The load center has a breaking capacity of twenty-two kA, ensuring reliability and safety in electrical applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM816M150PFTRB
• Voltage: 120/240 Volt
• Current Rating: 150 Amp
• Number of Circuits: 16
• Number of Spaces: 8
• Enclosure Material: Steel
• Enclosure Rating: NEMA 3R
• Dimensions (H x W x D): 29.84 inches x 14.76 inches x 4.52 inches
