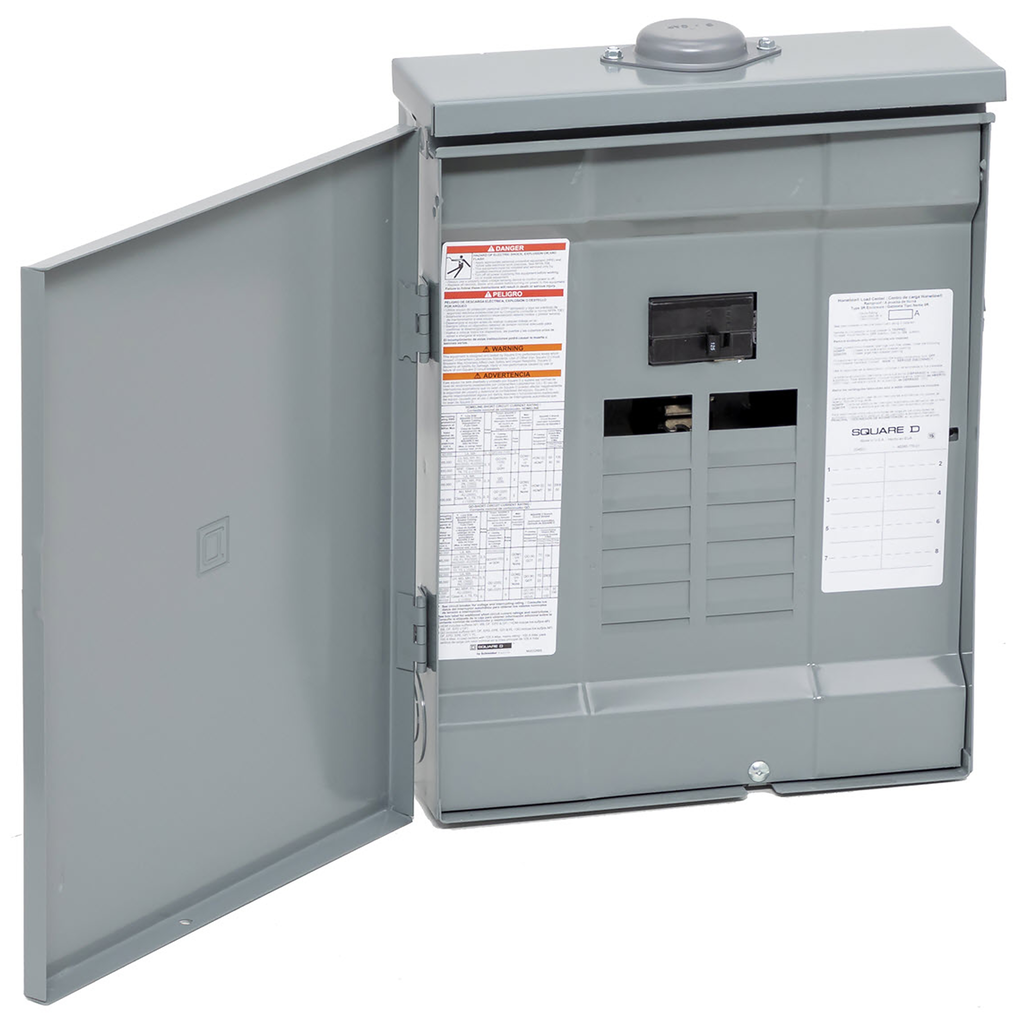

Square D HOM816M125PRB Load Center, Home, 125A, 1 Phase, NEMA3R

Product Description

The Square D HOM816M125PRB is a reliable load center designed to meet residential and industrial requirements. This load center supports Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. It offers 8 spaces in a NEMA 3R enclosure suitable for rain protection. This system has a two-pole plug-on neutral main supply circuit breaker rated at 125A 120/240 VAC. The unit delivers a breaking capacity of 22 kA, ensuring it can handle significant electrical loads safely.

Designed for indoor and outdoor use, the Square D load center accommodates a wire range of six AWG to one AWG copper or six AWG to two/zero AWG aluminum. The dimensions include a height of eighteen point nine two inches, a width of fourteen point seven five inches, and a depth of four point five two inches, making it compact and easy to install.

• UL Listed for safety and reliability
• 8 spaces with a maximum of 16 circuits
• Rainproof NEMA 3R enclosure

Product Highlights

This load center is suitable for various applications, protecting electrical systems and equipment while ensuring user safety.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM816M125PRB
• Country of Origin: United States
• Number of Phases: 1 Phase
• Height: 18.92 inches
• Width: 14.75 inches
• Depth: 4.52 inches
• Amperage: 125 Amp
• Voltage: 120/240 Volt
• Breaking Capacity: 22 kA
• Wire Size: 6 AWG to 2/0 AWG Aluminum / 6 AWG to 1 AWG Copper
• Certifications: UL Listed File E-6294
