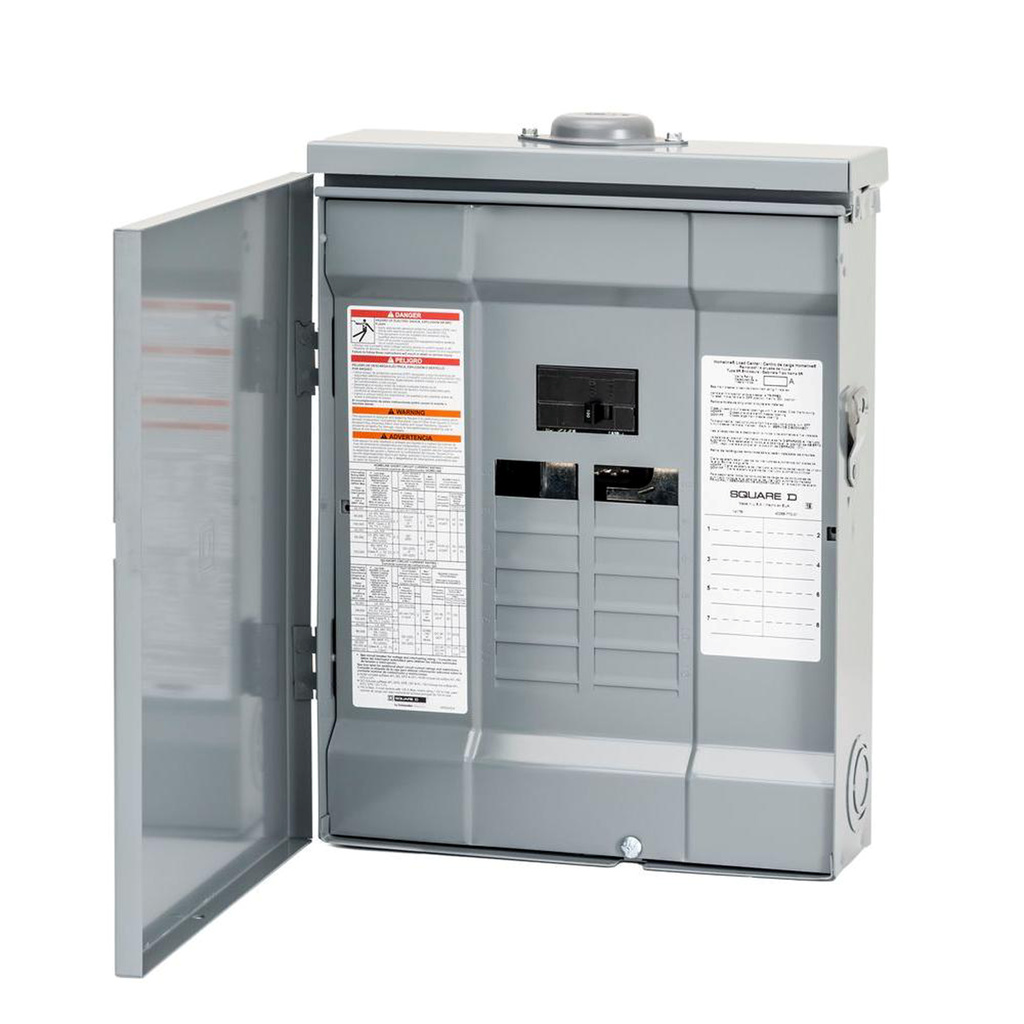

Square D HOM816M100PRB Load Center 100 Amp 1-Phase 8-Space NEMA 3R

Product Description

The Square D HOM816M100PRB is a load center rated at 100 amps and designed for single-phase use. This system operates at 120/240 VAC and provides a total of eight spaces and sixteen circuits. The NEMA 3R enclosure ensures it is suitable for outdoor applications while protecting the electrical components inside.

• Features eight spaces and sixteen circuits.
• Rated for 100 amps at 120/240 VAC.
• Constructed with a NEMA 3R rainproof enclosure.

Product Highlights

This load center is ideal for residential and industrial use, designed to protect electrical systems, equipment, and personnel.

Product Information

Standard Information

• Catalog Number: HOM816M100PRB
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage: 100 Amp
• Number of Circuits: 16
• Enclosure Type: NEMA 3R
• Dimensions: Height - 18.92 inches, Width - 14.75 inches, Depth - 4.52 inches
• Wire Size Compatibility: AWG 6 to 2/0 aluminum; AWG 6 to 1 copper
• Short Circuit Rating: 22 kA
• Country of Origin: USA
