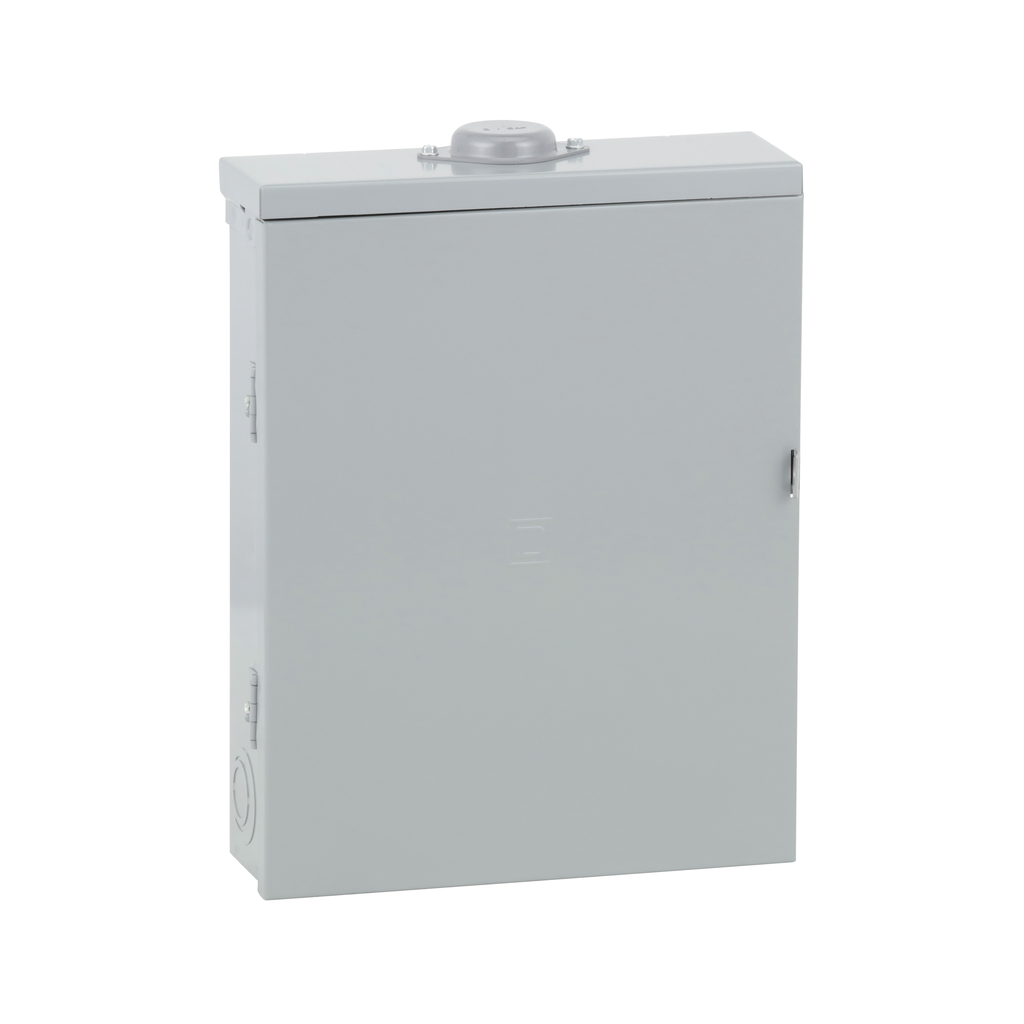

Square D HOM816L125PRB 120/240 VAC 125 Amp 1-Phase 8-Space 16-Circuit NEMA 1 Load Center

Product Description

The Square D HOM816L125PRB is a load center designed for electrical distribution and protection. It operates at 125 Amp and supports a single phase with a voltage of 120/240 VAC. It provides eight spaces for circuit breakers and is designed for residential and commercial applications.

• UL Listed for quality and safety
• Suitable for indoor use and NEMA 3R rated for rainproof protection
• Accepts wire sizes from 6 AWG to 2/0 AWG aluminum or 6 AWG to 1 AWG copper

Product Highlights

This load center combines versatility with safety features such as ground fault circuit breakers and arc fault interrupters. It is essential for protecting electrical systems in various settings.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM816L125PRB
• Voltage: 120/240 Volt
• Amperage: 125 Amp
• Number of Spaces: 8
• Number of Circuits: 16
• Enclosure Type: NEMA 3R
• Height: 18.92 inches
• Width: 14.75 inches
• Depth: 4.52 inches
• Interrupt Rating: 10 kAIC
• Country of Origin: USA
