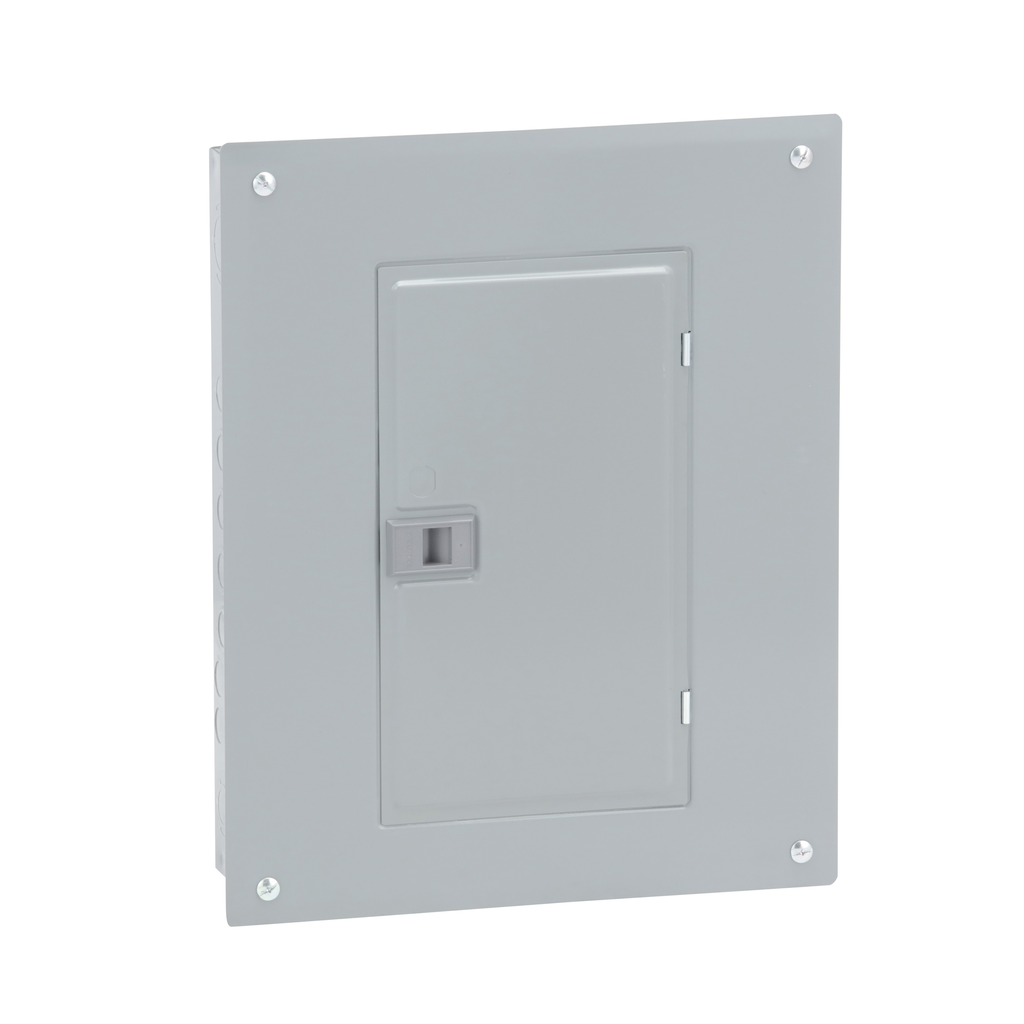

Square D HOM816L125PGC Load Center 125 Amp 1 Phase 8 Space 16 Circuit NEMA 1

Product Description

The Square D HOM816L125PGC is a load center designed for residential and industrial applications. This system is rated for 125 Amps at 120/240 Volts and is a single-phase unit. It features eight spaces and sixteen circuits, suitable for various electrical configurations. The load center is UL Listed and includes box lugs that accommodate AWG power cables from six to two-aught aluminum or six to one AWG copper. The device is equipped with a grounding bar and is packaged with a combination flush and surface cover. This model provides a breaking capacity of ten kA, ensuring reliable electrical system protection.

• Rated for indoor use with NEMA 1 enclosure.
• Includes grounding bar and box lugs for easy connection.
• Area of application encompasses residential and commercial settings.

Product Highlights

This load center is recognized for its safety, flexibility, and compatibility with a wide range of circuit types.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Type: Load Center
• Amperage: 125 Amp
• Voltage: 120/240 Volt
• Number of Spaces: 8
• Number of Circuits: 16
• Number of Phases: 1 Phase
• Enclosure Material: Welded Steel
• Surface Finish: Baked Enamel Gray
• Interrupt Rating: 10 kAIC
• Wire Size: AWG 6 to 2/0 aluminum; AWG 6 to 1 copper
• Ambient Air Temperature: 23 degrees F to 104 degrees F
• Height: 17.92 inches
• Width: 14.25 inches
• Depth: 3.74 inches
