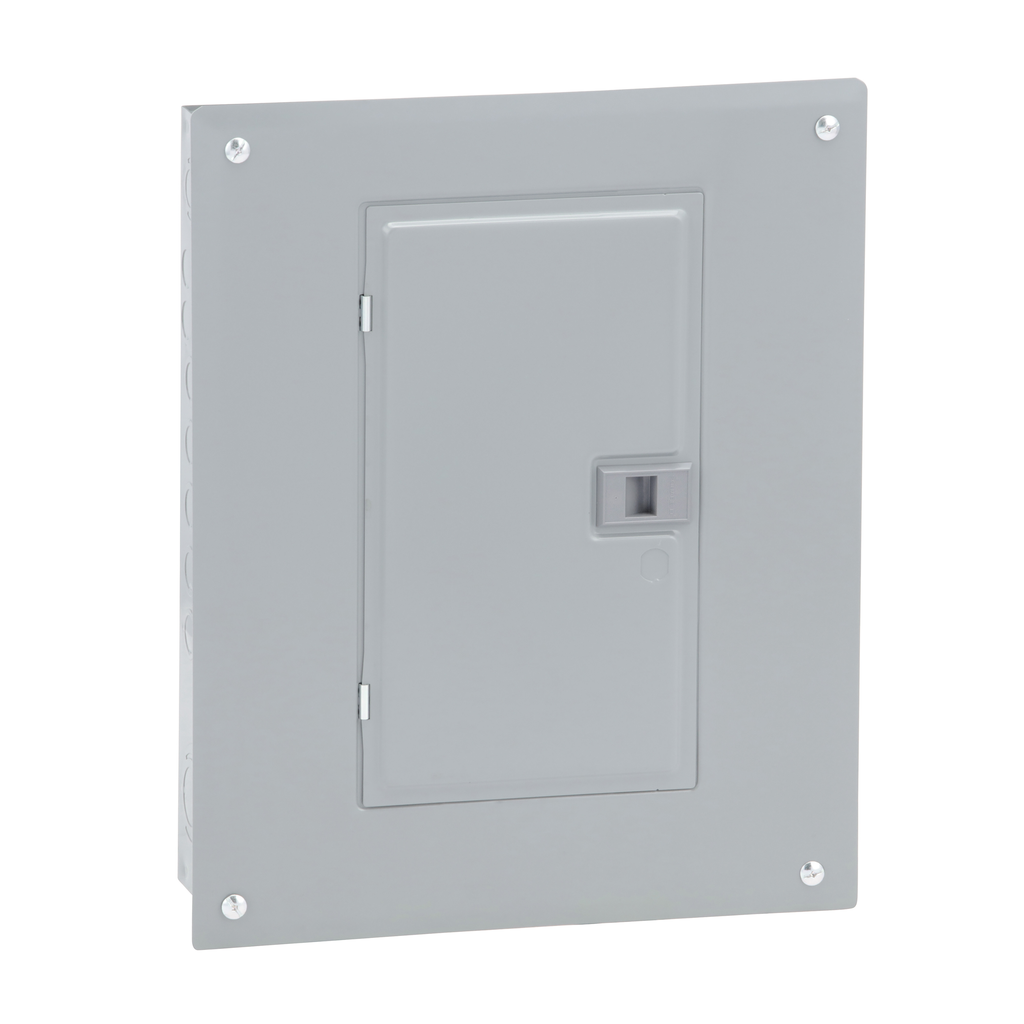

Square D HOM816L125PC 120/240 VAC 125 Amp 1-Phase 8-Space 16-Circuit NEMA 1 Load Center with Cover

Product Description

The Square D HOM816L125PC is a load center designed for residential and industrial applications. Rated at 125 Amps, this load center operates at 120/240 volts AC and supports both indoor and rainproof installations. Its design features eight spaces and accommodates up to 16 circuits.

• Includes convertible mains rated for 125A.
• 10 kA breaking capacity.
• Accepts wire sizes from AWG 6 to AWG 2/0 for aluminum and AWG 6 to AWG 1 for copper.

Product Highlights

This load center is UL Listed and provides robust protection for electrical systems, ensuring safety for equipment and users. The NEMA 1 enclosure is suited for indoor use and incorporates a combination flush/surface cover type.

Product Information

Standard Information

• Product Type: Load Center
• Brand: Square D

Technical Specifications

• Catalog Number: HOM816L125PC
• Phase: 1
• Amperage: 125 Amp
• Voltage: 120/240 Volt
• Number of Spaces: 8
• Maximum Number of Circuit Breakers: 16
• Cover Type: Combination flush/surface cover
• NEMA Size: 1
• Height: 17.92 inches
• Width: 14.25 inches
• Depth: 3.74 inches
