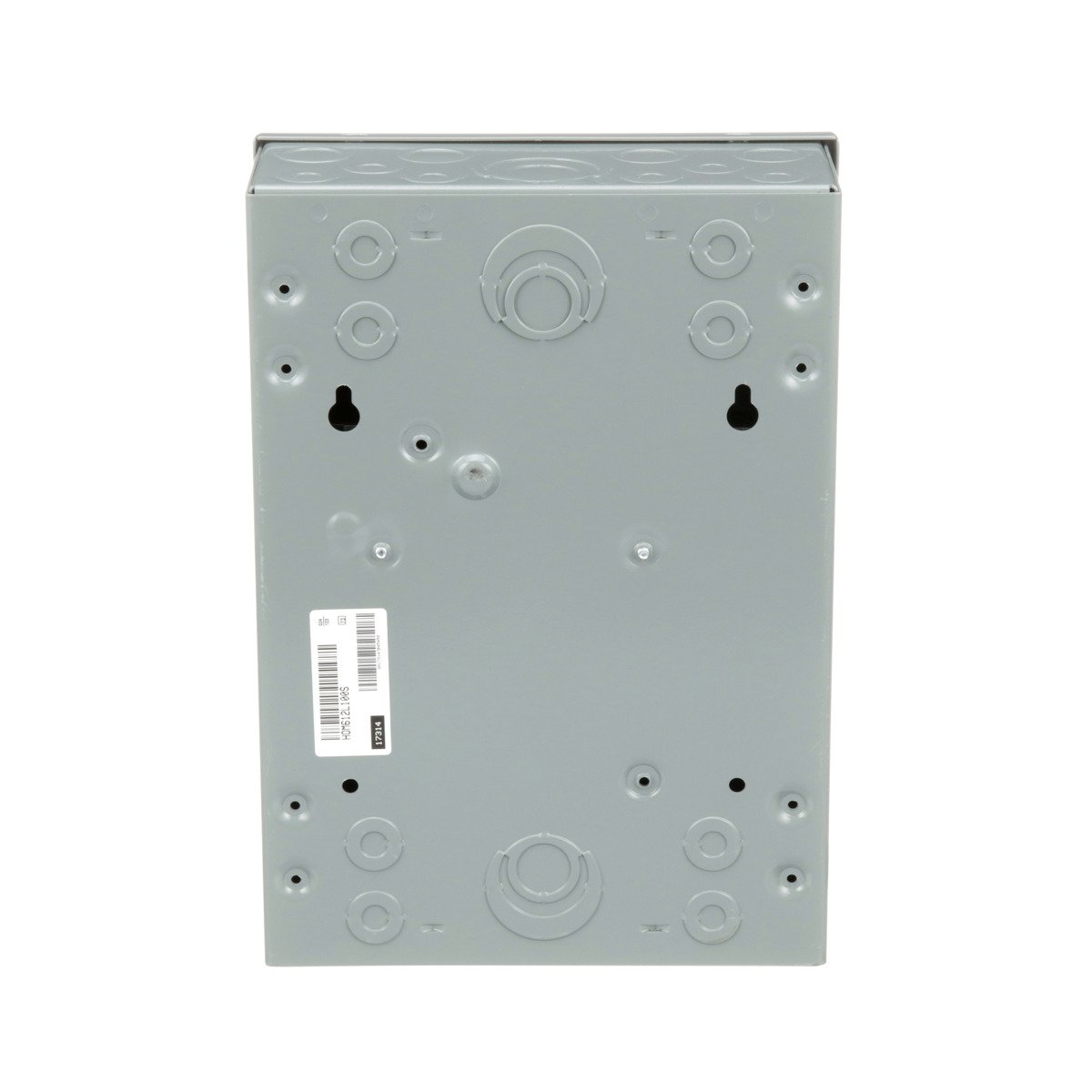

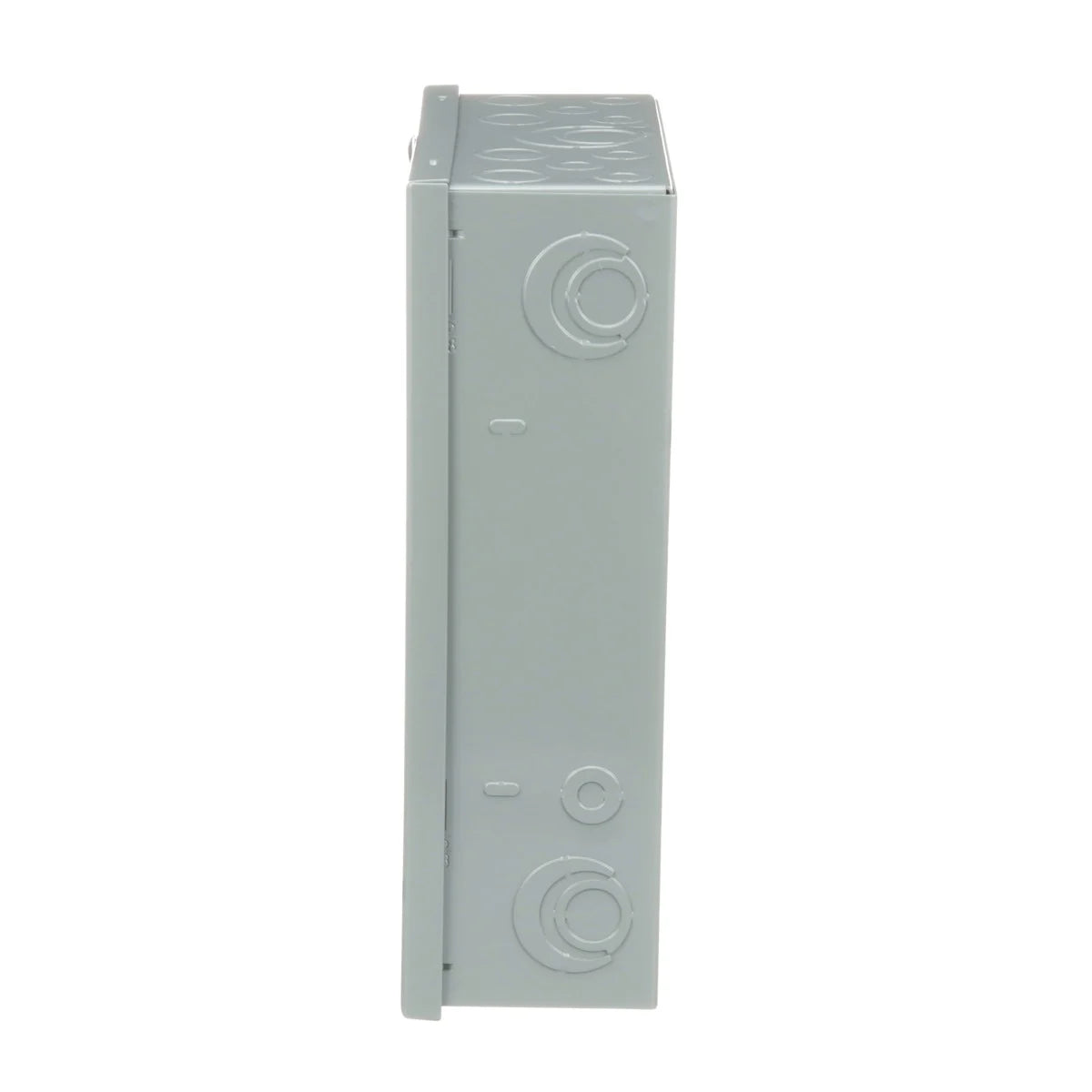

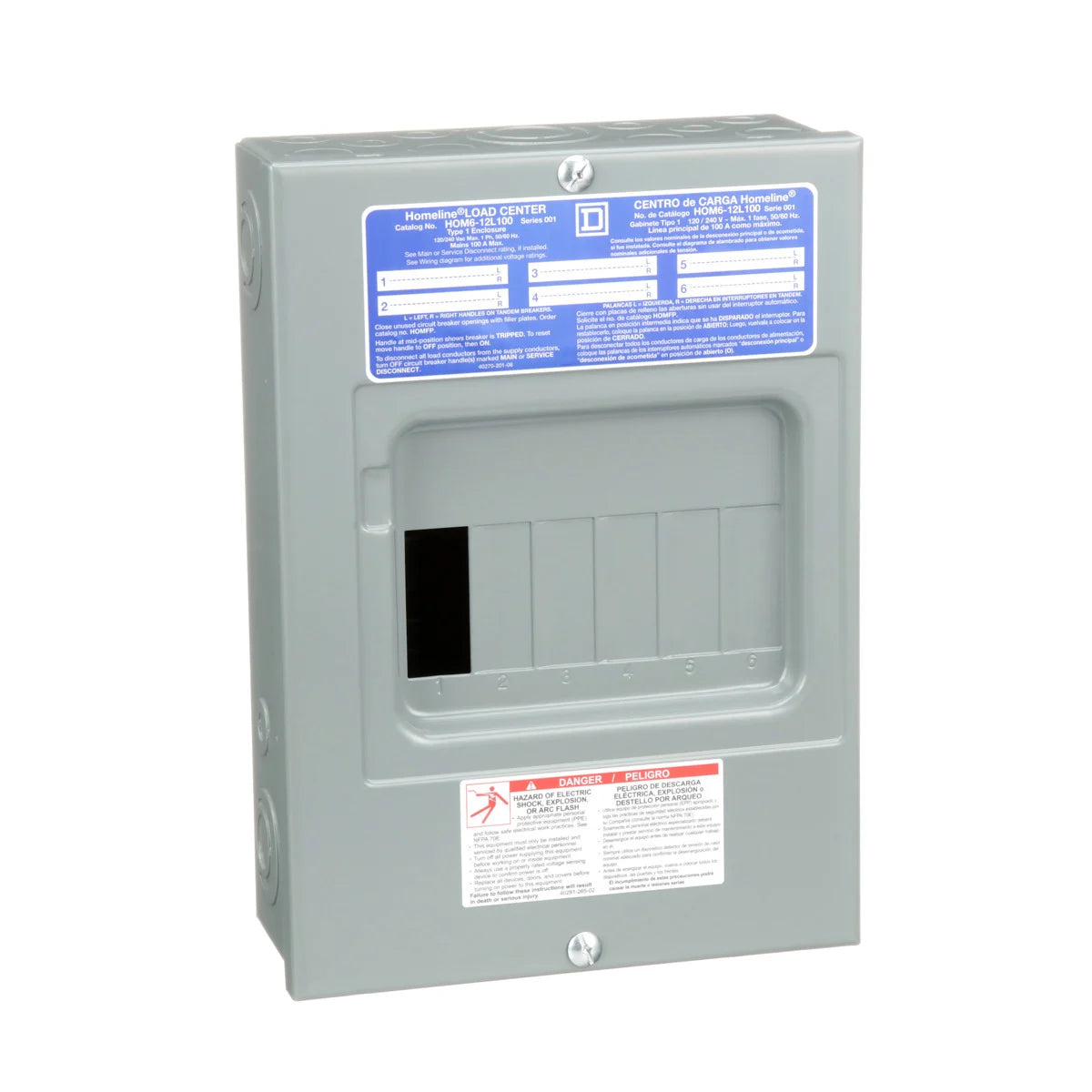

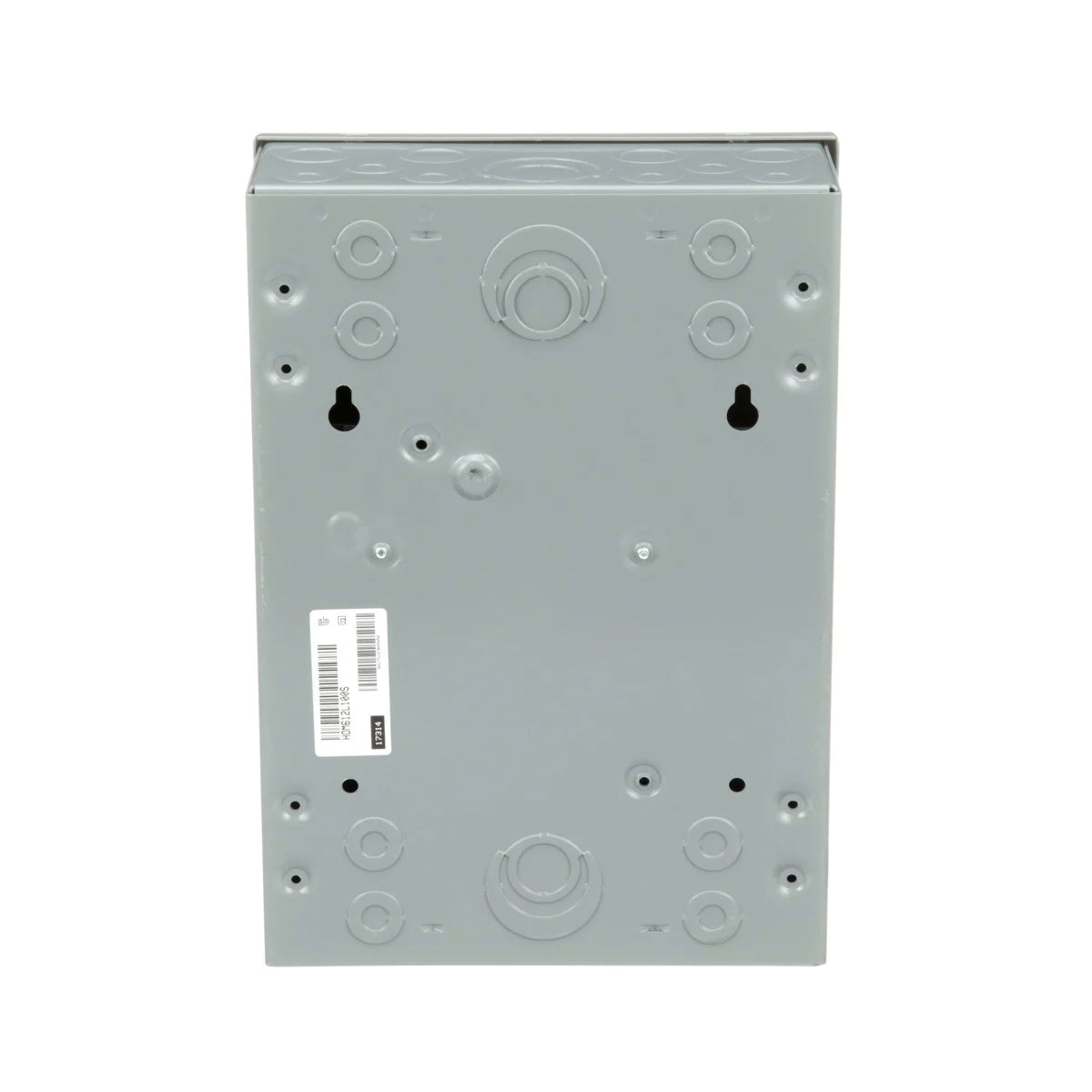

Square D HOM612L100S Load Center 100 Amp 1 Phase 6 Space 12 Circuit NEMA 1

Product Description

The Square D HOM612L100S is a load center designed for residential and industrial use. It has a rating of 100 amps and operates on 120/240 volts. This load center comes with 6 spaces and 12 circuits, making it suitable for a variety of electrical needs. The enclosure is NEMA 1 rated for indoor installation and is equipped with fixed main lugs for secure electrical connections. This model supports wires ranging from AWG 6 to AWG 1 copper or aluminum.

• 100 Amp capacity
• NEMA 1 indoor enclosure
• UL Listed for safety

Product Highlights

The load center allows for use with a full range of circuit breakers including ground fault and arc fault types. With a 10 kA interrupt rating, it provides reliable performance in protecting electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM612L100S
• Depth: 3.81 inches
• Height: 12.55 inches
• Width: 8.89 inches
• Current: 100 Amp
• Voltage: 120/240 Volt
• Number of Circuits: 12
• Phase: 1
• Enclosure Material: Steel
• Warranty: Lifetime
• Country of Origin: United States
• Certifications: UL Listed
