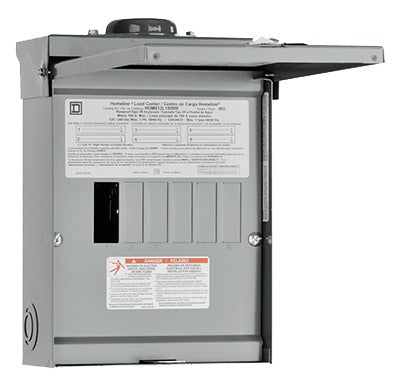

Square D HOM612L100RBCP 100A Rainproof Load Center

Product Description

The Square D HOM612L100RBCP is a 100-amp main lugs load center rated for rainproof outdoor installations and configured as a service entrance enclosure. It provides 6 spaces with capacity for up to 12 single-pole breakers, making it a compact solution for subpanel applications or service entrance setups where a main breaker is not required. The main lugs configuration allows incoming feeder conductors to land directly on the bus, which suits installations where overcurrent protection is provided upstream. A licensed electrician installs this unit in residential or light commercial applications. For grounding, use the compatible ground bar PK7GTA, which is sold separately.

This load center is suited for outdoor service entrance use where the enclosure must resist rain and weather exposure. The 6-space, 12-circuit configuration fits applications with moderate branch circuit demands, such as detached garages, outbuildings, pool houses, and small commercial outbuildings. It accepts Homeline single-pole and double-pole breakers within its rated space count. The main lugs design requires an upstream disconnecting means per NEC requirements when used as a service entrance device.

Key Features

• 100-amp main lugs rating for direct feeder termination without an integral main breaker
• Rainproof enclosure rated for outdoor service entrance applications
• 6 spaces accommodating up to 12 single-pole circuit positions
• Configured for use as a service entrance device per listed application
• Compatible with optional ground bar PK7GTA for grounding conductor termination

Compatibility

Designed as a service entrance or subpanel load center accepting Homeline series single-pole and double-pole breakers. Use with ground bar PK7GTA for grounding terminations. No additional specific compatible model numbers were provided in the product data.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the upstream feeder and verify absence of voltage before making any connections. When used as a service entrance device, an external disconnecting means is required by NEC Article 230. The PK7GTA ground bar must be installed separately to terminate equipment grounding conductors.
