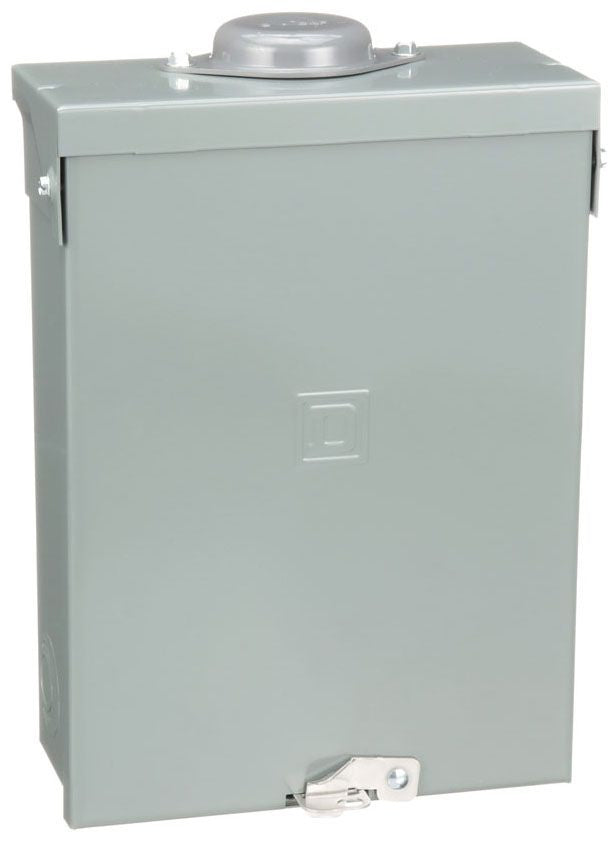

Square D HOM612L100RB Load Center Hom Mlo 240V 100A 1Ph 6Sp

Brand: SQUARE D
SKU: HOM612L100RB
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$14.99
$14.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Square D HOM612L100RB is a load center designed for residential and industrial applications. This unit operates at 240 volts and provides a 100 ampere rating. It features a fixed main lug configuration and is UL approved.

  • Max of 12 circuits.
  • Dimensions: 8.88 inches wide, 4.27 inches deep, and 12.65 inches high.
  • Made with a rainproof NEMA 3R enclosure.

Product Highlights

This load center allows for safe and efficient management of electrical systems.

Product Information

Standard Information

  • Manufacturer: Square D
  • Type: Fixed Main Lug

Technical Specifications

  • Interrupting Rating: 10 Kiloampere
  • Voltage Rating: 120/240 VAC
  • Current Rating: 100 Ampere
  • Maximum Number of Circuits: 12
  • Maximum Number of Spaces: 6
  • Cover Type: Surface
  • Enclosure Type: NEMA 3R, Outdoor/Rainproof
  • Main Wire Size: 8 to 1 AWG (Aluminum/Copper)
