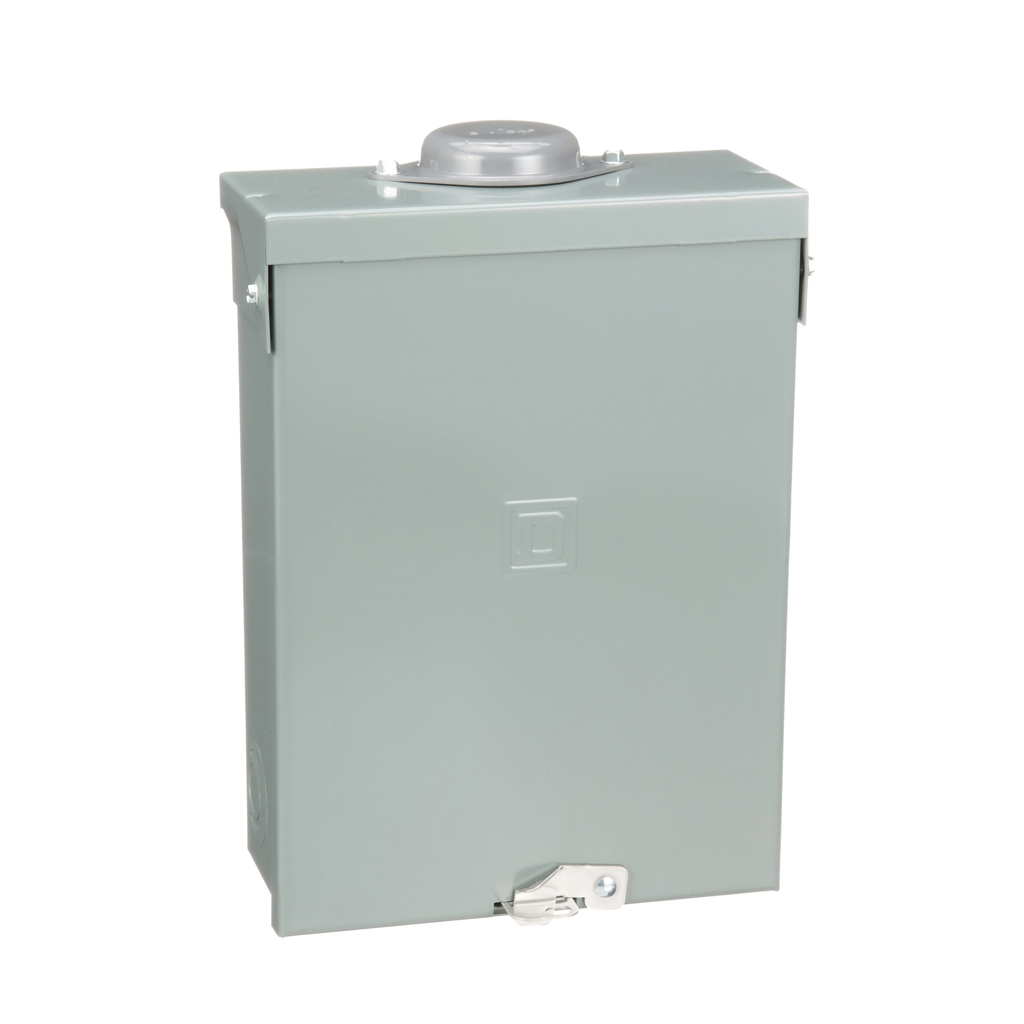

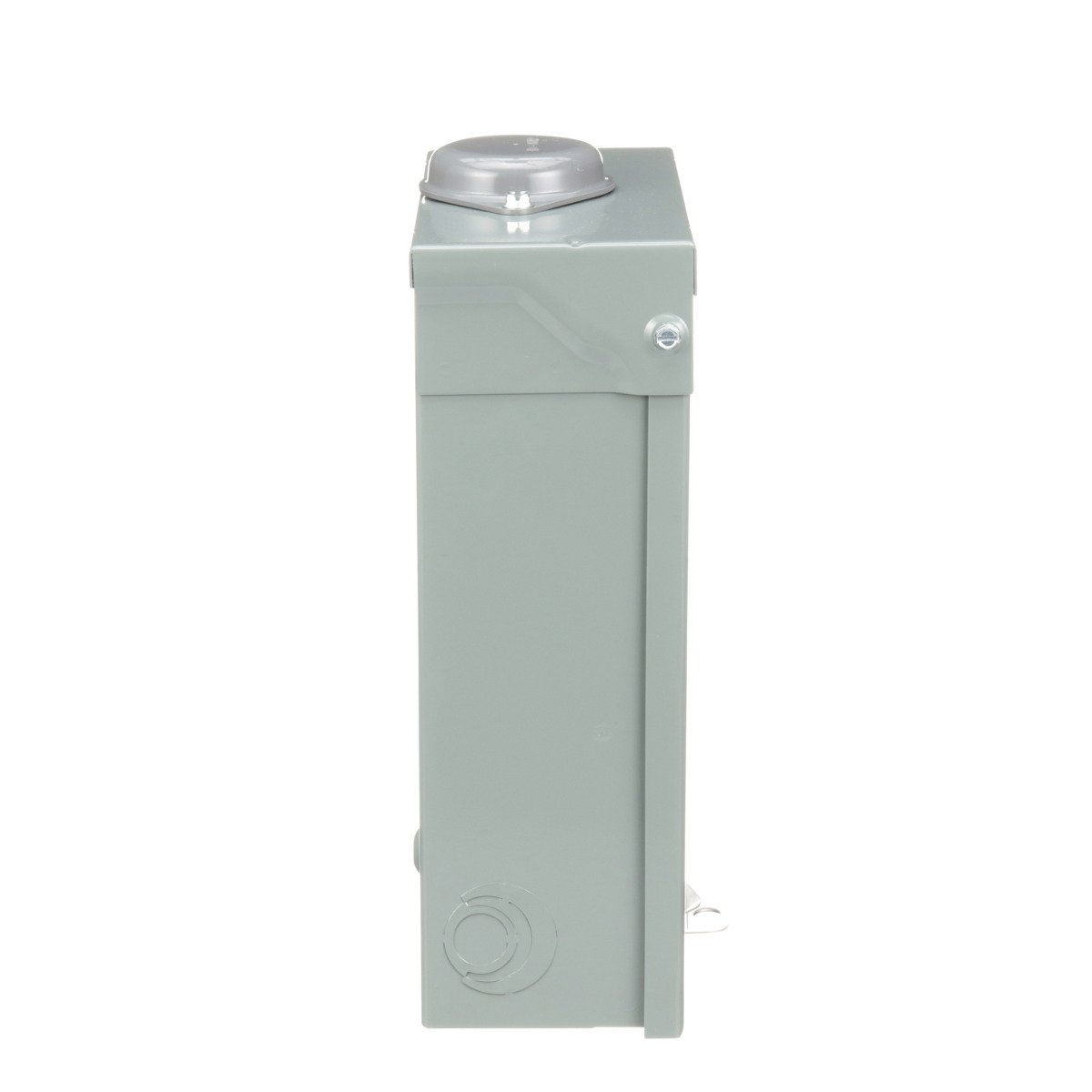

Square D HOM612L100RB Load Center 100 Amp 6 Space NEMA 3R

Product Description

The Square D HOM612L100RB is a load center designed for reliable electrical service. Rated at 100 Amperes and suitable for 120/240 Volts, this model provides 6 spaces for circuit breakers. It is constructed for outdoor use in a NEMA 3R enclosure, offering protection against rain and other elements.

• UL Listed for safety compliance.
• Supports a variety of circuit breakers including ground fault and arc fault types.
• Accommodates wire sizes from AWG 8 to AWG 1.

Product Highlights

This load center is ideal for residential and light commercial applications. It protects electrical systems and ensures safe operation.

Product Information

Standard Information

• Catalog Number: HOM612L100RB
• Manufacturer: Schneider Electric

Technical Specifications

• Current Rating: 100 Amp
• Voltage: 120/240 Volt
• Number of Spaces: 6
• Number of Circuits: 12
• Interrupt Rating: 10 kA
• Enclosure Type: NEMA 3R
• Height: 12.63 inches
• Width: 8.89 inches
• Depth: 4.25 inches
