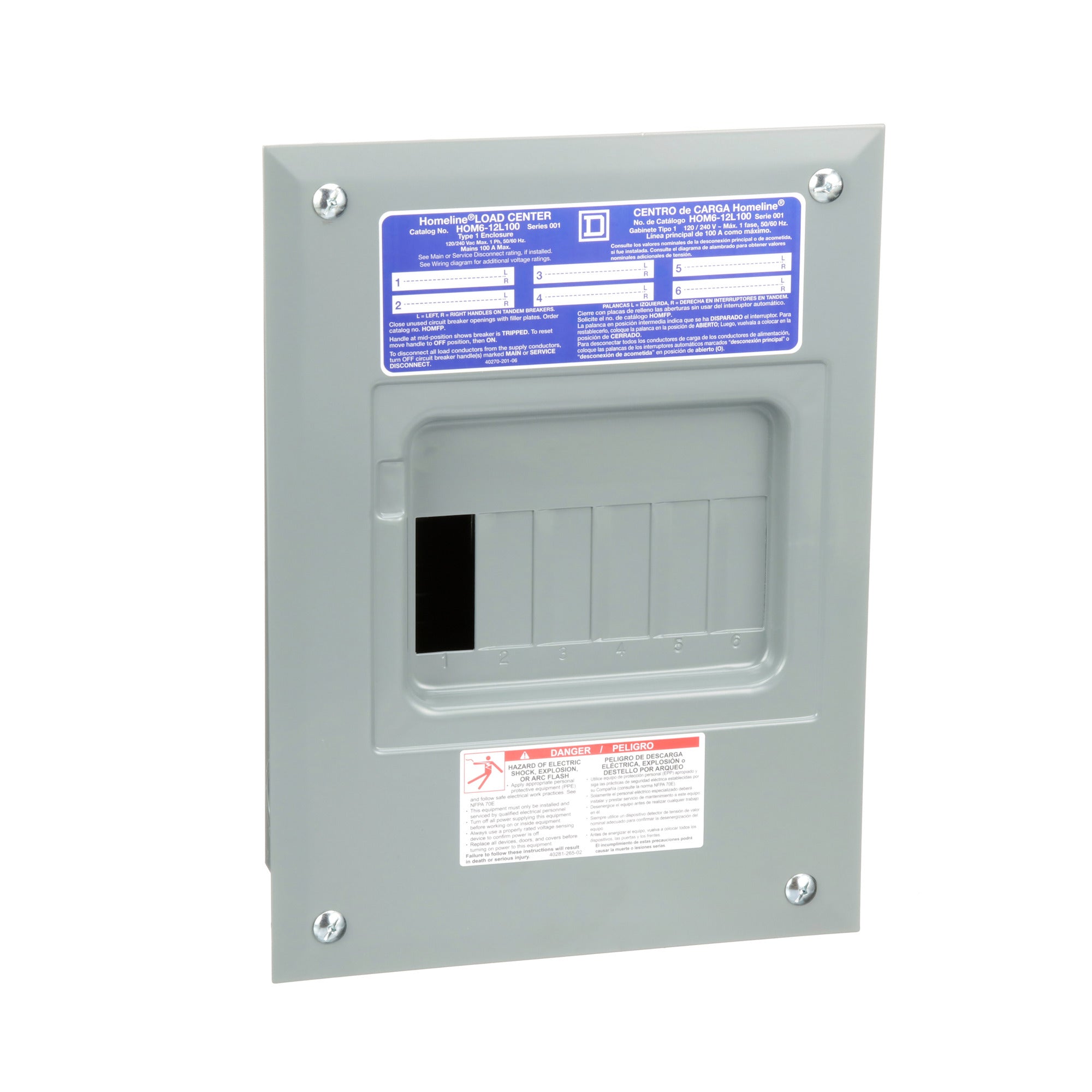

Square D HOM612L100F 120/240 VAC 100 Amp 1-Phase 6-Space 12-Circuit NEMA 1 Load Center

Product Description

The Square D HOM612L100F is a 120/240 VAC 100 Amp load center designed for residential and industrial use. It features a NEMA 1 indoor enclosure, providing six spaces for circuit breakers and a capacity of up to 12 circuits. This load center is equipped with fixed main lugs and offers a breaking capacity of 10 kA. It accepts a wire range of 8 AWG to 1 AWG copper or aluminum wire. The unit is suitable for indoor use and is designed to protect electrical systems, equipment, and personnel.

• Rated for 100 Amps with a 10 kA breaking capacity.
• Includes six spaces in a NEMA 1 indoor enclosure.
• Accepts wires from 8 AWG to 1 AWG copper or aluminum.

Product Highlights

This load center is ideal for managing electrical distribution in various applications, ensuring safety and efficiency.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM612L100F
• Current: 100 Amp
• Voltage: 120/240 Volt
• Number of Spaces: 6
• Number of Circuits: 12

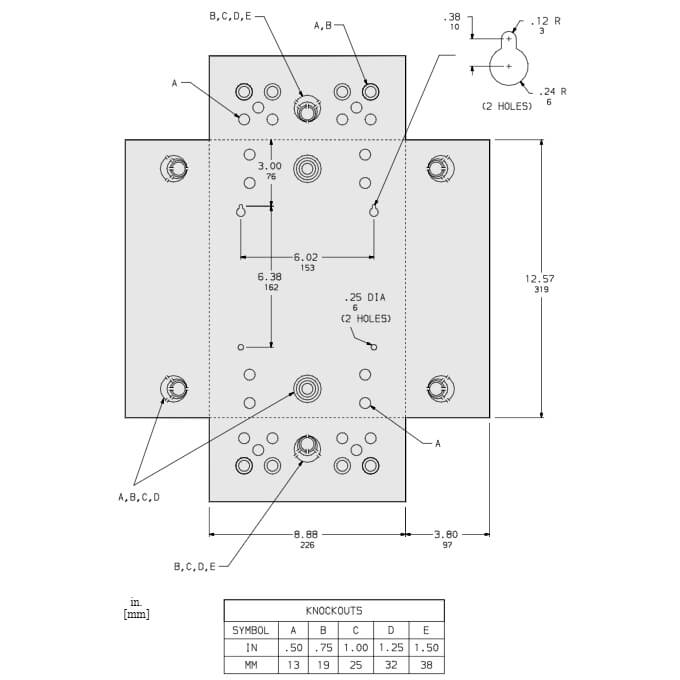

• Depth: 3.81 inches
• Width: 8.89 inches
• Height: 12.55 inches
• Enclosure Material: Steel
• Color: Gray
• Phase: 1
• Country of Origin: Mexico
• UL Listed: Yes
