Square D HOM60120M200PC Load Center 200 Amp 1-Phase NEMA 1

Product Description

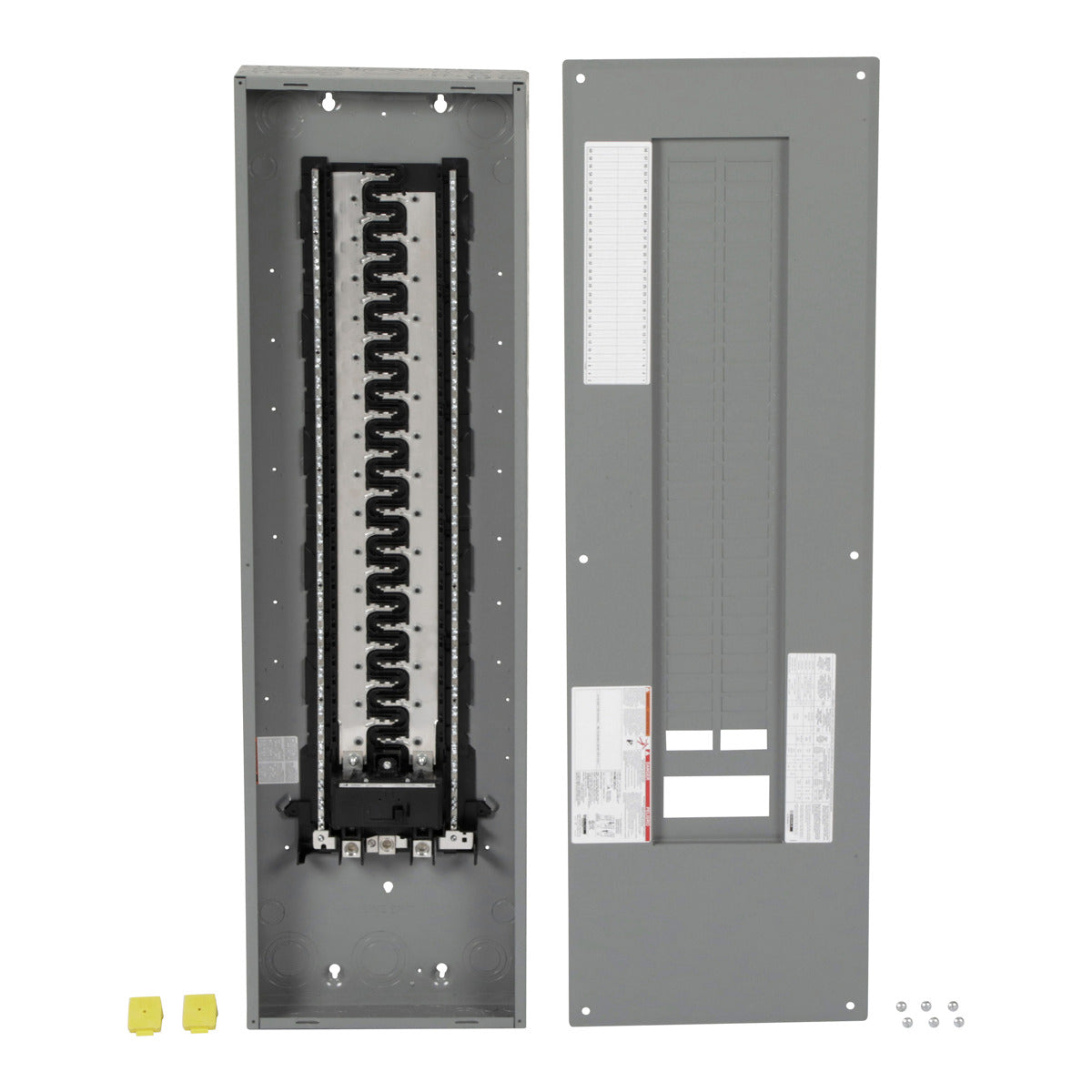

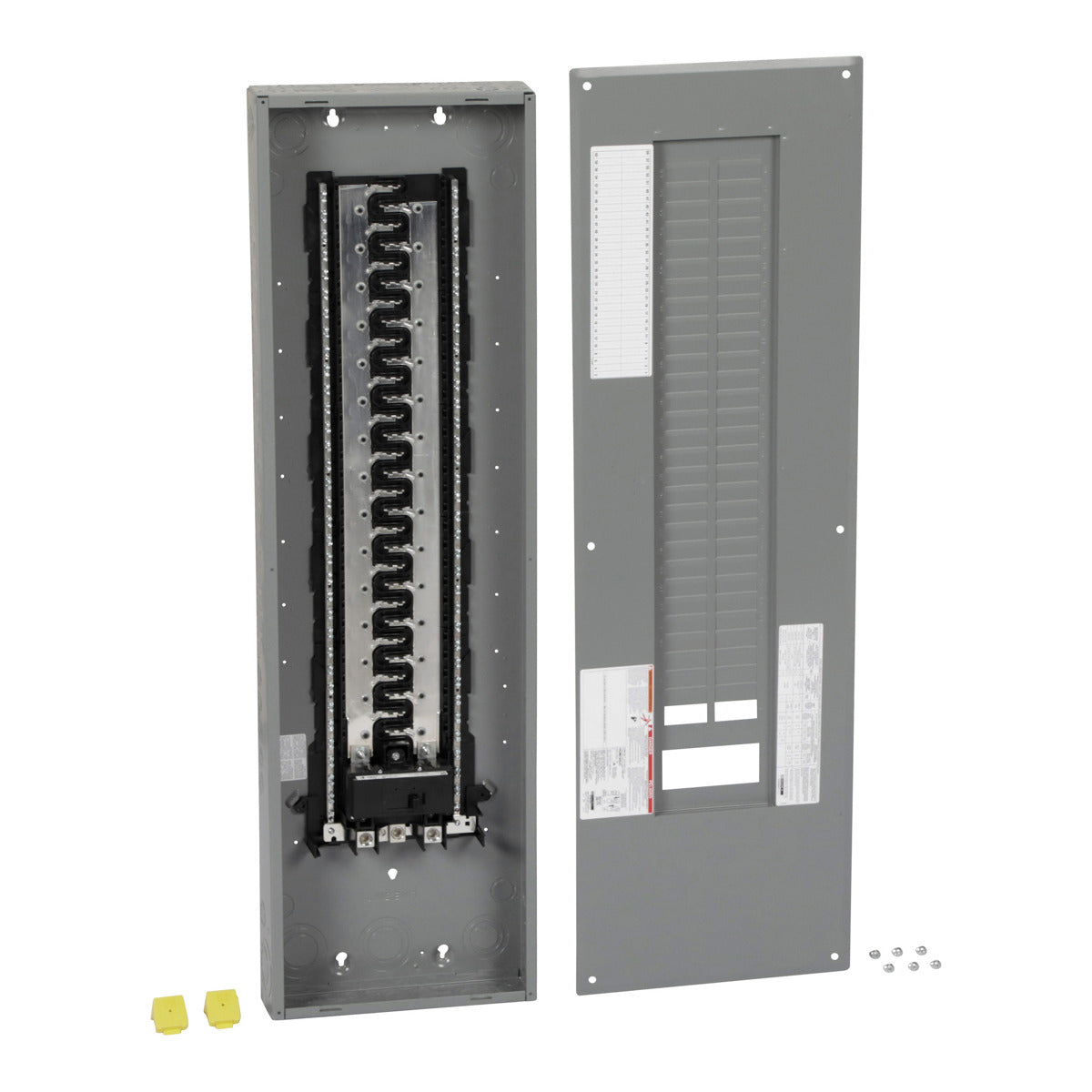

The Square D HOM60120M200PC Load Center is engineered for optimal electrical safety and performance in residential and light commercial settings. This 200 Amp, 120/240 Volt, 1-phase unit features a durable NEMA 1 rated enclosure with a flush/surface mount combination cover. Its design includes a two-pole, plug-on neutral main circuit breaker, ensuring reliable power distribution. The load center offers 60 spaces for circuits and accommodates up to 120 circuits with a strong 22 kA short-circuit rating.

• Efficient electrical power distribution with a 200 Amp main breaker.
• Accommodates large wiring through box lugs accepting 4 AWG to 250 kcmil wire sizes.
• UL listed, ensuring compliance with stringent safety standards.

Product Highlights

Designed for durability and safety, the Homeline series promotes easy installation and compatibility with a variety of breaker types.

Product Information

Standard Information

• Brand: Square D
• Type: Load Center
• Phase: Single Phase
• Enclosure: NEMA 1 Rated

Technical Specifications

• Current Capacity: 200 Amp
• Voltage: 120/240 Volt
• Number of Spaces: 60
• Cable Size: 4 AWG to 250 kcmil
• Material: Tin Plated Aluminium for Busbar
• Enclosure Dimensions: Height: 48.62 inches, Width: 14.25 inches, Depth: 3.74 inches
