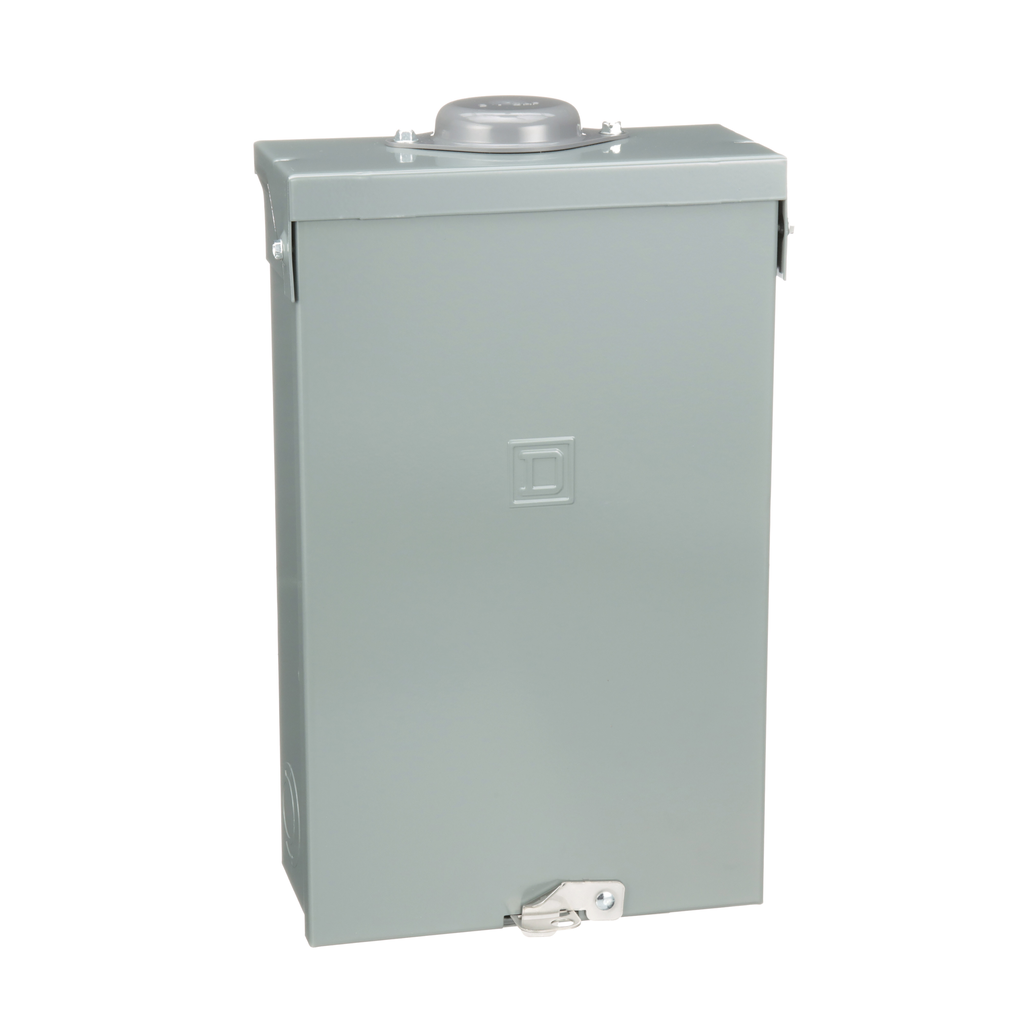

Square D HOM48L125GRB 120/240 VAC 125 Amp 1-Phase 4-Space 8-Circuit NEMA 3R Load Center

Product Description

The Square D HOM48L125GRB is a load center designed for residential and industrial use. This load center operates at 125 amperes and offers a voltage range of 120/240 volts. It features four spaces and eight circuits, providing flexibility for electrical distribution in various applications. The design incorporates a NEMA 3R rated enclosure for outdoor use, ensuring protection against harsh weather conditions.

• Provides four spaces for circuit breakers
• Grounding bar included for safety
• Rated for 125 amps at 120/240 VAC

Product Highlights

This load center supports Homeline circuit breakers and includes a variety of accessories for easy installation. The product has a short circuit current rating of 10 kA, enabling reliable operation under fault conditions.

Product Information

Standard Information

• Brand: Square D
• MPN: HOM48L125GRB

Technical Specifications

• Type: Load Center
• Current Rating: 125 Amp
• Voltage: 120/240 Volt
• Number of Circuits: 8
• Number of Spaces: 4
• Enclosure Rating: NEMA 3R
• Depth: 4.25 inches
• Width: 8.89 inches
• Height: 14.80 inches
