Square D HOM48L125GC Load Center 125 Amp 4-Space 8-Circuit NEMA 1

Product Description

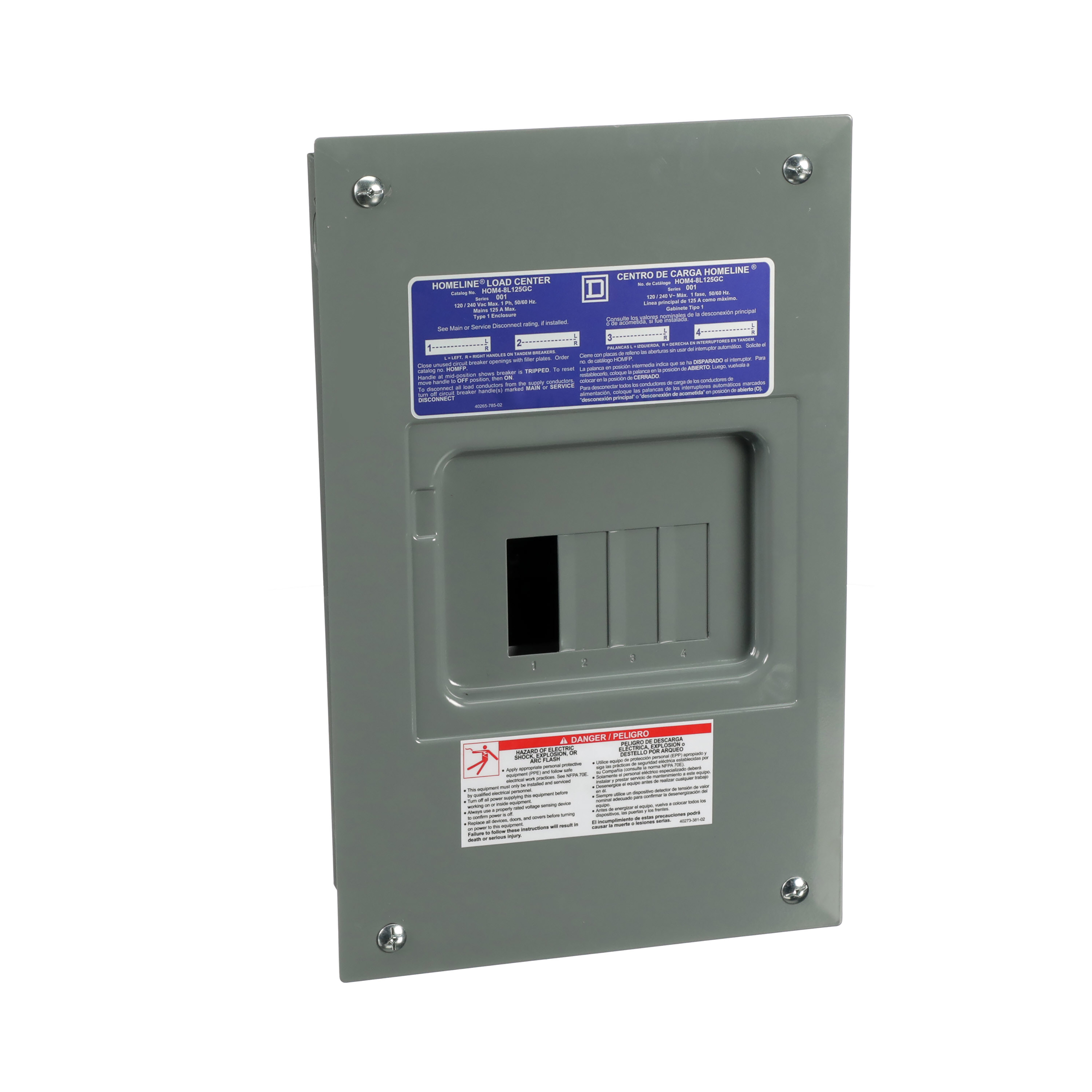

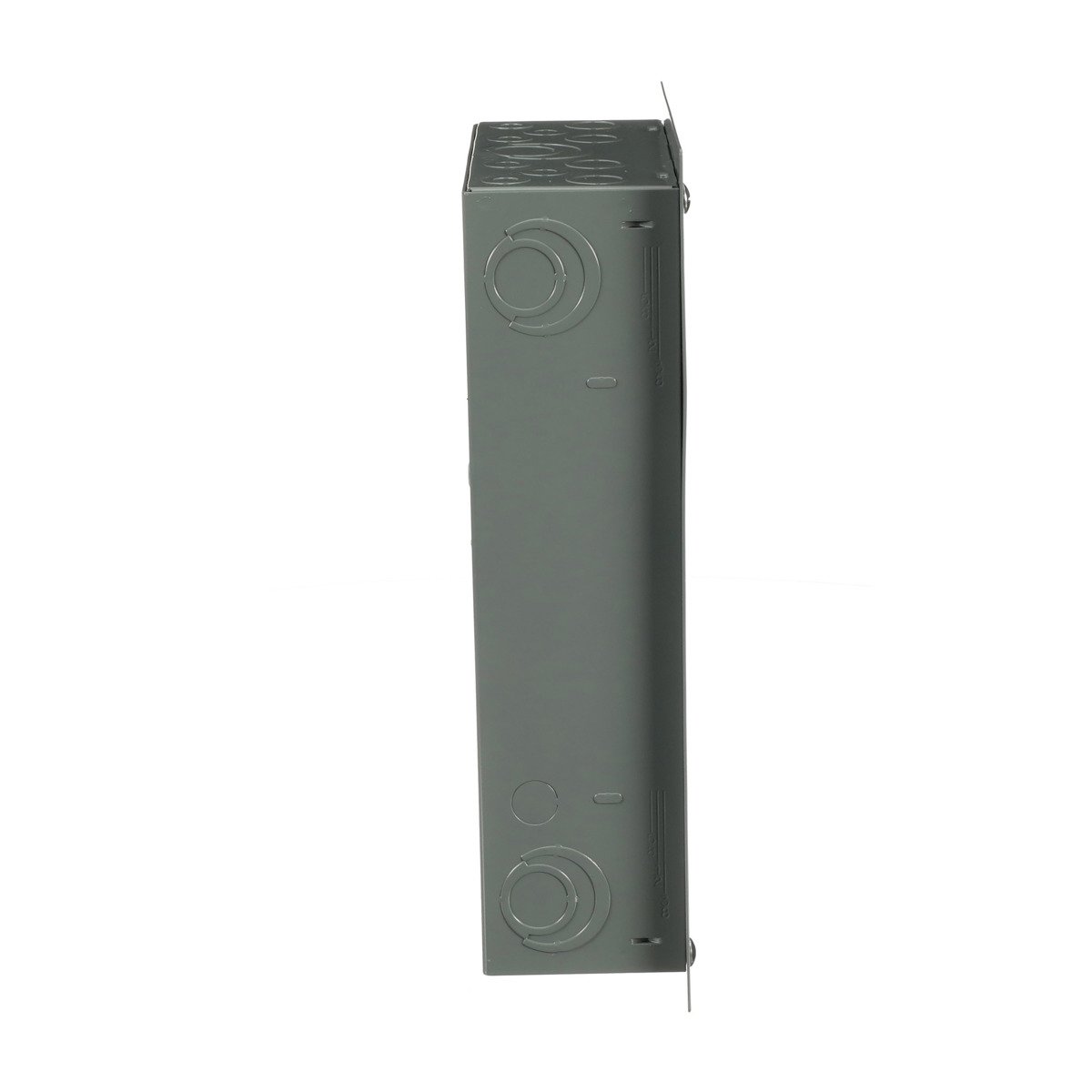

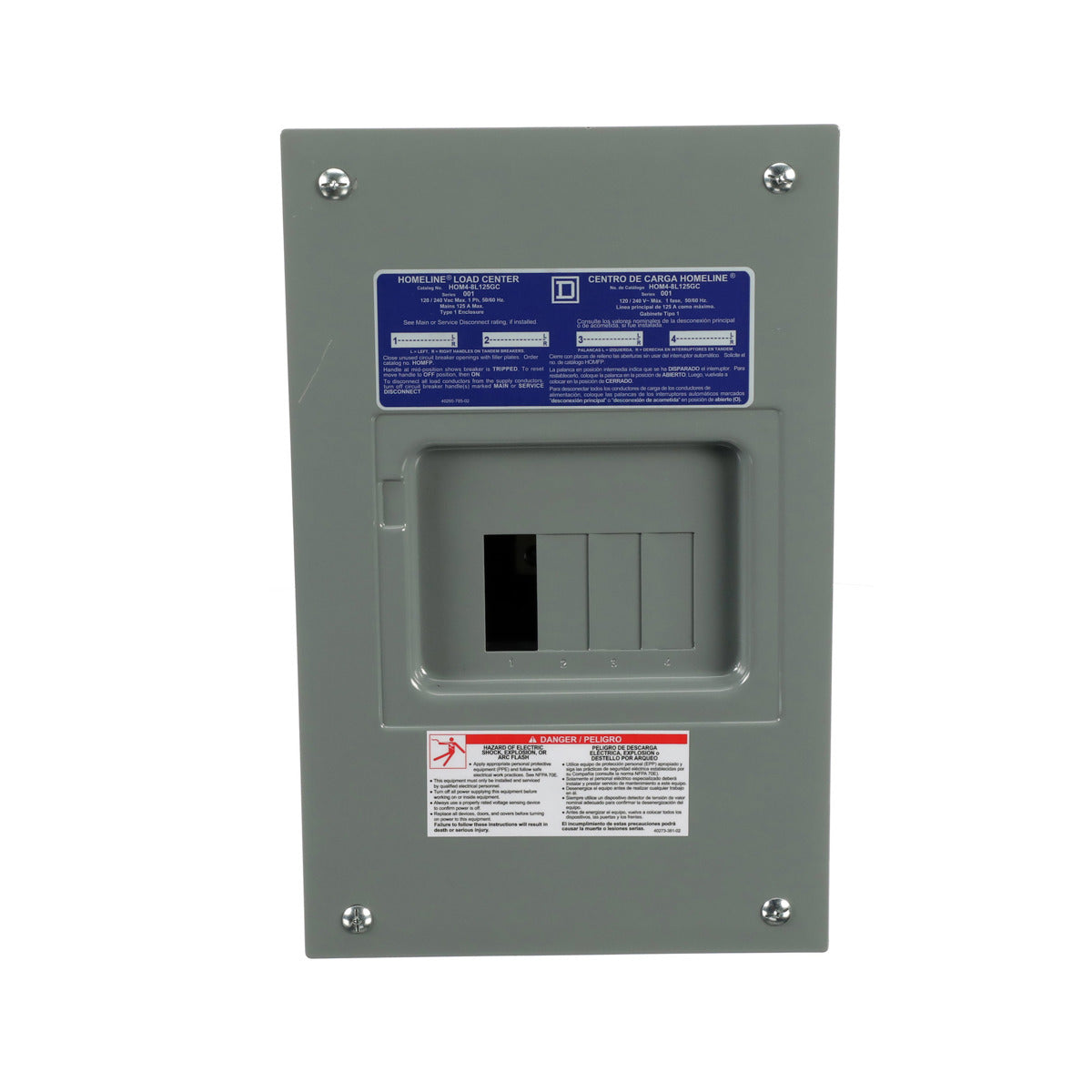

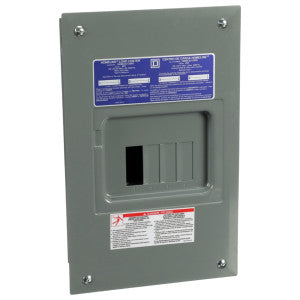

The Square D HOM48L125GC Homeline load center features Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. Rated at 125A 120/240 VAC single phase, it provides a 10 kA breaking capacity. Designed for residential and industrial use, it offers 4 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover.

• Convertible mains rated at 125A 120/240 VAC single phase
• 10 kA breaking capacity
• UL Listed

Product Highlights

This load center protects electrical systems, equipment, and people with Homeline circuit breakers and a grounding bar.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM48L125GC
• Country of Origin: Mexico

Technical Specifications

• Type: Load Center
• Brand: Square D
• Depth: 97 mm
• Width: 226 mm
• Finish: Gray
• Height: 376 mm
• Current: 125 Amp
• Voltage: 120/240 Volt
• Amperage: 125 Amp
• Material: Tin Plated Aluminium: Busbar
• Enclosure: 1
• NEMA Size: 1,3R
• Sub Brand: HOMELINE
• Wire Size: AWG 14...AWG 2/0 copper;AWG 12...AWG 2/0 aluminium;AWG 4...250 kcmil copper;AWG 4...300 kcmil aluminium NULL
• Bus Rating: TIN PLATED ALUMINUM
• Cable Size: AWG 14...AWG 2/0 COPPER-AWG 12...AWG 2/0 ALUMINIUM-AWG 4...250 KCMIL COPPER-AWG 4...300 KCMIL ALUMINIUM
• Cover Type: Combination flush/surface cover
• Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
• Certifications: UL Listed File E-6294
• Conductor Size: 12-2/0 AWG (AL)/14-2/0 AWG (CU)
• Surface Finish: Baked enamel Gray NULL
• Interrupt Rating: 10 kAIC
• Number of Phases: 1 Phase
• Number of Spaces: 4
• CA Prop65 Warning: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Country of Origin: Mexico
• Enclosure Material: Steel
• Line Rated Current: 125 A
• Number of Circuits: 8
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Short Circuit Current: 10 kA
• Manufacturer: Schneider Electric
• Phase: 1
• Wiring Configuration: 3-Wire
• Mounting Style: Flush, Panel, Surface
• Maximum Amperage: 125 A
• Model: HOM48L125GC
• Voltage Rating: 120/240 VAC
• Enclosure Type: NEMA 1, Indoor
• Neutral Type: Bonded
• Bus Material: Tin Plated Aluminum
• Feed Location: Top
• Main Wire Size: 4 to 2/0 AWG (Aluminum/Copper)
• Enclosure Size Designation: 21
• Approval: UL
• Cover Finish: Gray Baked Enamel
• Circuit Breaker Type: Homeline
• Indoor/Outdoor: Indoor
• Service feed location: Bottom,Top
• Voltage (v): 120/240
• Standards: UL listed file E-6294
• Primary/Ambient Air Temp.: -5°C || 40°C
• Max. No. of Tandem Breakers: 4
• Main Circuit Breaker or Main Lug: Main Lug
• Rated Current: 125A
• Rated Voltage: 120/240V ac
• Color Family: Gray
• Alternate Catalog Number: HOM48L125GC
• Housing Material: Steel
• Item Group: 00149
• Rated Amperage: 125 A
