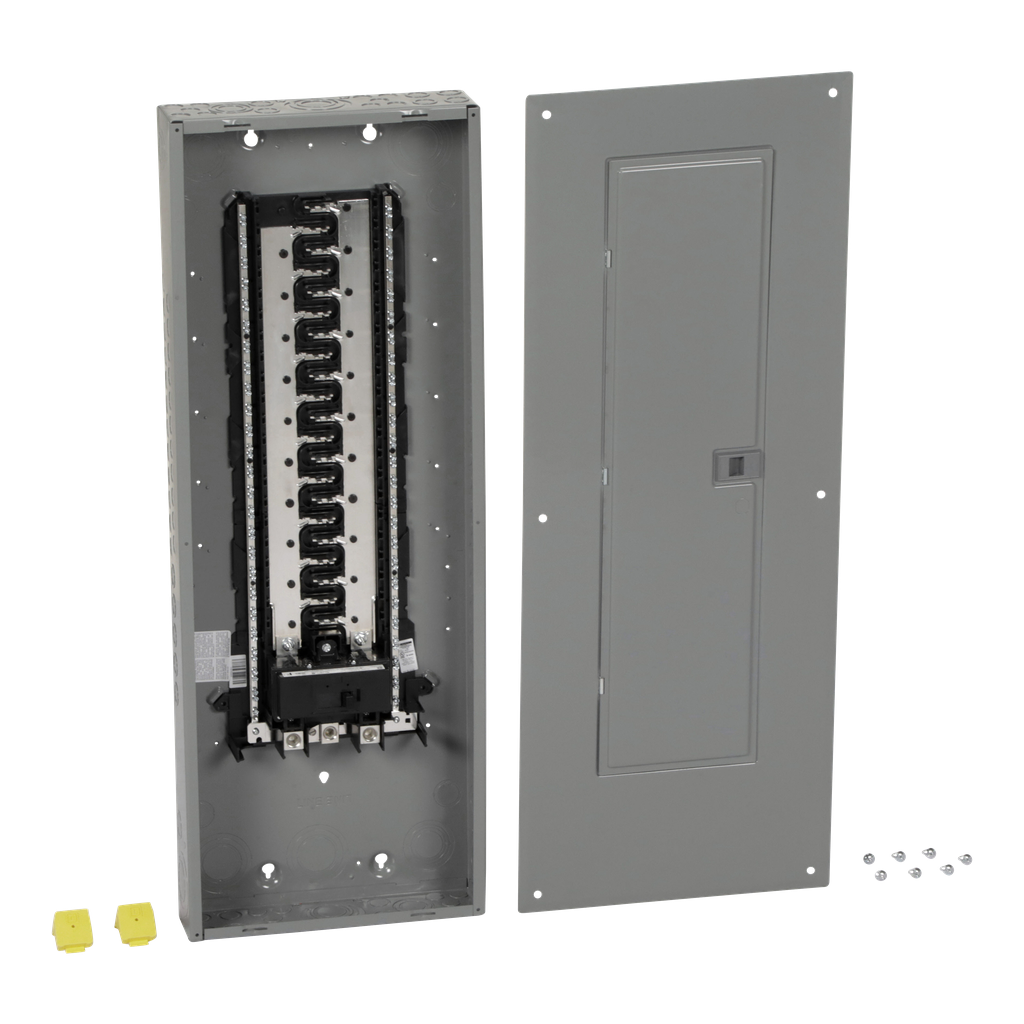

Square D HOM4284M200PC Load Center 200 Amp 42-Space 84-Circuit NEMA 1

Product Description

Square D HOM4284M200PC is a load center that provides effective power distribution in residential and industrial settings. This unit operates at 120/240 volts with a maximum capacity of 200 amps. It is suitable for single-phase applications and is rated for indoor use, making it ideal for homes and commercial buildings. The load center features 42 spaces and 84 circuits, allowing for extensive electrical distribution, while a combination flush/surface cover aids in easy access.

• 200A, 120/240VAC single-phase operation.
• 42 spaces and 84 circuits for extensive capacity.
• UL Listed for safety and reliability.

Product Highlights

This load center is equipped with a two-pole plug-on neutral main supply circuit breaker with a 22 kA breaking capacity. It additionally provides box lugs compatible with wire sizes from 4 AWG to 250 kcmil for both copper and aluminum connections. Designed for both functionality and safety, this load center protects electrical systems and equipment.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM4284M200PC
• Voltage: 120/240 Volt
• Current Rating: 200 Amp
• Dimensions: Height 39.37 inches, Width 14.25 inches, Depth 3.74 inches
• Number of Spaces: 42
• Number of Circuits: 84
• Enclosure Type: NEMA 1
• Country of Origin: USA
