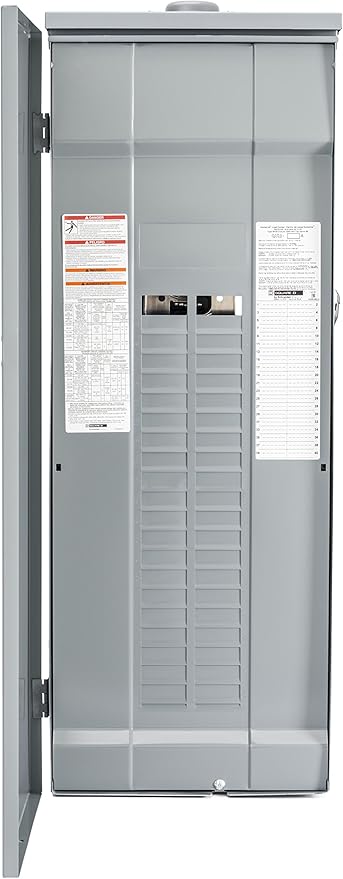

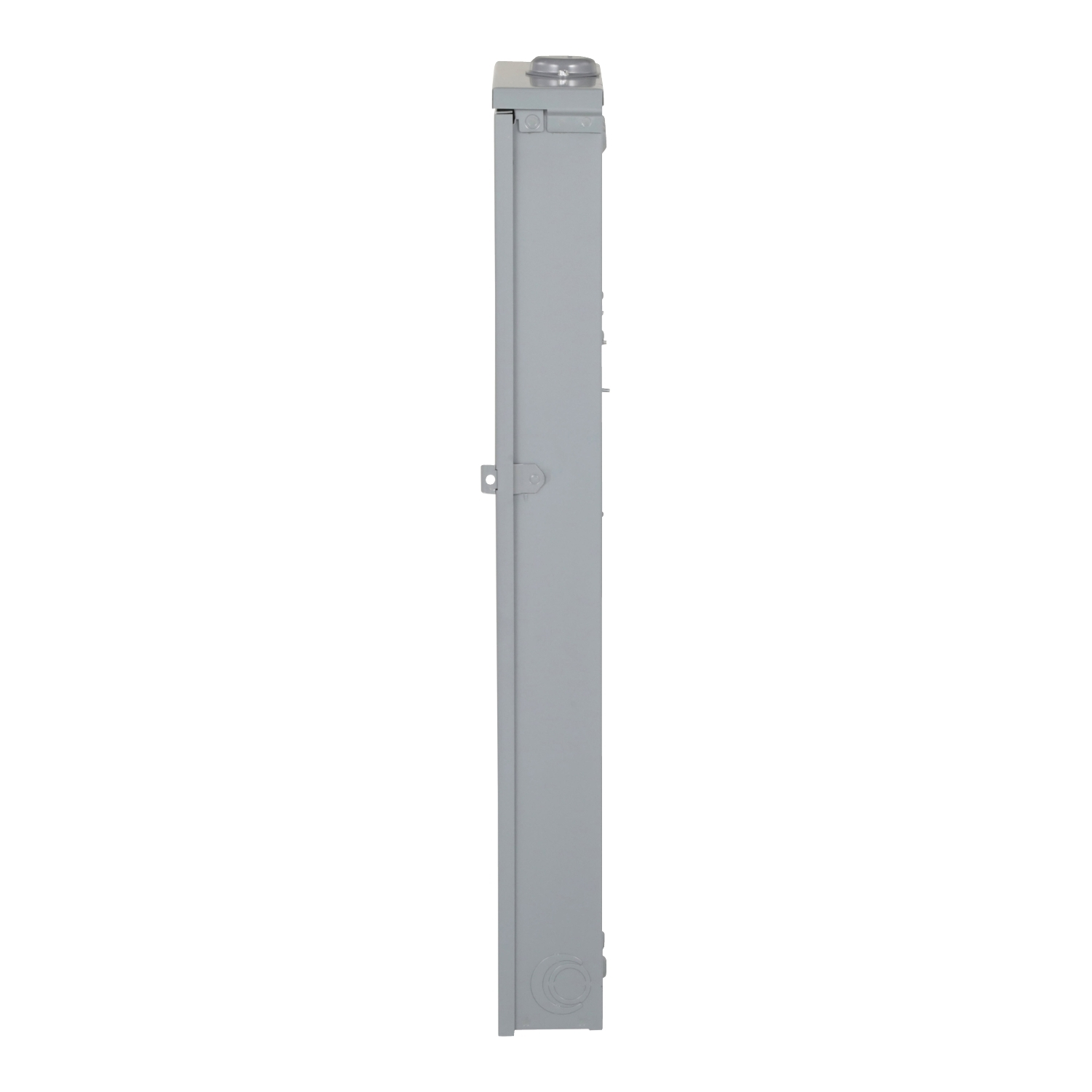

Square D HOM4284L225PRB Single-Phase Homeline Load Center, Main Lug, 225A, 42 Spaces, 84 Circuits, Aluminum Bus, NEMA 3R

Product Description

The Square D HOM4284L225PRB Homeline load center features Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. Rated for single-phase systems and suitable for indoor or rainproof applications, this load center is designed for residential and industrial use. It has convertible mains rated at 225A 120/240 VAC single phase and provides a 10 kA breaking capacity with 42 spaces in a NEMA 3R enclosure.

• Features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters
• Convertible mains rated at 225A 120/240 VAC single phase
• NEMA 3R rain proof enclosure

Product Highlights

This Square D load center protects electrical systems, equipment, and people, and is UL Listed.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM4284L225PRB
• Country of Origin: United States

Technical Specifications

• Type: Convertible Main Lug
• Depth: 4.53 Inches
• Phase: Single-Phase
• Width: 14.76 Inches
• Height: 39.37 Inches
• Mounting: Surface
• Cover Type: Surface cover
• NEMA Rating: NEMA 3R
• Voltage Rating: 120/240 VAC
• Amperage Rating: 225 Amperes
• Interrupt Rating: 10 Kiloamperes
• Number Of Spaces: 42
• Wiring Configuration: 3-Wire
• Number of Circuits: 84
• Bus Material: Tin Plated Aluminum
• Feed Location: Top/Bottom
• Main Wire Size: 4 AWG to 250 KCMIL (Copper), 4 AWG to 300 KCMIL (Aluminum)
• Enclosure Type: NEMA 3R, Outdoor
• Approval: UL
• Enclosure Material: welded galvannealed steel
• Cover Finish: Gray Baked Enamel
• Bus Rating: TIN PLATED ALUMINIUM
• Wire Range: 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire
• Range Of Product: Homeline
• Product Or Component Type: Load Center
• Electrical Connection: lugs
• Nema Degree Of Protection: NEMA 3R weatherproof enclosure
• Line Rated Current: 225 A
• Load Center Type: PoN Convertible Mains (lugs)
• [Ue] Rated Operational Voltage: 120/240 V AC
• Bus Rated Current: 225.0 A
• Short-Circuit Current: 10 kA
• Number Of Tandem Circuit Breakers: 42
• Material: tin plated aluminium: busbar
• Surface Finish: baked enamel Gray
• Awg Gauge: AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium
• Device Composition: grounding bar (ordered separately)
• Enclosure Size Designation: 14R
• Short Circuit Current Rating: 10 kA
• Main Circuit Breaker or Main Lug: PoN Convertible Mains (lugs)
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Phase Type: Single Phase
• Certification: Ul Listed
• Special Features: Plug-on Neutral ready
• Usage: For Outdoor Use
• Breaker Mounting: Plug-On
• Neutral Type: Plug-On
• Maximum Number of Circuits: 84
• Maximum Number of Spaces: 42
• Interrupting Rating: 10 Kiloampere
• Circuit Configuration: 1-Phase 3-Wire
