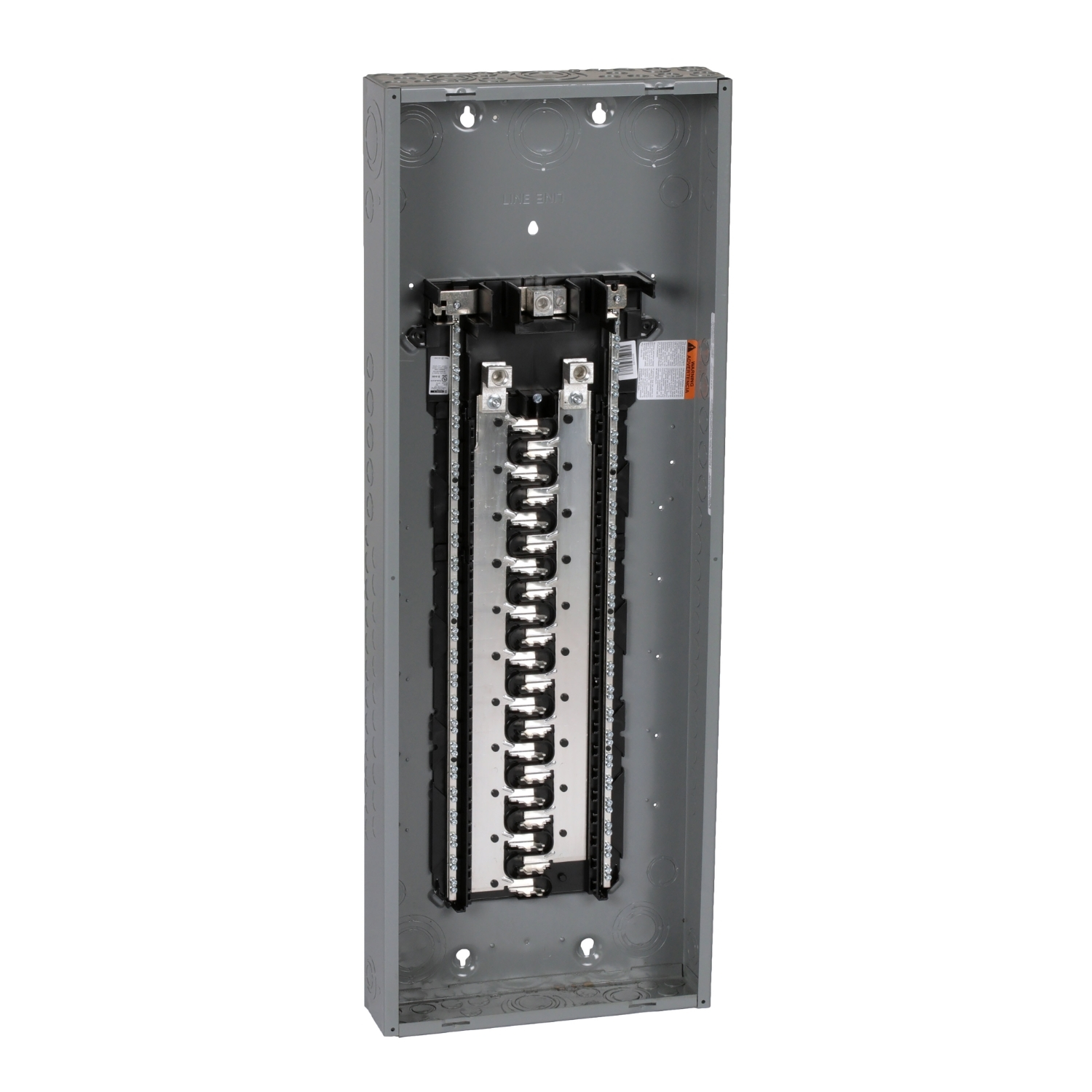

Square D HOM4284L225PGC Single-Phase Homeline Load Center with Ground Bar, Main Lug, 225A, 42 Spaces, 84 Circuits, Aluminum Bus, NEMA 1

Product Description

The Square D HOM4284L225PGC single-phase Homeline load center features Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. Rated at 225A 120/240 VAC, it offers a 10 kA breaking capacity and 42 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. Designed for residential and industrial use to protect electrical systems, equipment, and people.

• Accepts wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire.
• Features a grounding bar.
• UL Listed for safety and performance.

Product Highlights

This Homeline load center provides reliable protection for electrical systems with easy installation and versatile accessory options.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM4284L225PGC
• Country of Origin: United States

Technical Specifications

• Type: Convertible Main/Main Breaker
• Phase: Single-Phase

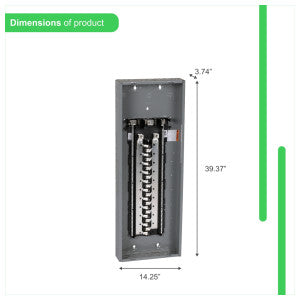

• Width: 16.30 Inches
• Height: 5.39 Inches
• Length: 41.81 Inches
• Mounting: Surface
• Cover Type: Combination Flush/Surface
• NEMA Rating: NEMA 1
• Voltage Rating: 120/240 VAC
• Amperage Rating: 225 Amperes
• Interrupt Rating: 10 Kiloamperes
• Number Of Spaces: 42
• Wiring Configuration: 3-Wire
• Number Of Circuits: 84
• Standards: UL listed file E-6294
• Wire Size: AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium
• Bus Material: tin plated aluminium busbar
• Ground Bar Kit: grounding bar included (not installed)
• Surface Finish: baked enamel Gray
• Enclosure Material: welded sheet steel
• Circuit Breaker Type: Homeline
• Enclosure NEMA Rating: NEMA 1 indoor
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Max. No. of Tandem Breakers: 42
• Short Circuit Current Rating: 10 kA
• Main Circuit Breaker or Main Lug: PoN Convertible Mains (lugs)
• Current Rating: 225 Ampere
• Main Breaker Type: HOM, QOM2 Main Frame Size
• Breaker Mounting: Plug-On
• Enclosure Type: NEMA 1, Indoor
• Line Rated Current: 225 A
• Short Circuit Current: 10 kA
• Cable Size: AWG 4...250 kcmil copper;AWG 4...300 kcmil aluminium
• Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
• Certifications: UL Listed File E-6294
• Conductor Size: 4 AWG-300 kcmil (AL)/4 AWG-250 kcmil (CU)
• Rated Current: 225A
• Rated Voltage: 120/240V ac
• Material: Tin Plated Aluminum
• Finish: Baked Enamel Gray
• Range Of Product: Homeline
• Product Or Component Type: Load Center
• Electrical Connection: lugs
• [Ue] Rated Operational Voltage: 120/240 V AC
• Bus Rated Current: 225.0 A
• Short-Circuit Current: 10 kA
• Number Of Tandem Circuit Breakers: 42
• Awg Gauge: AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium
• Device Composition: grounding bar included (not installed)
• Product Certifications: UL listed file E-6294
• Ambient Air Temperature For Operation: -5 °C || 40 °C
• Max. Single Pole Circuits: 42
• Max. Tandem Circuits: 42
• No. of Circuits: 84
• No. of Spaces: 42
