Square D HOM4284L225PC Load Center 225 Amp 120/240 VAC 42-Space NEMA 1

Product Description

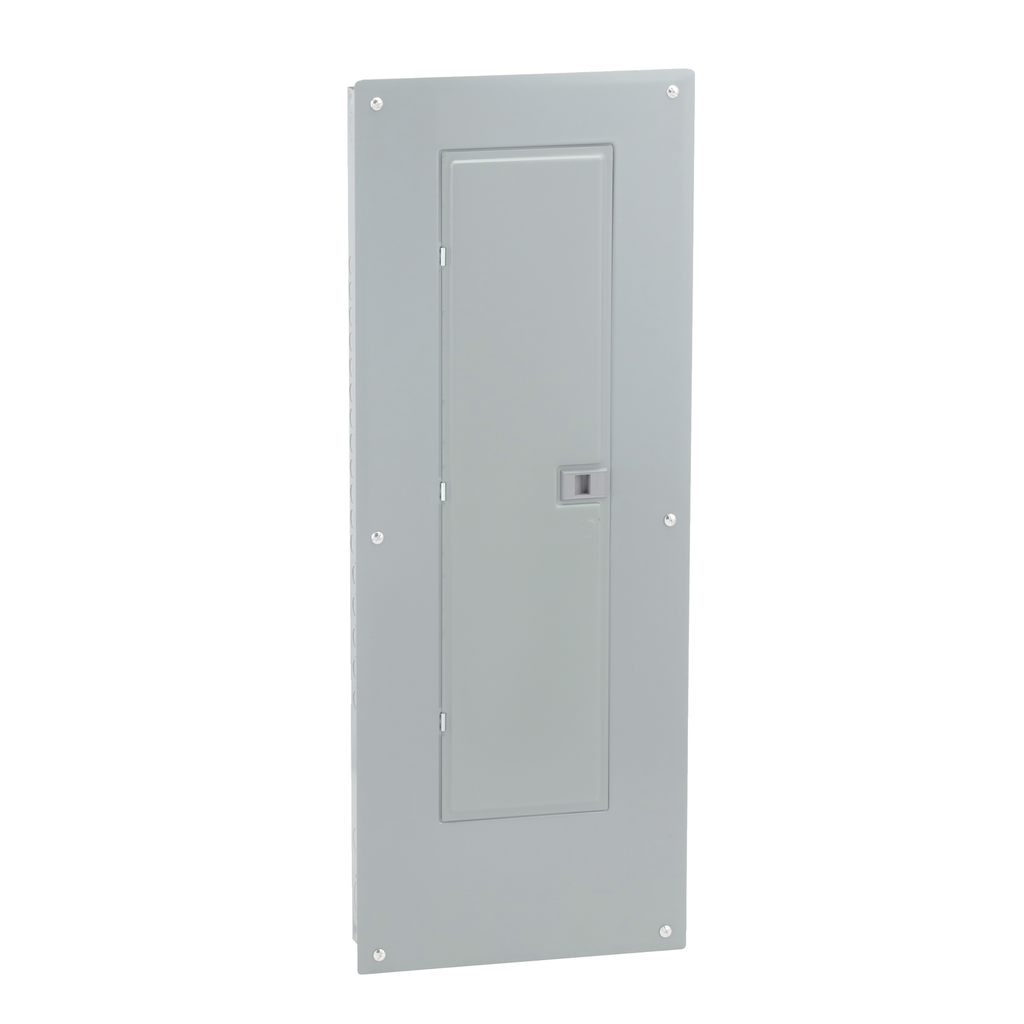

The Square D HOM4284L225PC is a load center designed for both residential and commercial use. This unit features a rated current of two hundred twenty-five amps and connects to 120/240 volt systems. It provides forty-two spaces and supports up to eighty-four circuits. The design includes a combination flush/surface cover, ensuring versatility in installation. The enclosure is NEMA 1 rated, suitable for indoor applications and weather-resistant. The box lugs within the load center accommodate wire sizes from four AWG to two hundred fifty kcmil copper and four AWG to three hundred kcmil aluminum.

• UL listed for safety compliance
• Ten kA short circuit current rating
• Enclosure made from welded sheet steel

Product Highlights

This load center is designed to protect electrical systems and equipment while ensuring safety for users.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM4284L225PC
• Type: Load Center
• Current Rating: 225 Amps
• Voltage Rating: 120/240 Volts
• Number of Spaces: 42
• Number of Circuits: 84
• Enclosure Rating: NEMA 1
• Cover Type: Combination flush/surface cover
• Wire Size Compatibility: AWG 4 to 250 kcmil copper; AWG 4 to 300 kcmil aluminum
• Short Circuit Rating: 10 kA
• Country of Origin: USA
