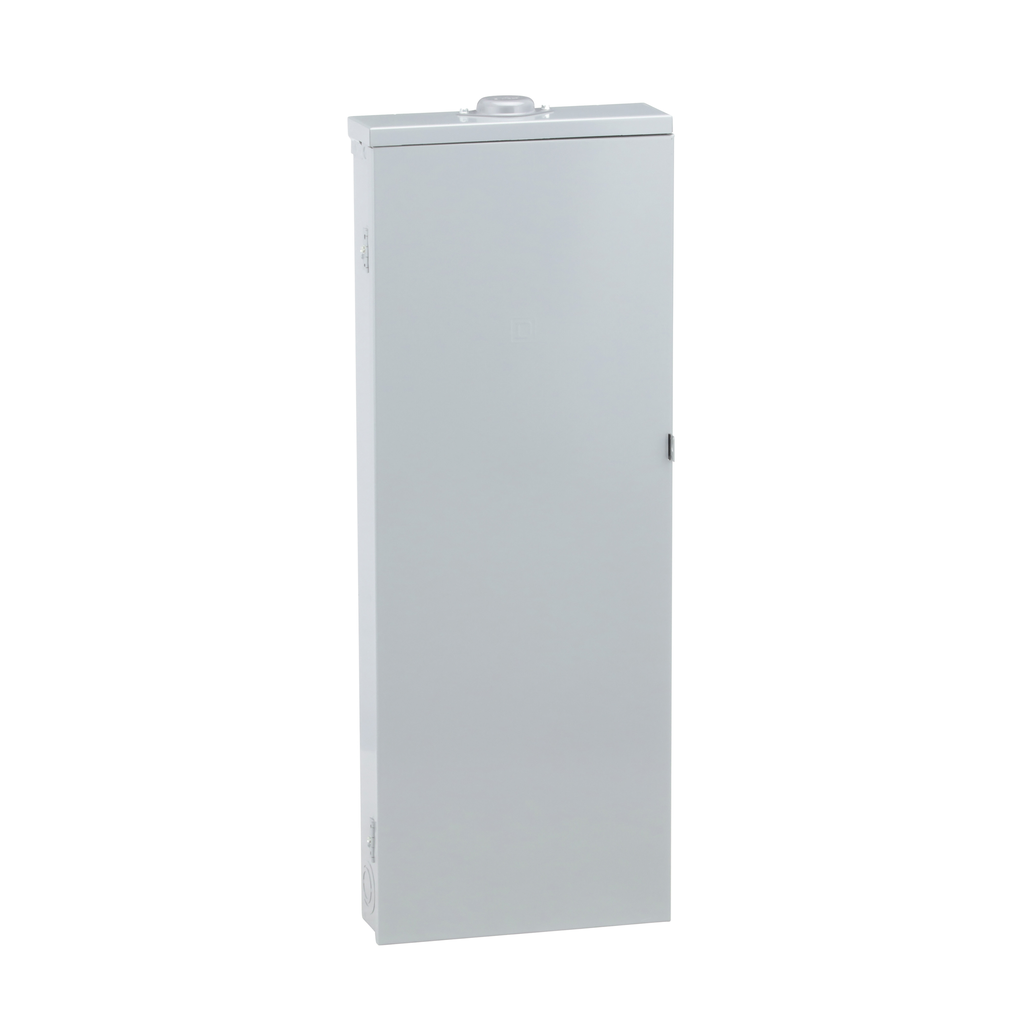

Square D HOM4080M200PRB 120/240 VAC 200 Amp 1-Phase 40-Space 80-Circuit NEMA-3R Load Center

Product Description

The Square D HOM4080M200PRB is a 200 Amp, single-phase load center designed for use in residential and industrial applications. This load center is suitable for 120/240 VAC systems and features a NEMA 3R rain-proof enclosure. It includes 40 spaces and can accommodate 80 circuits, providing flexibility for electrical distribution.

• Rated for indoor or outdoor use.
• Includes a two-pole main circuit breaker.
• UL listed for safety and reliability.

Product Highlights

The unit is built to protect electrical systems, equipment, and people. It has a breaking capacity of 22 kA, ensuring it can handle electrical faults effectively.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM4080M200PRB
• Enclosure: NEMA 3R
• Current Rating: 200 Amp
• Voltage Rating: 120/240 Volt
• Number of Spaces: 40
• Number of Circuits: 80
• Height: 39.37 inches
• Width: 14.76 inches
• Depth: 4.52 inches
