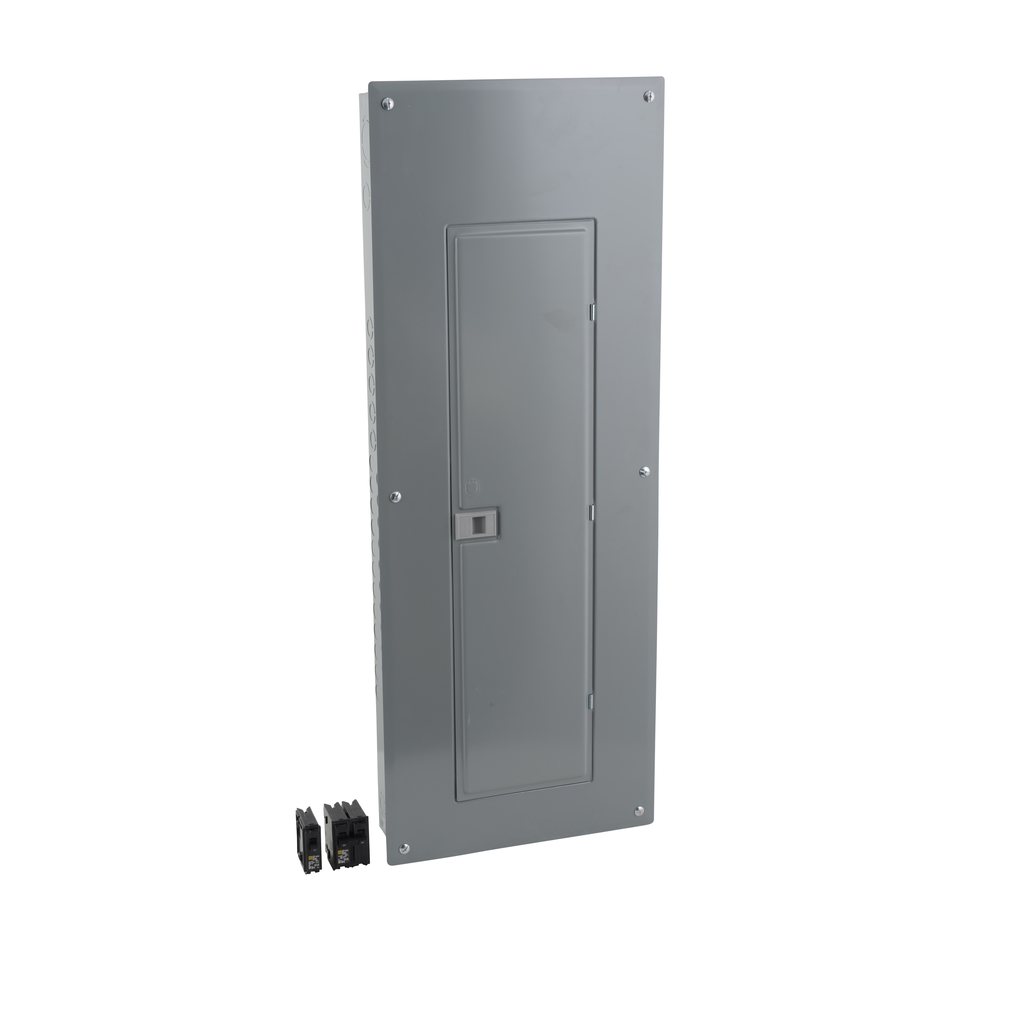

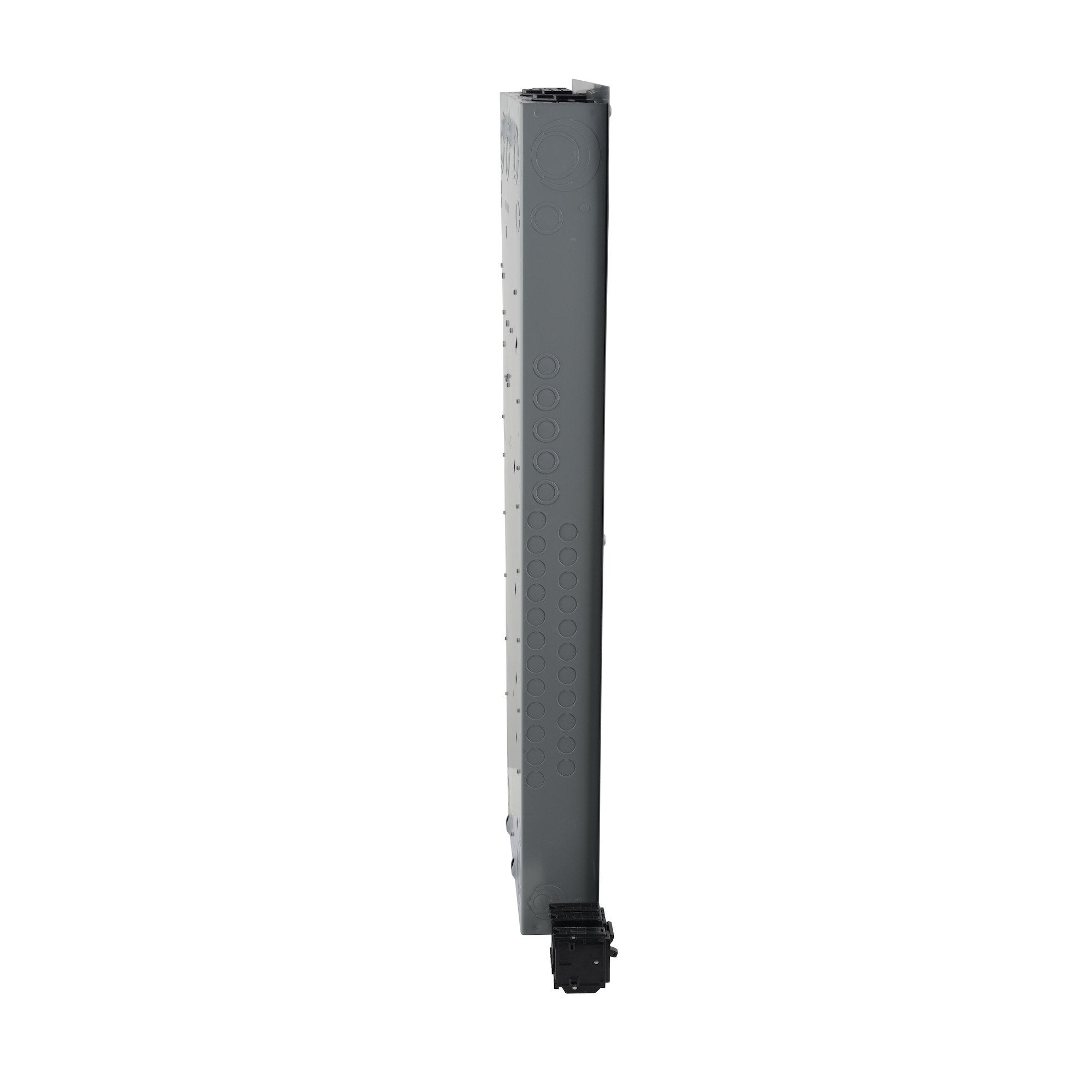

Square D HOM4080M200PQCVP Load Center H 200 Amp 40 Spaces NEMA 1

Product Description

The Square D HOM4080M200PQCVP Load Center is built for high performance and durability. This load center features a plug-on neutral design. Rated for two hundred amperes at 120/240 volts, it suits both residential and industrial applications. The system includes a combination of circuit breakers, providing versatility in your electrical setups. This design simplifies wire installation with a Qwik-Grip system that allows wires to be easily managed from the front. This load center is UL Listed for safety and reliability.

• Rated for 200A, 120/240VAC
• Includes three HOM120 and two HOM230 circuit breakers
• Supports wire sizes from 4 AWG to 250 kcmil

Product Highlights

Designed for efficiency, this load center is perfect for both new construction projects and upgrades. Its user-friendly design minimizes installation time and effort.

Product Information

Standard Information

• Brand: Square D
• MPN: HOM4080M200PQCVP
• Model: Load Center
• Country of Origin: USA

Technical Specifications

• Catalog Number: HOM4080M200PQCVP
• Amperage: 200 Amps
• Voltage: 120/240 Volt
• Number of Circuits: 80
• Number of Spaces: 40
• Enclosure Rating: NEMA 1
• Height: 39.37 inches
• Width: 14.25 inches
• Depth: 3.74 inches
• Break Capacity: 10 kAIC
