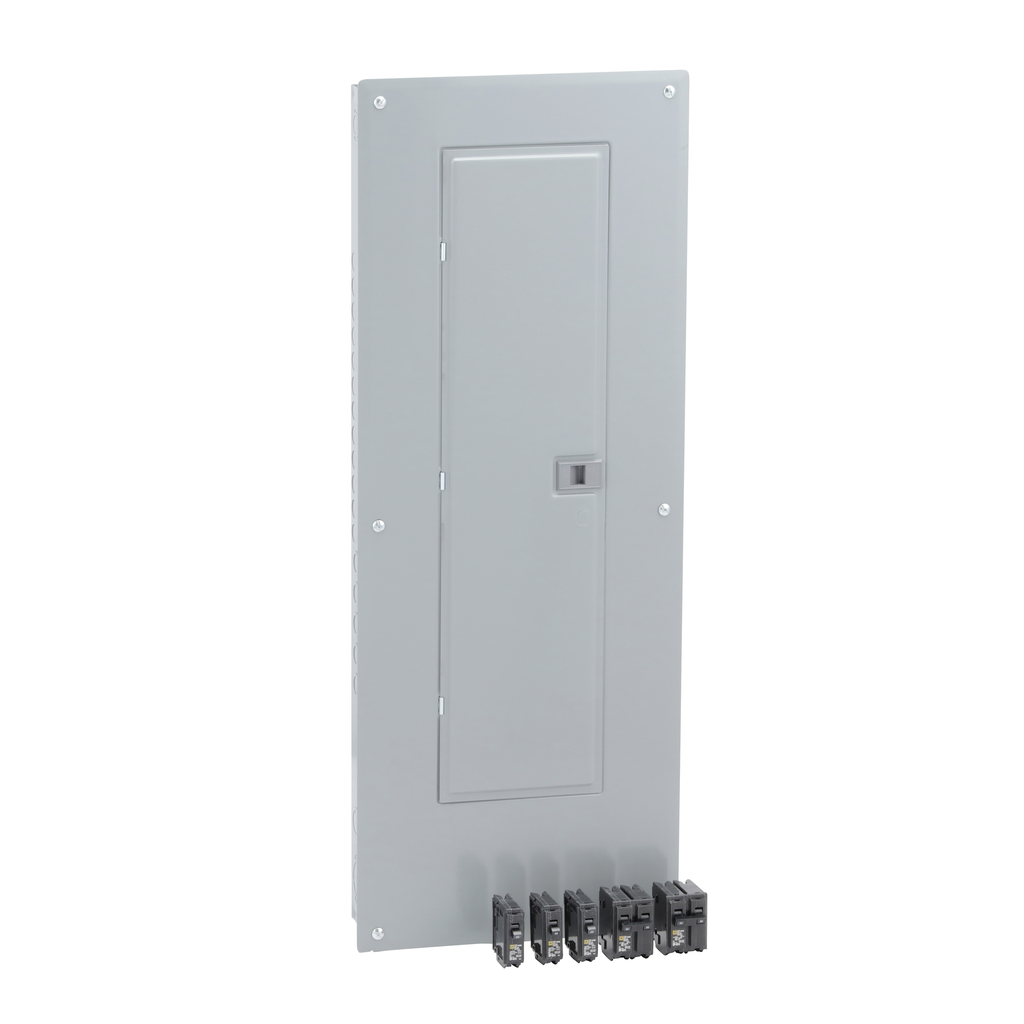

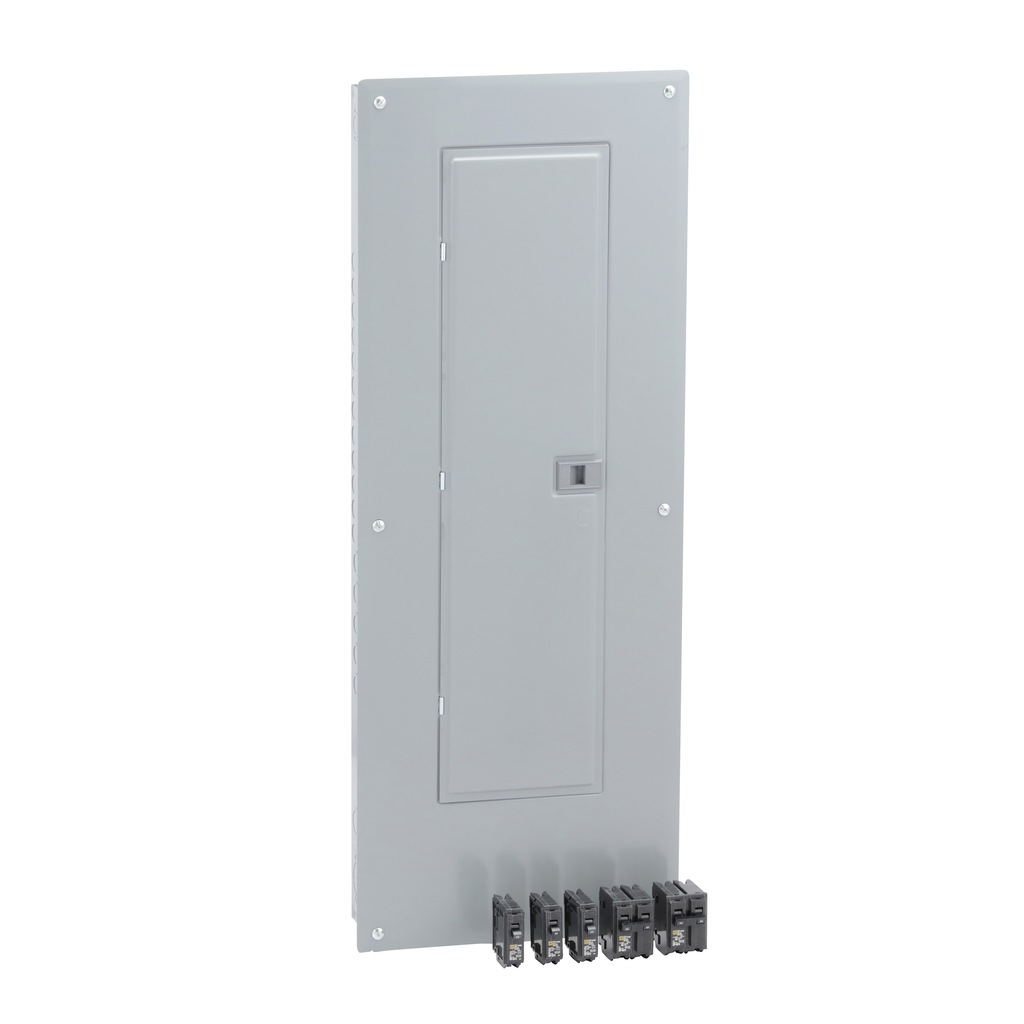

Square D HOM4080M200PCVP Load Center 200 Amp NEMA 1

Product Description

The Square D HOM4080M200PCVP is a load center rated for 200 amps at 120/240 volts. This unit operates on a single phase and provides 40 spaces within a NEMA 1 indoor enclosure. It includes features for improved safety and efficiency, such as circuit breakers and ground fault protection.

• UL Listed for safety.
• Features 80 circuits with two pole breakers.
• Accepts wire sizes from 4 AWG to 250 kcmil.

Product Highlights

The HOM4080M200PCVP is designed for residential and light industrial applications, ensuring the protection of both electrical systems and people. The load center accommodates a variety of accessories and comes with a combination flush/surface cover.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: HOM4080M200PCVP
• Voltage: 120/240 Volt
• Current: 200 Amp
• Number of Phases: 1 Phase
• Number of Spaces: 40
• Interrupt Rating: 22 kAIC
• Height: 39.37 inches
• Width: 14.25 inches
• Depth: 3.74 inches
