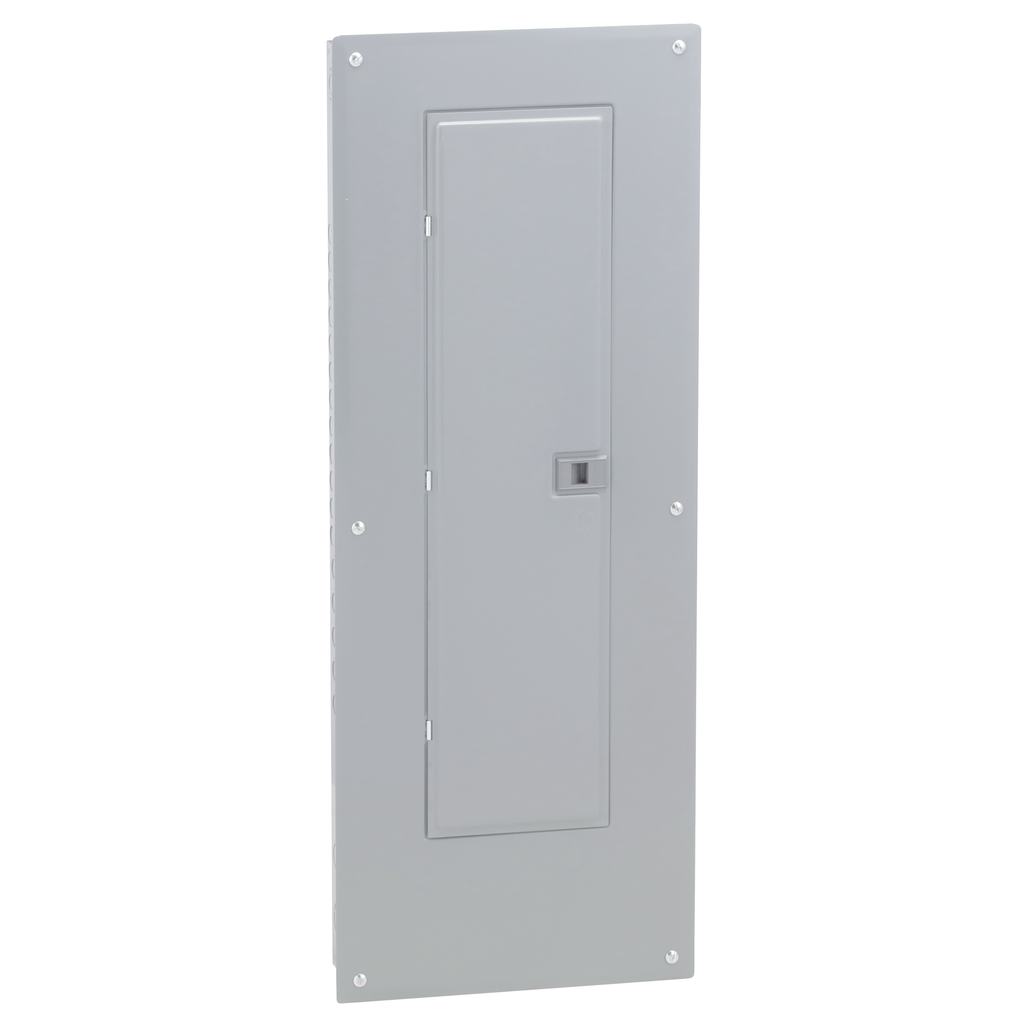

Square D HOM4080M200PCAFVP Load Center 200A 40 Spaces NEMA 1

Product Description

The Square D HOM4080M200PCAFVP is a load center designed for residential and industrial applications. This load center includes features like breaker protection and supports additional accessories. It is rated for single-phase service at two hundred amps with a voltage of one hundred twenty to two hundred forty volts.

• Provides 40 circuits and 80 spaces for breakers.
• Includes multiple types of circuit breakers for different needs.
• High breaking capacity of twenty-two kA for enhanced protection.

Product Highlights

This load center is perfect for protecting electrical systems, equipment, and occupants. Its sturdy design and UL listing ensure safety and reliability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM4080M200PCAFVP
• Current Rating: 200 Amp
• Voltage Rating: 120/240 Volt
• Height: 33.77 inches
• Width: 14.25 inches
• Depth: 3.74 inches
• Number of Spaces: 40
• Enclosure Rating: NEMA 1
• Wire Size Compatibility: AWG 4 to 250 kcmil copper or aluminum
