Square D HOM4080M200PC Load Center 200 Amp 40-Space Replacement MPN

Product Description

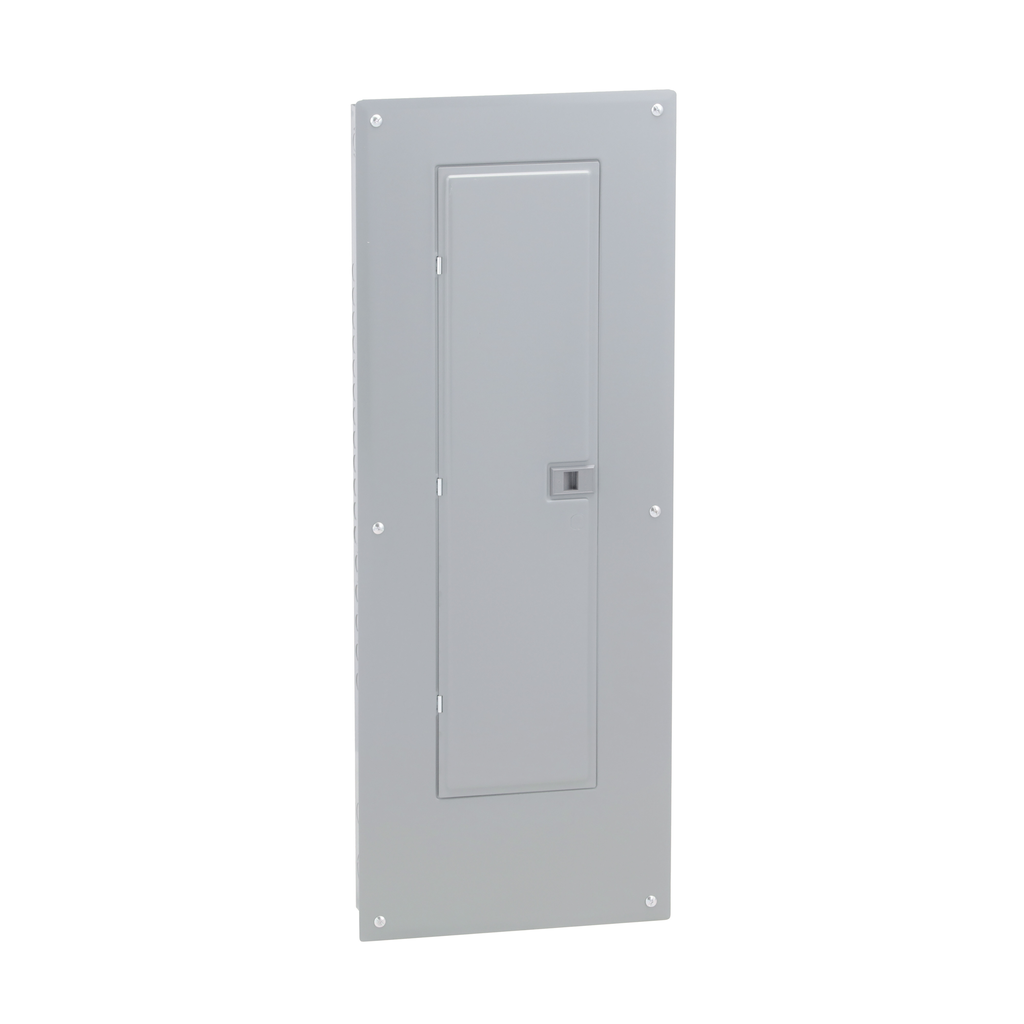

The Square D HOM4080M200PC is a load center designed for residential and industrial applications. This unit operates at 200 Amps and 120/240 VAC. It provides 40 spaces for circuit breakers within a NEMA 1 enclosure. The system includes a combination flush/surface cover for convenience. This load center has a two-pole main breaker. It is rated with a breaking capacity of 22 kA, which ensures reliable protection.

• Rated for 200A at 120/240VAC
• Includes 40 circuit breaker spaces
• UL Listed for safety

Product Highlights

This load center is suitable for indoor use. Its compact design allows for efficient space management in electrical installations.

Product Information

Standard Information

• Catalog Number: HOM4080M200PC
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 120/240 Volt
• Amperage: 200 Amp
• Number of Phases: 1 Phase
• Enclosure Material: Steel
• Wire Size: AWG 4...250 kcmil
• Height: 39.37 inches
• Width: 14.25 inches
• Depth: 3.74 inches
