Square D HOM4080M200PC Hom Indr 200A Mb

Product Description

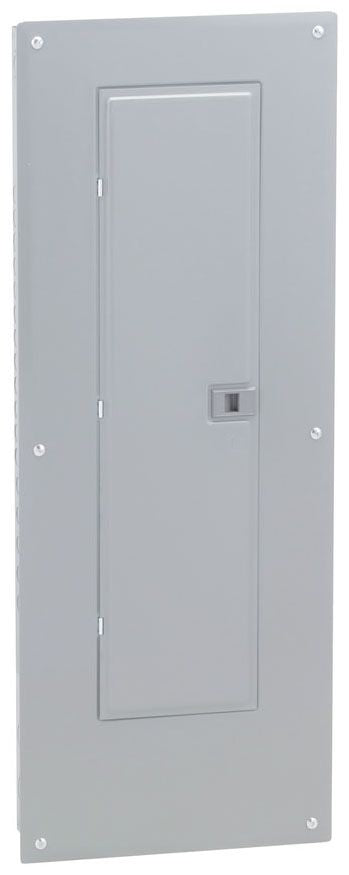

The Square D HOM4080M200PC is a convertible main breaker load center. It has a rating of 200 amperes and is designed for indoor use. This model features a size of fourteen point twenty-five inches wide, three point seventy-five inches deep, and thirty-nine point thirty-seven inches high. It can support a maximum of eighty circuits and forty spaces.

• Convertible main breaker type with UL approval.
• Rated for 120/240 VAC with a twenty-two kiloampere interrupting rating.
• Configured for top or bottom feed with plug-on neutral type.

Product Highlights

Ideal for residential and light commercial use, the Square D HOM4080M200PC offers reliable circuit protection and management.

Product Information

Standard Information

• Manufacturer: Square D
• Brand: Square D Co.

Technical Specifications

• Voltage Rating: 120/240 VAC
• Current Rating: 200 Amperes
• Maximum Number of Circuits: 80
• Maximum Number of Spaces: 40
• Cover Type: Flush/Surface
• Enclosure Type: NEMA 1, Indoor
• Bus Material: Tin Plated Aluminum
• Main Wire Size: 4 AWG to 250 KCMIL
