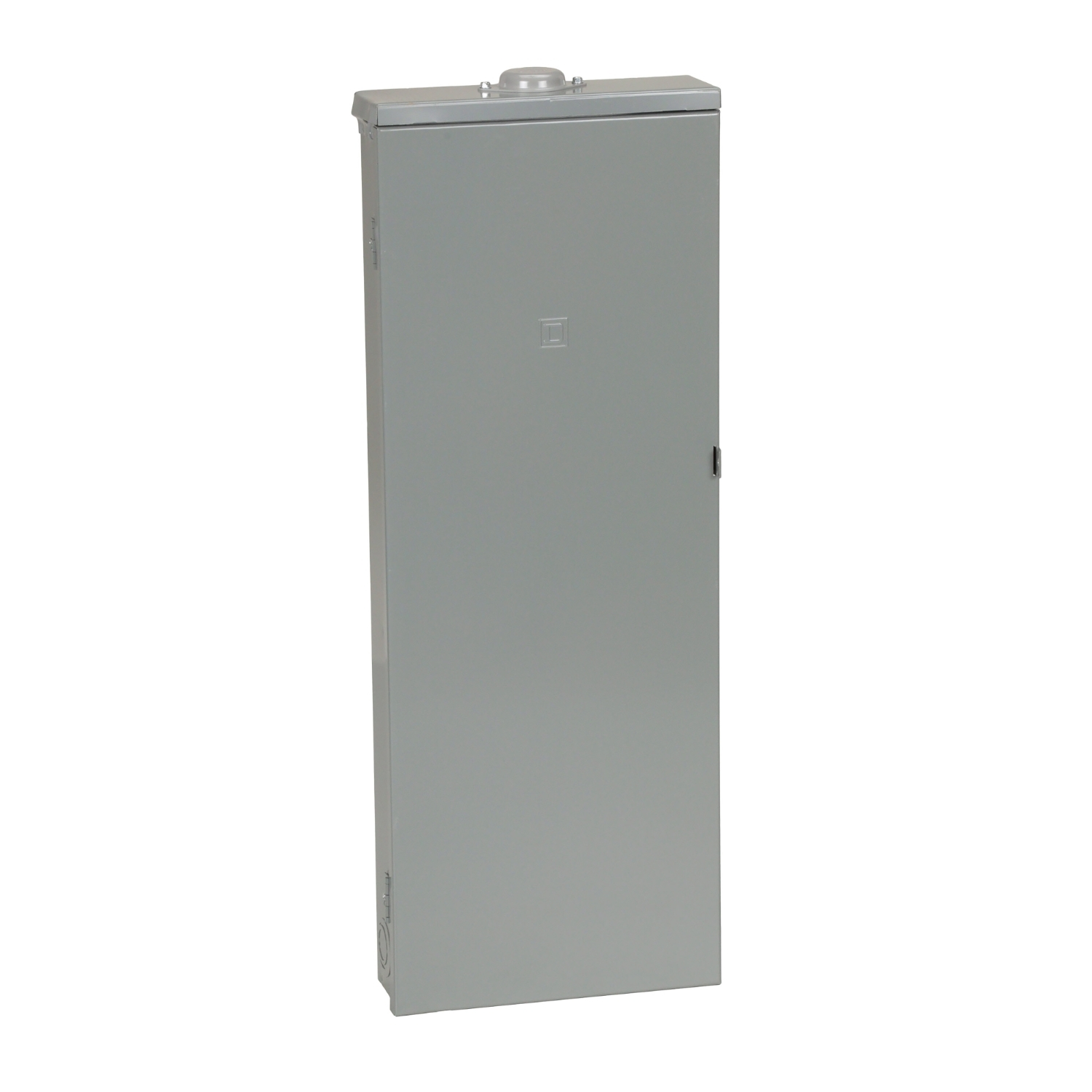

Square D HOM4080L225PRB Load Center 225 Amp 40-Space 80-Circuit NEMA 3R

Product Description

The Square D HOM4080L225PRB Homeline load center features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. These load centers enable the use of a full complement of accessories. Rated for single phase systems and rain proof, these load centers are designed for residential and industrial use to protect electrical systems, equipment and people.

• Features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters
• Convertible mains rated at 225A 120/240 VAC single phase
• Provides 40 spaces in a NEMA 3R rain proof enclosure

Product Highlights

This Homeline load center provides a 10 kA breaking capacity. The box lugs accept a wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire. UL Listed.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM4080L225PRB
• Country of Origin: United States

Technical Specifications

• Type: 1-Phase Convertible Neutral
• Brand: Square D
• Depth: 115 mm
• Width: 375 mm
• Height: 1000 mm
• Current: 225 Amp
• Voltage: 120/240 Volt
• Amperage: 225 Amp
• Material: Tin Plated Aluminium: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: HOMELINE
• Wire Size: 4 AWG to 250 kcmil Aluminum/Copper
• Bus Rating: TIN PLATED ALUMINIUM
• Cable Size: AWG 4...250 kcmil copper;AWG 4...300 kcmil aluminium
• Cover Type: Surface cover
• Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
• Certifications: UL Listed File E-6294
• Conductor Size: 4 AWG-300 kcmil (AL)/4 AWG-250 kcmil (CU)
• Interrupt Rating: 10 kAIC
• Number of Phases: 1 Phase
• Number of Spaces: 40
• Enclosure Material: Steel
• Line Rated Current: 225 A
• Number of Circuits: 80
• Short Circuit Current: 10 kA
• Catalog Number: HOM4080L225PRB
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Phase: 1
• Special Features: Tin plated aluminium: busbar
• Enclosure Size Designation: 14R
• Voltage Rating: 120/240 VAC
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Circuits: 80
• Maximum Number of Spaces: 48
• Main Breaker Type: HOM, QOM2 Main Frame Size
• Breaker Mounting: Panel
• Bus Material: Tin Plated Aluminum
• Main Wire Size: 4 AWG to 250 KCMIL (Copper), 4 AWG to 300 KCMIL (Aluminum)
• Enclosure Type: NEMA 1/3R
• Approval: UL
• Cover Finish: Gray Baked Enamel
• Range Of Product: Homeline
• Product Or Component Type: Load Center
• Electrical Connection: lugs
• Nema Degree Of Protection: NEMA 3R weatherproof enclosure
• [Ue] Rated Operational Voltage: 120/240 V AC
• Bus Rated Current: 225.0 A
• Short-Circuit Current: 10 kA
• Number Of Tandem Circuit Breakers: 40
• Awg Gauge: AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium
• Device Composition: grounding bar (ordered separately)
• Box Number: 14R
• Product Certifications: UL listed file E-6294
• Amperage Rating: 225 A
• Breaker Type: HOM
• Dimensions: 14.75 in W x 4.52 in D x 39.37 in H
• Enclosure Box Size: 14R
• Frequency Rating: 50/60 Hz
• Housing Material: Galvanized Steel
• Mounting Type: Plug-On
• Number of Poles: 1
• Sub-Brand: Square D
• Wiring Configuration: 3-Wire
