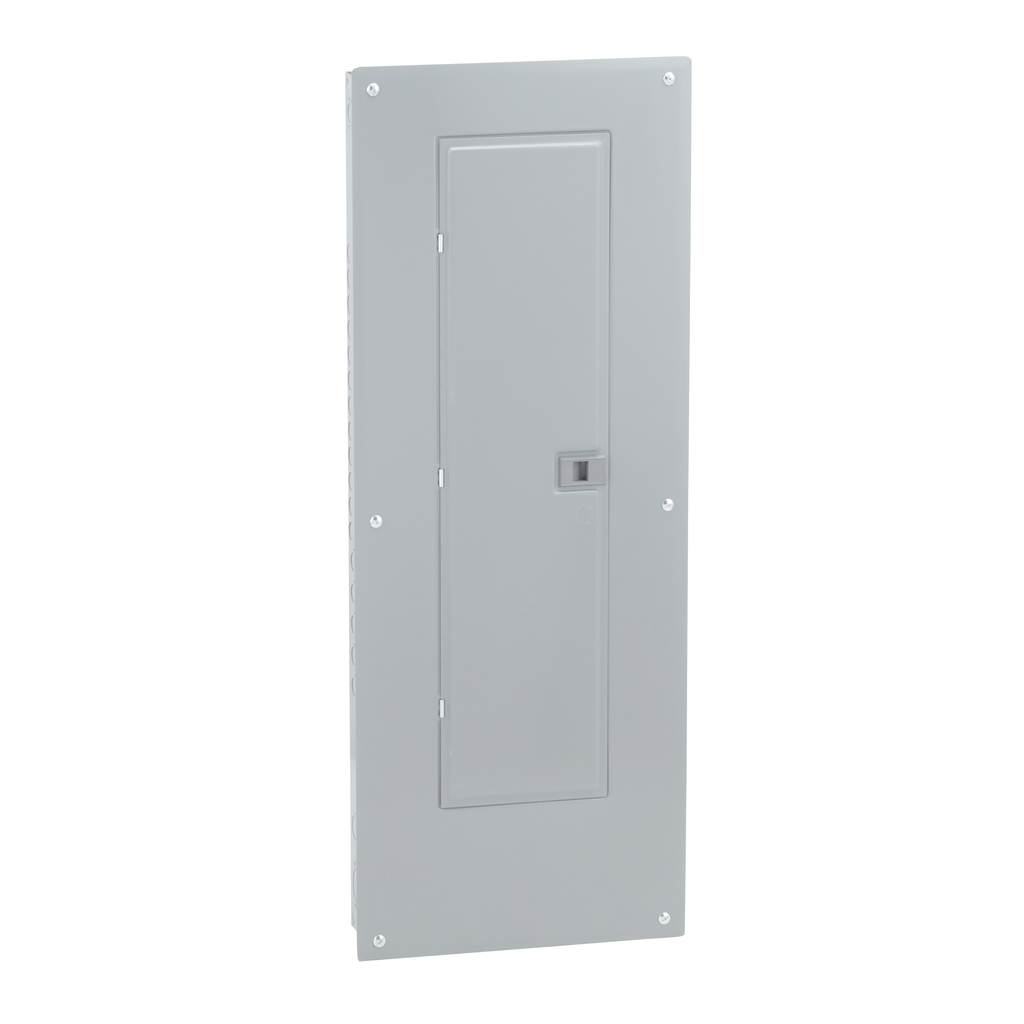

Square D HOM4080L225PGC Load Center 120/240 VAC 225 Amp 40-Space 80-Circuit

Product Description

Square D HOM4080L225PGC is a load center designed for electrical distribution in residential and commercial settings. This load center operates at 120/240 VAC with a current rating of 225 amps. Its capacity includes 40 spaces and supports up to 80 circuits, making it suitable for various electrical systems.

• NEMA 1 indoor enclosure with combination flush/surface cover
• Accepts wire sizes from 4 AWG to 250 kcmil for copper and 4 AWG to 300 kcmil for aluminum
• UL Listed for safety and reliability

Product Highlights

The load center incorporates Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters, ensuring comprehensive protection.

Product Information

Standard Information

• Brand: Square D
• Product Type: Load Center

Technical Specifications

• MPN: HOM4080L225PGC
• Voltage: 120/240 Volt
• Amperage: 225 Amp
• Depth: 3.74 inches
• Width: 14.25 inches
• Height: 39.37 inches
• Number of Spaces: 40
• Number of Circuits: 80
• Interrupt Rating: 10 kAIC
• Cover Type: Combination flush/surface cover
• Enclosure Material: Steel
• Country of Origin: USA
• Certifications: UL Listed File E-6294
