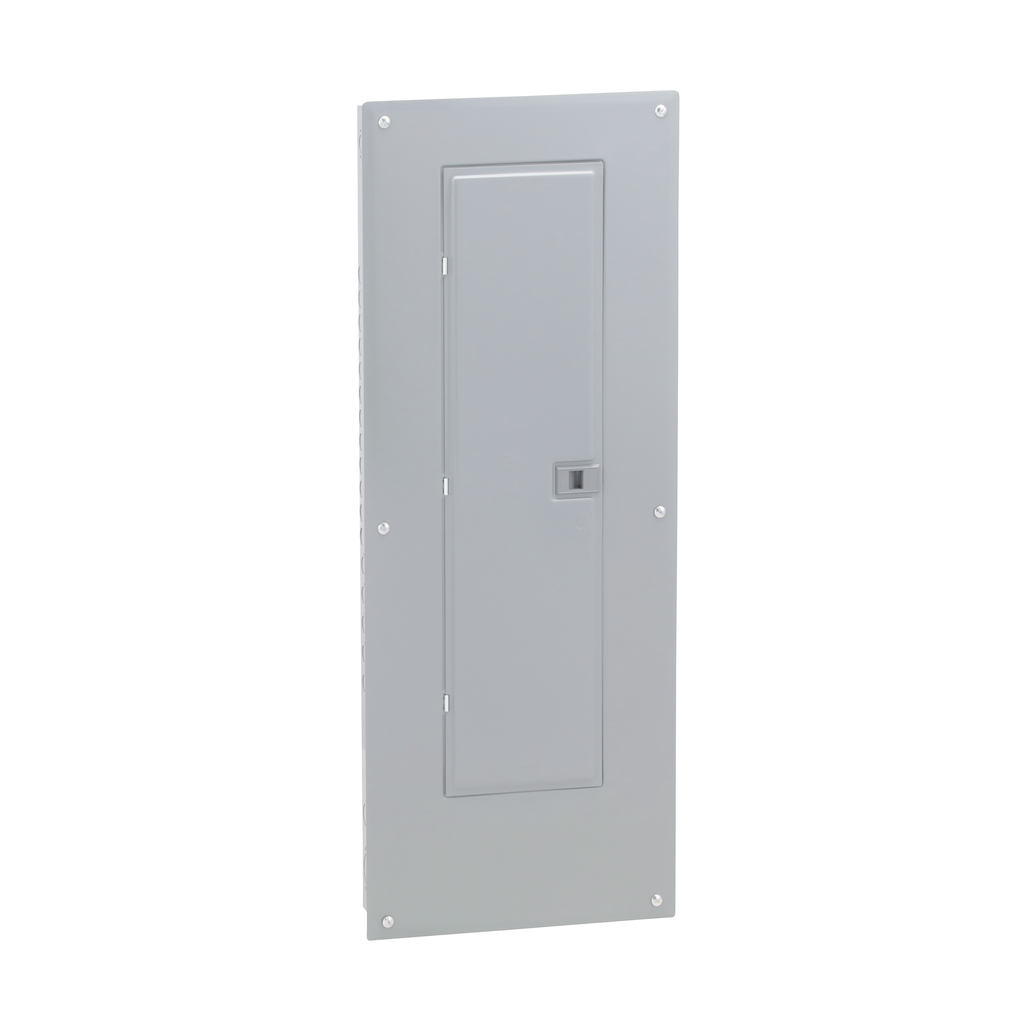

Square D HOM4080L225PC Load Center 225 Amp 40 Space 80 Circuit NEMA 1

Product Description

The Square D HOM4080L225PC is a load center designed for residential and industrial applications. This device handles a maximum current of 225 Amps with a voltage rating of 120/240 VAC. Featuring forty spaces, it supports up to eighty circuits for various electrical needs. This load center is UL Listed and suitable for indoor use, offering a reliable solution for protecting electrical systems, equipment, and personnel.

• Type: Load Center
• Number of Spaces: 40
• Maximum Current: 225 Amps

Product Highlights

This load center includes a combination flush/surface cover and accommodates a wire range from AWG 4 to 250 kcmil for copper and aluminum. It features a NEMA 1 enclosure rating and includes a grounding bar.

Product Information

Standard Information

• Brand: Square D
• Country of Origin: USA

Technical Specifications

• MPN: HOM4080L225PC
• Voltage: 120/240 Volt
• Amperage: 225 Amp
• Enclosure Rating: NEMA 1
• Number of Circuits: 80
• Bus Material: Tin Plated Aluminium
• Interrupt Rating: 10 kAIC
• Dimensions: Height 39.37 inches, Width 14.25 inches, Depth 3.74 inches
