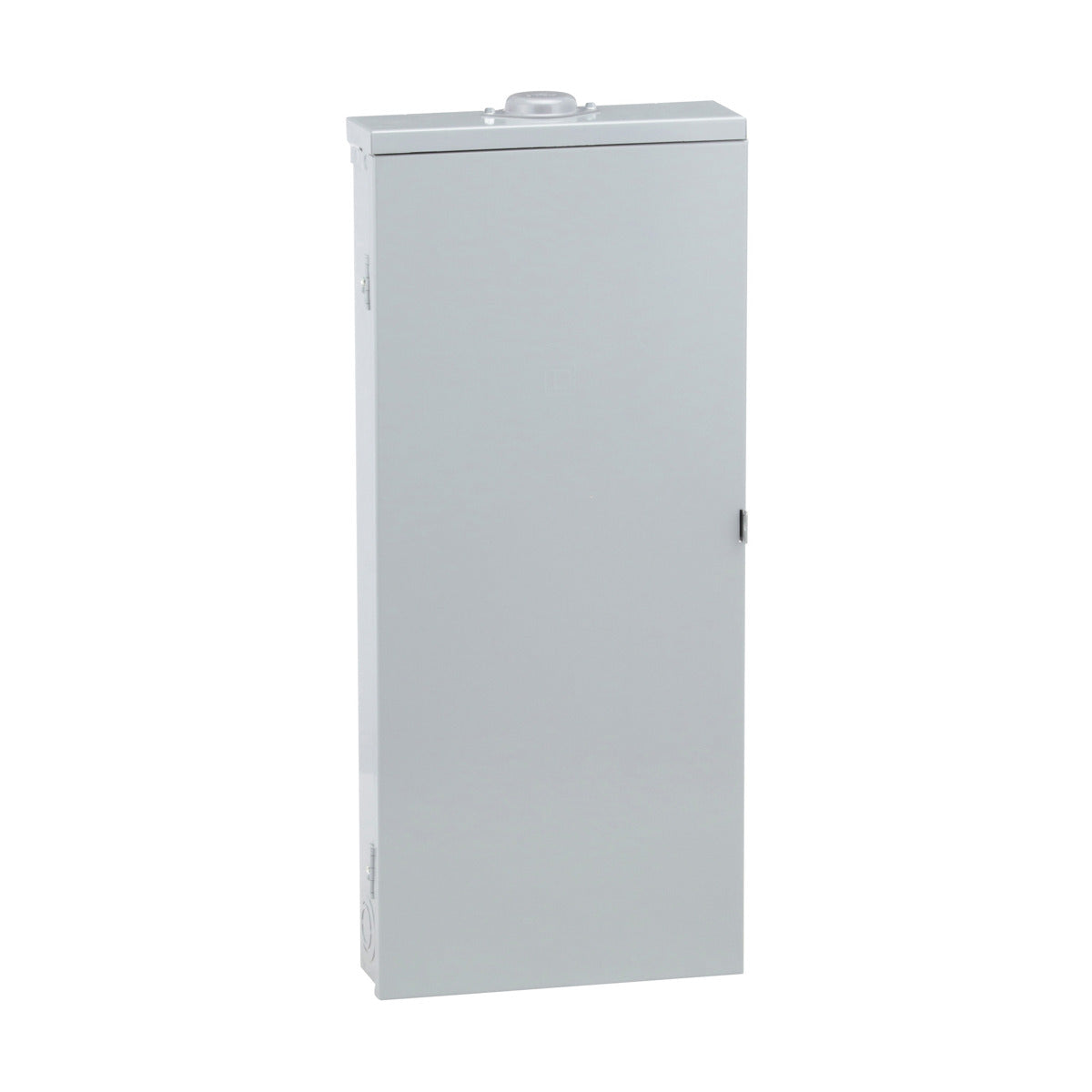

Square D HOM3060M200PRB Load Center 200 Amp 1-Phase 30-Space 60-Circuit NEMA 3R

Product Description

The Square D HOM3060M200PRB Load Center is engineered for reliable electrical distribution. Installed in residential and commercial settings, it incorporates Homeline circuit breakers for efficient power management.

• 30 spaces, 60 circuits with a plug-on neutral main breaker.
• Robust 3R outdoor-rated enclosure ensures durability against environmental conditions.
• UL listed with a 22 kA short-circuit rating for safety and reliability.

Product Highlights

This load center by Schneider Electric is designed to accommodate 200 amp continuous current and operates on a voltage of 120/240 VAC.

Product Information

Standard Information

• Finish: Gray baked enamel
• Country of Origin: USA

Technical Specifications

• Width: 375 mm
• Height: 858 mm
• Depth: 115 mm
• Enclosure Material: Welded galvannealed steel
• Wire Size: AWG 4 - 250 kcmil aluminium/copper
• Phase: 1 Phase
• Bus Material: Tin plated aluminium busbar
